Summary of Contents for BAFANG C965

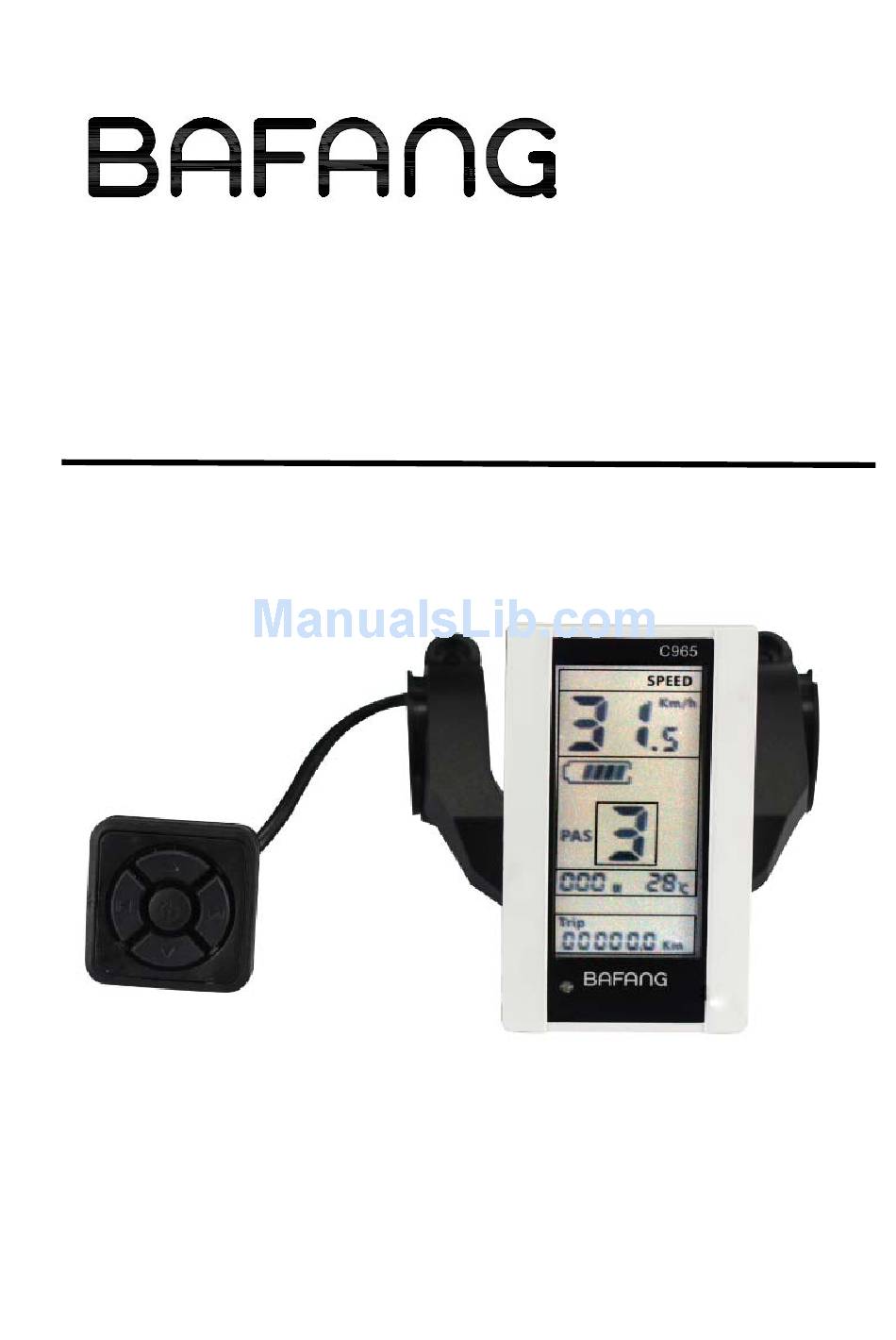

- Page 1 Manual C965...

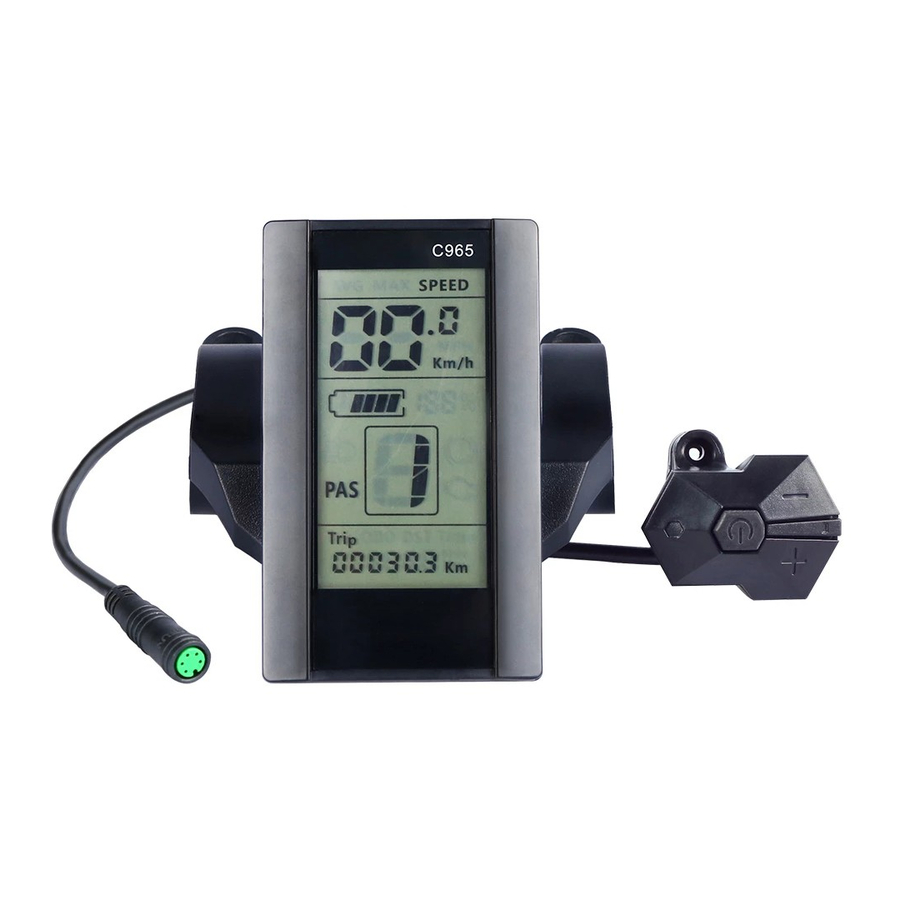

- Page 2 1 Product Name 1.1 The Middle install intelligent LCD Display 1.2 Model:APT12LCD800U 2 Type 2.1 C965 3 Electrical Parameters 24V/36V battery supply Rated operating current : 10mA Max operating current : 30mA Off leakage current < 1uA Buzzer tone > 55db ( 20cm ) Output current to the controller : 50mA Operating temperature : -18～60℃...
- Page 4 5 Features 5.1 Two-way serial communication, 5-way button, very easy to operate. Speed display : AVG SPEED, MAX SPEED, real time SPEED. Kilometer / Mile : Can be set according to customers’ habits. Smart battery indicator : Provide a reliable battery indicator, it will not fluctuate with the motor on/off.
- Page 5 a. >50℃ b. <-20℃ Maintain remind : 800U can indicate the maintain information according to the battery cycle times and the riding mileage(ODO). 800U can estimated the battery cycle life . Low temperature warning : 800U can alarm the user by LCD&BUZZER when the temperature is below freezing.
- Page 6 7 Functional Description 7.1 Power On/Off Press and hold Power button for 1 second can turn on/off the Display. The Display will automatically shut down when there is no operate & ride for 5 minutes. 7.2 ASSIST operating Short press UP/DOWN button can change the ASSIST level. Top ASSIST level is 9, 0 for neutral.
- Page 7 7.3 Speed mode switch Short press LEFT button can change the speed mode, Speed->AVG Speed->MAX Speed. *If there is no operation for 5 seconds, the display will return Speed (Real-Time) display automatically. 7.4 Mileage mode switch Short press RIGHT button can change the mileage mode, Trip->ODO-> Time. 7.5 Headlight/backlight On/Off...
- Page 8 Press and hold UP button for 1 seconds can turn on/off the headlight/backlight. The motor does not work when the battery voltage is low, display still can keep the headlight on for a while when E-bike is in riding. *At the automatic light sensor mode, press and hold the UP button can turn on the backlight / headlights.
- Page 9 set the parameter values, short press LEFT/RIGHT buttons to switch the parameters, short press POWER button to exit the parameter setting state. The display will automatically exit the parameter setting state when there is no operation for 10 seconds. The order of parameter settings are as follows Backlight Kilometer/Mile Light sensitve...
- Page 10 8.3 Light sensitive : The location of speed display symbol bL0, press UP/DOWN button display symbol 0~5 , 0 indicate automatic headlight/backlight OFF. 1~5 indicate automatic headlight/backlight ON. 1 indicates the brightest on (auto turn on the backlight at bright environment), 5 indicates the darkest on (auto turn on the backlight at dark environment).
- Page 11 8.6 Auto off time : The location of speed display symbol OFF, press UP/DOWN button display symbol 1~9, represent automatically shutdown delay time (minutes), default value is 5 minutes. 8.7 Power display : The location of speed display symbol Pod, press UP/DOWN button display symbol 0/1, represent whether to show the power indicate on LCD.
- Page 12 8.9 Wheel diameter : The location of speed display symbol Wd, press UP/DOWN button rotate display the symbol 16/18/20/22/24/26/700C/28/29, value represents the diameter of the wheel (inch). Wrong wheel diameter setting will cause speed abnormal. 8.10 Voltage set : The location of speed display symbol bU0, press UP/DOWN button rotate display the symbol 24V/36V/UbE, UbE means user-defined voltage setting, this parameter can be set by computer.
- Page 13 8.11 Password/Speed limit set : The location of speed display symbol PSd, remind to input passwords, press UP/DOWN buttons to setup password value (0~9), press LEFT/RIGHT buttons to switch the password item, password is 4 digits, the default password is "1919". Press POWER button when password adjustment is completed. Display will return to the Voltage set item if the password is incorrect.
- Page 14 9.1 Display will display symbol MAINTAIN when the ODO accumulated more than setting mileage (this parameter can be set by dealers), the mileage symbol will flash for 4 seconds when the display power on, the buzzer beep for 2 seconds at the same time. 9.2 Display will display symbol MAINTAIN When the battery cycle over setting times, the symbol of battery will flash for 4 seconds when the display power on, the buzzer beep for 2 seconds at the same time.
- Page 15 error 0x21 Motor‘s speed sensor error Beep for 1 second, display 21H on speed position 0x22 BMS communication error Beep for 1 second, display 22H on speed position 0x23 Head light error Beep for 1 second, display 23H on speed position 0x24 Head light sensor error Beep for 1 second, display 24H on speed position...
- Page 16 There are two installation methods for the clamp, forward or backward, according to user’s demands. Different assembly methods will need different cable length. Clamps suit for 3 size of handlebar diameter, 31.8mm, 25.4mm, 22.2mm, there are different transfer rings for 25.4mm and 22.2mm, transfer ring must assembly in right direction, see the figure below, pay attention to the green arrow position.
- Page 17 12 Warning There is waterproof membrane inside the sound hole. Don’t insert sharp object into the hole, it will causes waterproof failure. Sun exposure may cause high temperature indicate, this is not display’s failure. 13 Output wire instructions 1、 Red wire : Anode(24v/36v) 2、...
- Page 18 3 level 5 level 9 level No power assist 15 Certification CE / IP65 (water proof) / ROHS.
