Summary of Contents for BAFANG DP C230.CAN

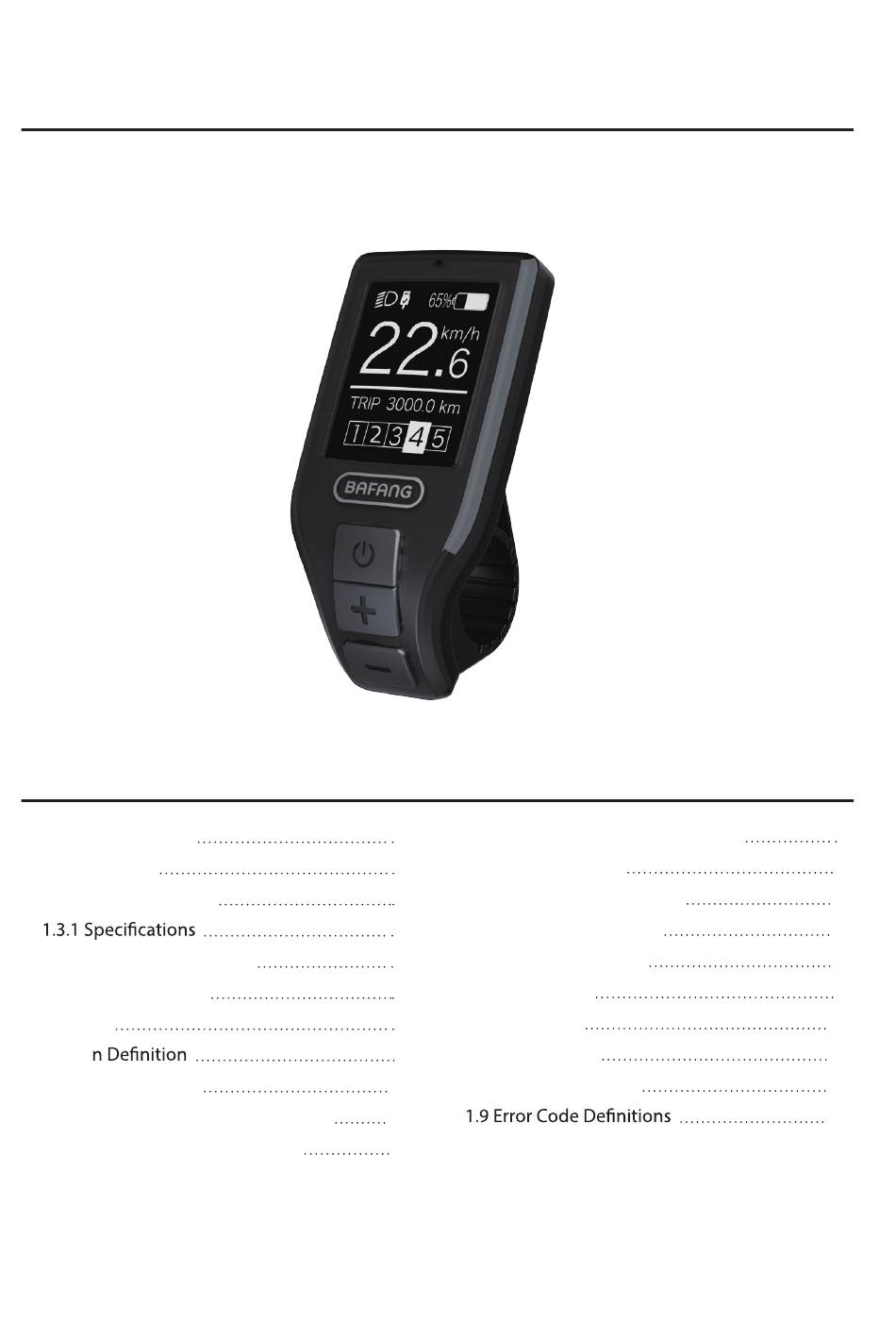

  • Page 1: Table Of Contents

    DP C230.CAN CONTENTS 1.1 Important Notice 1.7.3 Lights & Display Backlight 1.7.4 Walk Assist 1.2 Introduction 1.7.5 Usage Information 1.3 Product Description 1.7.6 Battery Capacity 1.3.2 Functional Overview 1.7.7 USB Charging 1.7.8 Service 1.4 Display Installation 1.8 Properties 1.5 Display 1.8.1 “Setting”...

  • Page 2: Important Notice

    However, it is highly recommended that you • Warranty/guarantee does not cover wear avoid submerging the display under water. during normal use and ageing. • Do not clean the display with a steam jet, high-pressure cleaner or water hose. 1.2 INTRODUCTION • Model: DP C230.CAN BUS...

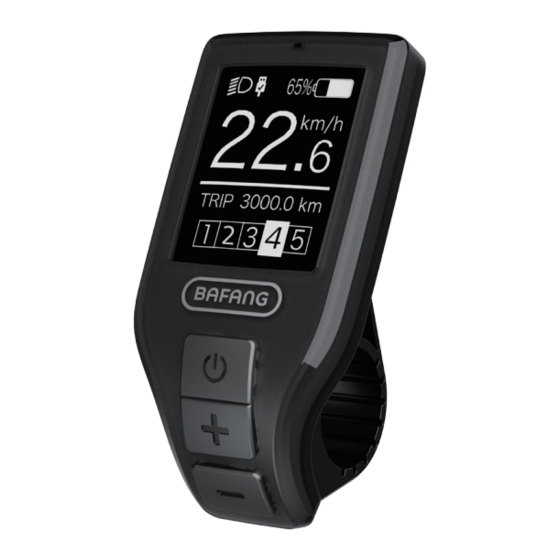

  • Page 3: Product Description

    1.3 PRODUCT DESCRIPTION • Performance indicator. 1.3.1 • Motor power indicator. • Operating temperature: -20 ℃~45℃ • Total journey time display. • Storage temperature: -20℃~50℃ • Odometer (including single-trip • Waterproof: IP65 distance, total distance and remaining • Bearing humidity : 30%-70% RH distance).

  • Page 4: Display

    1.5 DISPLAY The display shows the icon if the lights are on. If an external USB device is connected, the icon is displayed. Current speed. Usage Information: Trip distance (TRIP) - Total distance (ODO) - Top speed (MAX) - Average speed (AVG) - Range (RANGE) - Motor power (POWER) - Energy Consumption (CAL) - Travel time (TIME).

  • Page 5: Normal Operation

    1.7 NORMAL OPERATION 1.7.1 Switching the System ON/OFF Press and hold the button (>2 s) to turn on the system. Press and hold the button (>2 s) shutdown time can be adjusted with the " " function (see page 9). If the password function is enabled, you must enter the correct password to use the system.

  • Page 6: Walk Assist

    1.7.4 Walk Assist Walk Assist can only be activated when the ebike is at a standstill. Activation: Press the button repeatedly until the icon appears and then hold down the motor will stop automatically. 1.7.5 Usage Information Briefly press the (<0.5 s) button to change the usage information displayed.

  • Page 7: Battery Capacity

    1.7.6 Battery capacity The indicator displays the current battery capacity. When the battery is fully charged, it shows meaning that you should charge the battery immediately. 1.7.7 USB charging When an external device is connected to the display via the USB port, the USB charging indicator displays the icon and starts to charge the device (max.

  • Page 8: Properties

    1.8 PROPERTIES 1.8.1 “Setting” After the display is turned on, press the button at the same time (>2 s), to Press the button (<0.5 s) to select access the “PROPERTIES” menu. By pressing "Setting", and then briefly press the button (<0.5 s), you can select: “Setting”, “Information”...
  • Page 9 1.8.1.3 “Sensitivity” Automatic light sensitivity Press the button (<0.5 s) to select “Sensitivity” in the “Setting” menu, and then press the button (<0.5 s) to access it. Then with the button choose a sensitivity level between 0 and 5 and press button (<0.5 s) to save and return to 1.8.1.6 “Vibration”...

  • Page 10: Information

    “Speed Limit” is displayed for information 1.8.2 “Information” only and cannot be changed. After the display is turned on, press the button at the same time (>2 s), to access the “PROPERTIES” menu. Press the button (<0.5 s) to select button (<0.5 s) to access the following information: 1.8.2.3 Battery Info...
  • Page 11 1.8.2.6 Torque Information Content Explanation Press the button (<0.5 s) to select Hardware Version “Torque Info” and then press the button (<0.5 s) to access it. Press the button Software Version (<0.5 s) again to return to the "Information" menu. NOTE: If no data is detected, "--"...
  • Page 12 The BESST tool is Bafang's diagnostic device that a trained ebike mechanic can use to read and repair the electrical system. If your ebike mechanic doesn't have a BESST tool, ask them to contact Bafang or FLIT.
  • Page 13 Error Declaration Troubleshooting 1. Check all connectors from the battery are correctly Error with the temperature connected to the controller. sensor inside the battery 2. If the problem persists, change the battery. 1. Allow the ebike to cool down and restart the The protection temperature system.
  • Page 14 Error Declaration Troubleshooting 1. Check that all connectors are connected correctly. 2. Connect the ebike to the BESST system to see if the speed signal can be read by the BESST tool. Speed signal of the torque 3. Change the display to see if the problem is solved. sensor has an error 4.
  • Page 15 Error Declaration Troubleshooting Using the BESST Tool, update the controller to see if WDT circuit is faulty this resolves the problem. If not, change the controller or contact your supplier. Total voltage from the battery is Change the battery. too high Total voltage from the battery is Charge the battery.
