Summary of Contents for BAFANG C961

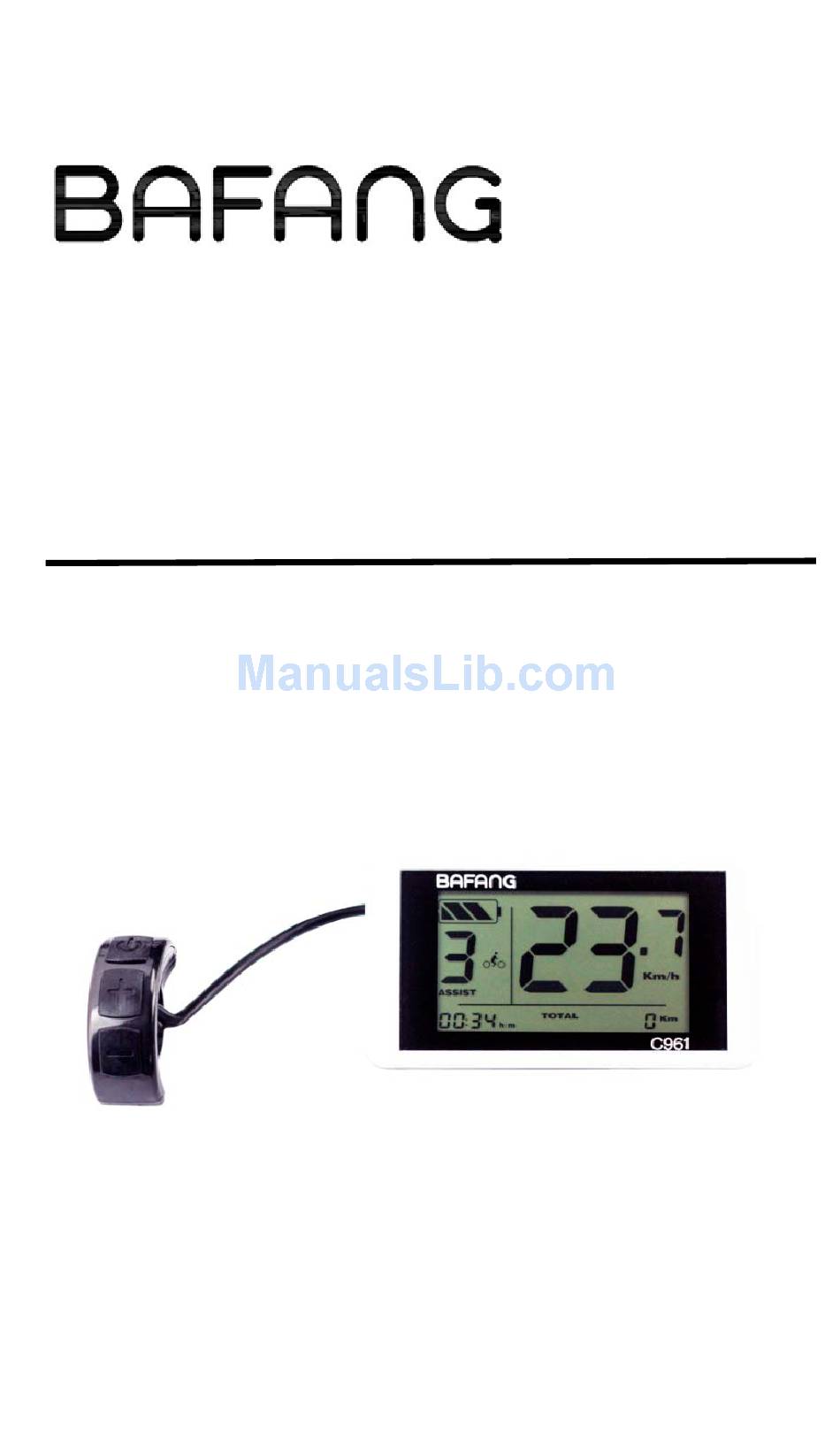

- Page 1 Manual C961...
-
Page 2: Table Of Contents
Contents Preface···································································· 3 Appearance & size····················································· 4 Material & color··················································· 4 Function & button·······················································4 Function·····························································4 Interface·····························································5 Button································································5 Attentions································································· 6 Installation································································ 6 ON/OFF····························································· 6 Walking assist····················································· 7 Backlight···························································· 7 Level································································· 7 Capacity·····························································7 Distance·····························································8 TRIP clearance····················································8 Error code·························································· 8 Capacity·····························································8 Setting····································································· 9 Preparation·························································9 Setting·······························································... - Page 3 Time·························································· 11 Advanced setting······················································11 Wheel size························································ 13 Sleep time interval··············································13 Level amount···················································· 13 FAQ·······································································14 Warranty·································································14 Wire definition··························································14 Software version······················································ 15 Attached list···························································· 16 ‐ 2 ‐...
-
Page 4: Preface
Preface Dear, Please read this manual before using it. ‐ 3 ‐... -
Page 5: Appearance & Size
Appearance and size Material & color C961 made of ABS is able to work well under -20℃ to 60℃. Available color: Black and white. Picture and size (Unit: mm) Function & button Function C961 gets many functions for your enjoying riding. -
Page 6: Interface
◆ Assist walking ◆Backlight ◆Error code ◆Levels setting Interface Power Speed Mode Level Unit Walking Distance Time Unit TRIP Button C961 gets three buttons: ‐ 5 ‐... -
Page 7: Attentions
Attention: Don’t plug in/out this display when power on. Avoid collision. Keep the membrane for waterproof performance. Don’t abuse parameters resetting, in case out of working. Call service if display out of working Installation Install display on handlebar and adjust it’s location. Plug it into controller when power off. -
Page 8: Walking Assist
Walking assist Long press (-), to start assist walking. highlights on scree. Vehicle goes at 6km/h. Only in case of pushing, can this function be used. Please don’t abuse when riding. Backlight Long pree (+) to switch on backlight on scree, and front light on as well if front light available. -
Page 9: Distance
Percentage of capacity for sections: <20% 20%-40% 40%-60% 60%-80% 80%-100% Frame flashes at 1 Hz when low power. Distance Press to shift TRIP and TOTAL. TRIP clearance Power on, long press and (-) to clear TRIP distance. Error code When something goes wrong with system, error code will flash on scree. -
Page 10: Setting
Vehicle stops working in case of any error. Only when error is gone, can vehicle work again. Setting Preparation Makes sure good connection then power on. Setting Long press to start display. Long pree press (+) and (-) to setting mode. Unit Press (+) to change unit Km or Mile. -
Page 11: Speed Limit
Speed limit Limit range from 15Km/h to 40Km/h. Press press (+) or (-) to change the limit. Press to save and skip to backlight setting. Backlight Press press (+) or (-) to change the brightness, range from 1 to 8. Press to save and skip to time setting. -
Page 12: Time
Time Press (+) or (-) to change the hour, then press minute setting, press (+) or (-) to change the minute. Press to save and exit. Setting effects after restart. Advanced setting Long press to start display. Long pree press (+) and (-) to setting mode, Then press (+) and (-) and no release, meanwhile press... -
Page 13: Wheel Size
Wheel size setting Press (+) or (-) to change the wheel size. Range from 8 to 32 inch. Press to save and skip to sleep time interval setting. Sleep time interval setting Press (+) or (-) to change the time, range from 0 to 60 munites. -
Page 14: Level Amount
Level amount setting Press (+) or (-) to change the amount, range from 2 to 9 levels (excluding level 0). Press to save and exit. Setting effects after restart. ‐ 13 ‐... -
Page 15: Faq
Q: Why can’t it be on? A: Please check power on/off and wires. Q: What to do to when error? A: Please check the probable problem according to the error code list. Please call service if user can’t remove error. Warranty Under warranty: 1\ Warranty term 24 months. -
Page 16: Software Version
Software version This C961 adopts Bafang protocol V4.0, and only comminate with controller installed this protocol. Error may happen if with other protocol. ‐ 15 ‐... -
Page 17: Attached List
Attached list: Error code Definition Throttle no homing Throttle abnormality Low voltage protection Over voltage protection Hall sensor abnormality Phase line abnormality Controller overheat Temperature sensor in controller abnormality Current sensor abnormality Speed sensor abnormality Communication abnormality in BMS ‐ 16 ‐...
