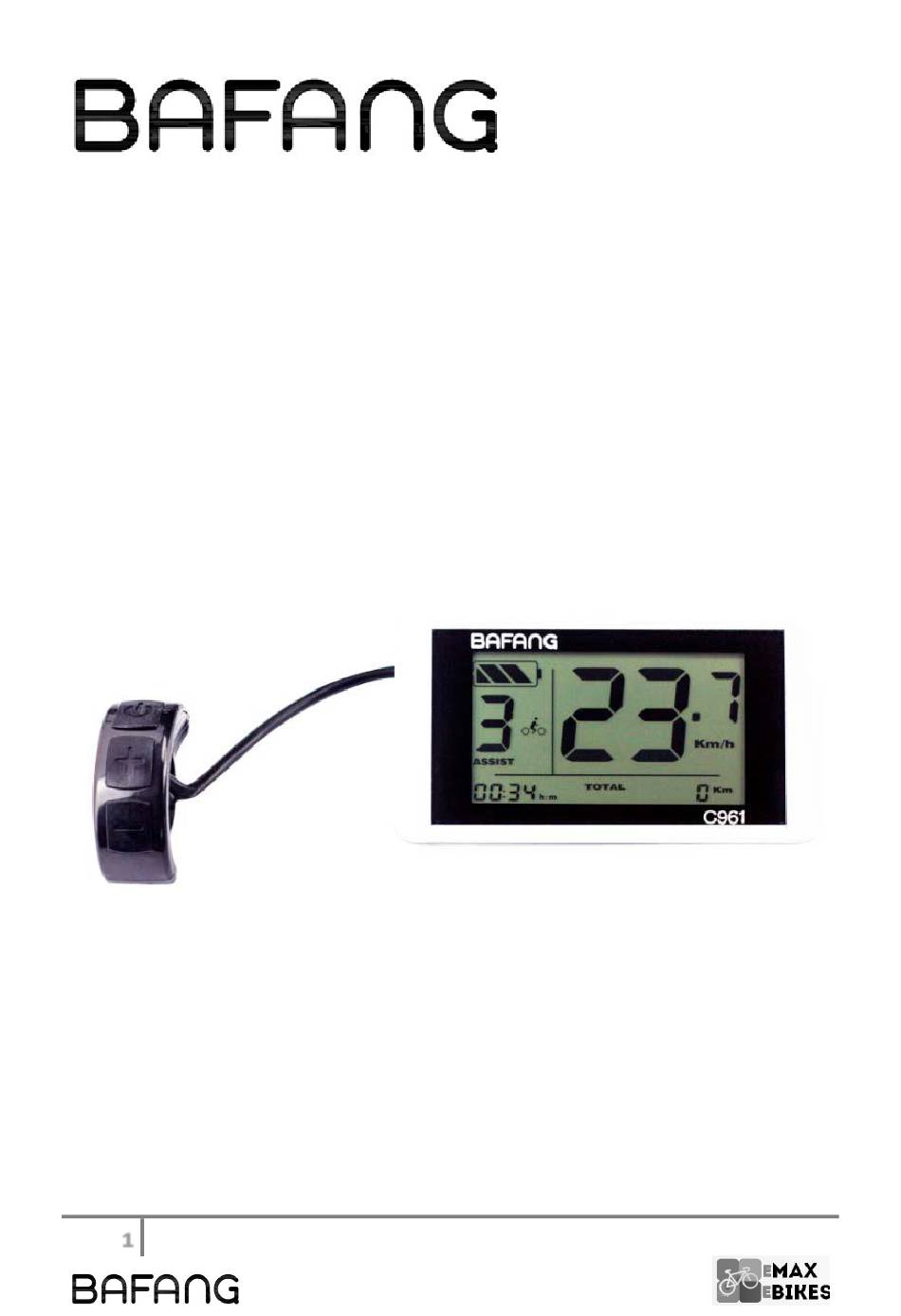

- Page 1 Manual C961 Modified for eMax eBikes...
-
Page 2: Table Of Contents
Contents Appearance & size····················································· 3 Material & colour··················································· 3 Function & button·······················································3 Function·····························································3 Interface·····························································4 Button································································4 Attentions································································· 4 Installation································································ 5 ON/OFF····························································· 5 Walking assist····················································· 5 Backlight···························································· 5 Level································································· 5 Capacity·····························································5 Distance····························································5 TRIP clearance····················································6 Error code·························································· 6 Settings·····································································7 Preparation·························································7 Setting······························································· 7 Unit····························································· 7 Speed limit··················································7 Backlight····················································... -
Page 3: Material & Colour

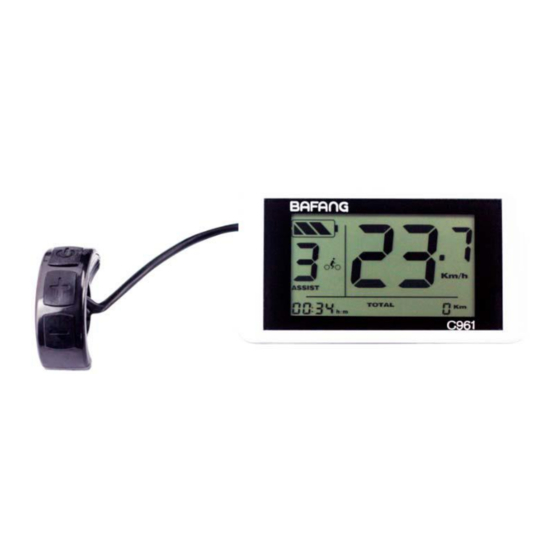

Material & Colour The C961 made of ABS is able to work well under a temperature range of -20℃ to 60℃. Available Colours: Black and white. Size: Picture: The C961 Display Unit in White Function & Buttons Function The C961 display has many functions to assist with your riding experience including: ... -
Page 4: Interface
Interface Power Mode Speed Level Walking Time Buttons Mode/Power Attention: Don’t plug in/unplug this display when power is on. Avoid collision or heavy impact to display. Keep the plastic membrane for increased water resistance. Don’t abuse programing parameters if display not functioning. ... -
Page 5: Installation
Installation Install display on handlebar and adjust its location to suit the riders seated position. ON/OFF Long press Mode / Power to start display. Long press Mode / Power again to switch off. Note: Display turns off automatically after no operation of motor for ten minutes. Walking assist Long press (-) to start assist walking. -
Page 6: Trip Clearance
TRIP clearance Power on, long press and (-) to clear TRIP distance. Error code When something goes wrong with system the error code will flash on screen. Details of error codes can be found in the appendix. Settings Preparation Connect the battery and power on the display. Settings Mode Long press (+) and (-) to enter settings mode. -
Page 7: Speed Limit
Speed limit Limit range from 15Km/h to 50Km/h. Press (+) or (-) to change the limit. Press to save and skip to backlight setting. Backlight Press (+) or (-) to change the brightness of the backlight. Range from 1 to 8. Press to save and skip to time setting. -
Page 8: Advanced Setting
Advanced settings Long press to start display. Long press (+) and (-) to setting mode, Then press (+) and (-) without releasing while pressing eight times, to advanced setting. Wheel size setting Press (+) or (-) to change the wheel size. Range from 8 to 32 inch. Press to save and skip to sleep time interval setting. -
Page 9: Faq
4. Wire torn or damaged. 5. Damage result from accidents such fire or natural disaster. 6. Warranty period over. Software version This C961 adopts Bafang protocol V4.0 and only communicates with controller installed this protocol. Error Code List: 04 Throttle non responsive 05 Throttle abnormality.
