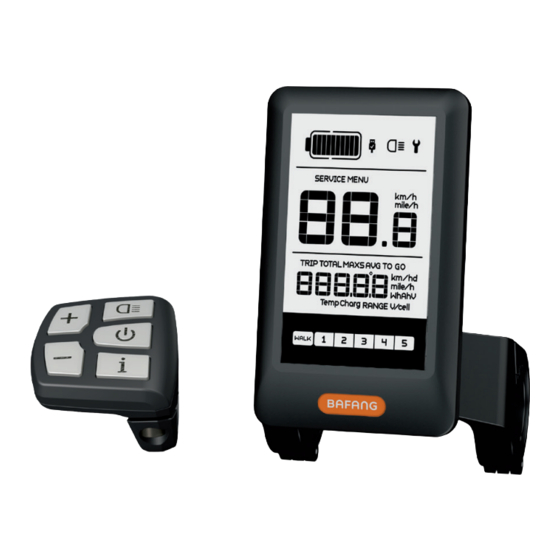

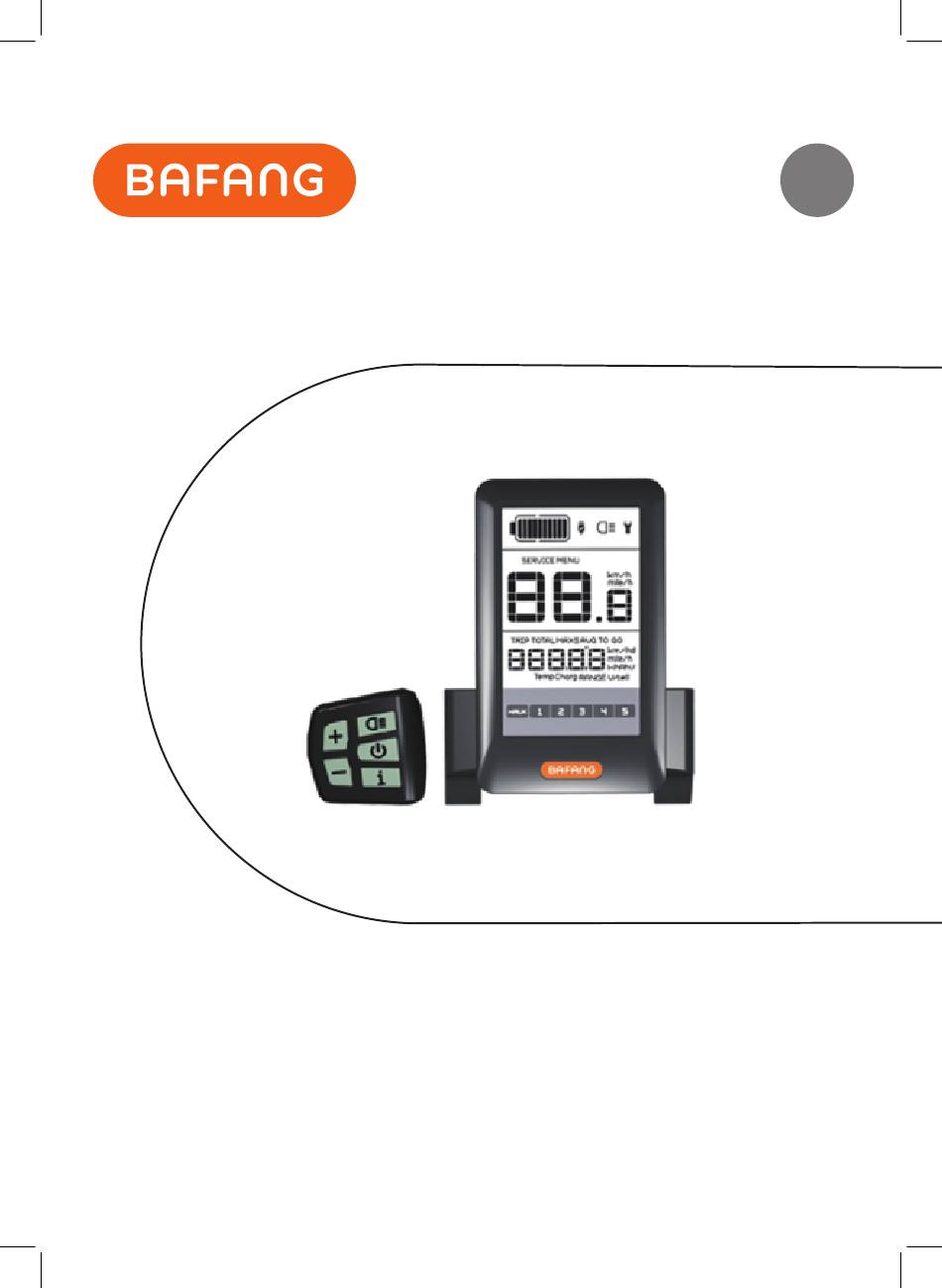

- Page 1 USER MANUAL DP C10.UART...
-
Page 2: Table Of Contents
Note...............6 Overview of Product ...........7 1 Specifications and Parameter of the Display....7 2 Appearance and Dimensions........7 3 Funcion Overview and Key Definitions......8 4 Normal Operation..........10 5 Parameter Setting...........12 6 Error Code Definitons..........19 Serive and Warranty Policy........20 USER MANUAL DP C10.UART... - Page 3 USER MANUAL DP C10.UART...
-
Page 4: Important Notice
IMPORTANT NOT ICE IM PORTANT NOTICE •This product conforms to <<The Technical Specification and Standard of design for BAFANG's electrical component>> and is based on << BAFANG Communication Protocol-V5.6>>;The matching kits also should be compatible with above mentioned protocol and other BAFANG's mpatible protocol. -
Page 5: For Your Safety
USER MANUAL DP C10.UART... -
Page 6: Note
Pluging or displuging the HMI with power • on is forbidden. Please contact the seller for help when any error codes show on the HMI or any failure come . Please use this product in the given circumstance indicated in the manual. USER MANUAL DP C10.UART... -
Page 7: Overview Of Product
BAFANG's electrical component>> and is based on << BAFANG Communication Protocol-V5.6>> The matching kits also should be compatible with above • mentioned protocol and other BAFANG's mpatible protocol. 2 Appearance and Dimensions Materials and Dimensions • The shell is made of PC. -
Page 8: Funcion Overview And Key Definitions
A warning that there is no assistance (by the motor). If the will also be displayed when the accumulated total rider is walking and pushing the e-bike, will riding distance exceeds the set value. be displayed. USER MANUAL DP C10.UART... - Page 9 Maintenance warning: When there is a need for maintenance the symbol will be dis- played (riding distance or the number of battery charge cycles exceed the set value, function can be deactivated) down headlight on/off mode USER MANUAL DP C10.UART...
-
Page 10: Normal Operation
The lowest level is Level 1, the highest Level 5. When the display is on, the default mode is Level 1. When there is no numeric mode display, there is no power assistance. Selecting the level for motor assistance Switching between displays USER MANUAL DP C10.UART... - Page 11 Switch between power assistance and walk assistance mode Display backlight, headlight and taillight There are 5 levels of backlight brightness that can be selected by the user. USER MANUAL DP C10.UART...
-
Page 12: Parameter Setting
When the HMI is off,please just plug the USB cable to HMI charging port and then switch on HMI for charging; and when the HMI is on,please just plug the USB cable to HMI charging port for charging.The maximum charging current is 500mA。 USER MANUAL DP C10.UART... - Page 13 In the parameter setting state, when the parameter you want to set begins to flash, press to adjust the parameter value. Briefly press to switch between the parameters to be set. Press twice (interval < 0.3 seconds) to exit the submenu. USER MANUAL DP C10.UART...
- Page 14 When the speed field displays bL0, use to choose a figure between 0 and 5. The higher the chosen figure, the higher the light sensitivity. After this setting, briefly press (< 0.3 seconds) to enter the setting interface of backlight brightness. USER MANUAL DP C10.UART...
- Page 15 • When the number of battery charge cycles ex- ceeds 100 (can be customized by the manuf- acturer), the display will the symbol . When the display is started up, the sign for USER MANUAL DP C10.UART...
- Page 16 (< 0.3 seconds) and follow the instruction to clear the maintena- ance. to enter the setting interface of speed limit. If resetting the wheel size is needed,please log in BESST and foll- ow the instruction to set. USER MANUAL DP C10.UART...
- Page 17 BESST and follow the instru- ction to set. • Only when communication has been establis- hed between the battery and the controller the following information will be displayed, other- wise the display will only show "- - - -". USER MANUAL DP C10.UART...
- Page 18 ..voltage cell n 5.13 Error code record E00-E09 indicate the error codes stored, and the maxium up to 10 screen shots and E00 present the latest error. USER MANUAL DP C10.UART...
-
Page 19: Error Code Definitons
Error Code Definitions The DP C10.UART can show e-bike faults. When a fault is detected, the icon will be displayed. In the speed field one of the following error codes will be displayed: Error Code Error Description Error-shooting Method “03”... -
Page 20: Serive And Warranty Policy
SERVICE AND WARRANTY POLICY SERVICE AND WARRANTY POLICY Suzhou Bafang Motor Science-Technology Co., Ltd BAFANG reserves the right to repair or replace faulty (hereinafter referred to as the BAFANG) guarantees: components, and is only obliged to repair or replace During the warranty period, BAFANG gives warranty them. - Page 21 Suzhou Bafang Electric Motor Science-Technology Co., Ltd No.9 Heshun Rd Suzhou Industrial Park Suzhou 215122 CN bf@szbaf.com www.szbaf.com...
