WALL
CONTROLLER
Operation Manual
Model Numbers
LR7-1W (White)
LR7-1G (Grey)
IMPORTANT NOTE:
Please read this manual carefully before installing or
operating your air conditioning unit.

Advertisement

Table of Contents
loading

Related Manuals for ActronAir LR7-1W

Summary of Contents for ActronAir LR7-1W

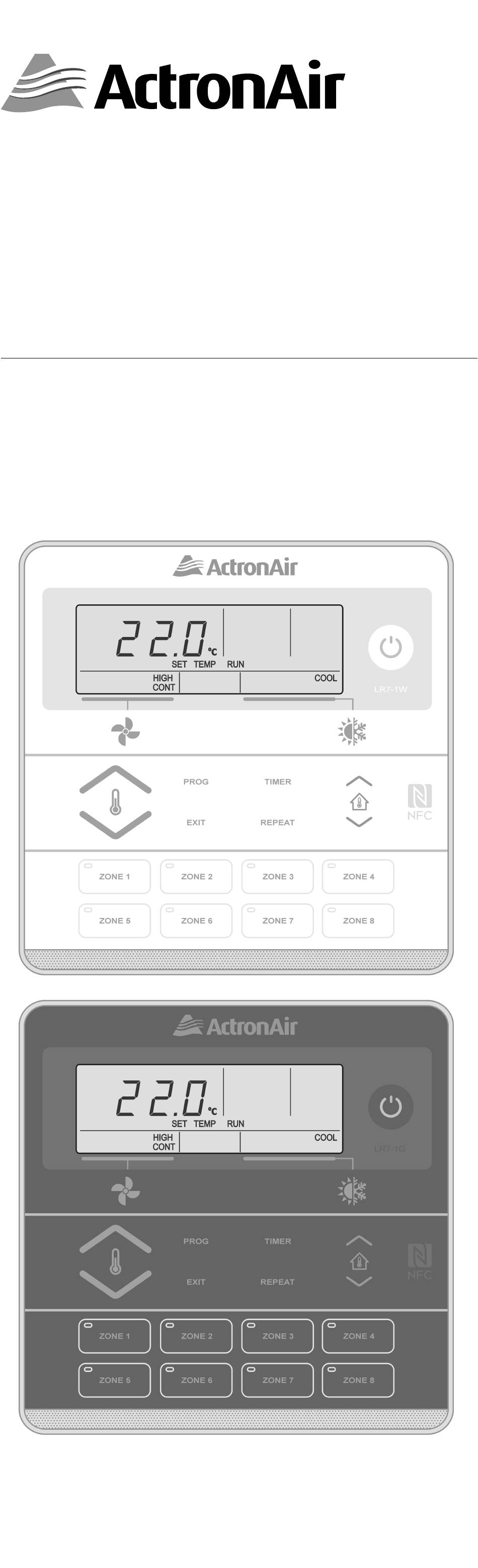

  • Page 1 WALL CONTROLLER Operation Manual Model Numbers LR7-1W (White) LR7-1G (Grey) IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit.

  • Page 2: Table Of Contents

    Return to Home Page Operation Manual LR7 Wall Controller Table of Contents 01. General Information ..........02. Waste Electrical and Electronic Equipment Disposal Guideline ....... 03. Maintenance ............04. Operational Precaution .......... 05. System Information ..........06. Features ..............07. Wall Controller Functions ........

  • Page 3: General Information

    ActronAir accept liability for the correct operation of the final equipment / system. Your ActronAir air conditioning unit is one of the most advanced and innovative products in the market. Its operation is specified in the technical documentation supplied with the product or which can be downloaded from our website: www.actronair.com.
  • Page 4 • This control interface must be installed in a location that complies with the temperature and humidity limits specified in this manual. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without prior notice. Please check with ActronAir Service Department on toll free number: 1800 119 229.

  • Page 5: Waste Electrical And Electronic

    6. Do not pull apart or attempt to service the control interface, should you need service to the device, contact ActronAir Service Department on 1800 119 229. 04. Operational Precautions Read all instructions in this manual before operating the air conditioning unit.
  • Page 6 Return to Home Page Operation Manual LR7 Wall Controller be supervised to ensure that they do not play with the appliance. RETURN AIR FILTER: The air conditioner must never be operated without a return air filter as this will allow a build up of dust and other contaminants on the indoor coil.

  • Page 7: System Information

    Return to Home Page Operation Manual LR7 Wall Controller 05. System Information Air Conditioner Model No. Serial No. The air conditioner model and serial number is situated on the access panel of the outdoor unit bottom left corner. Wall Controller Model No.

  • Page 8: Wall Controller Functions

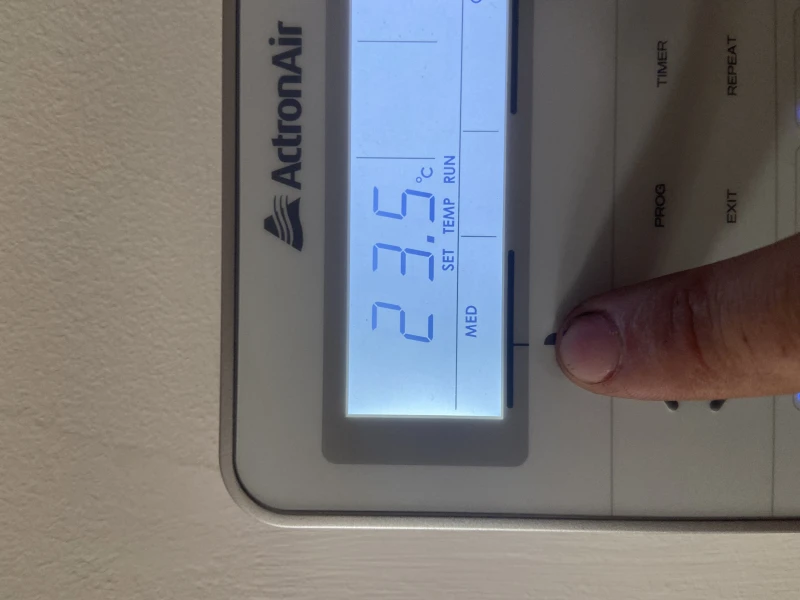

    Return to Home Page Operation Manual LR7 Wall Controller 07. Wall Controller Functions LCD Display Displays the setting and operation conditions (See next page for details). Program Button* For setting the clock and for entering the 7-Day time clock menu. Fan Control Button Changes fan speed (high, medium and low).
  • Page 9 Return to Home Page Operation Manual LR7 Wall Controller 15 Day Indicator Display the day of the week when the time is shown and which day is selected for programming. 16 Time Clock Indicator 17 Event Indicator Indicates which event of the Time Clock is being set. 18 Prog Indicator Indicates when controller is currently in Program Menu.

  • Page 10: Turning Air Conditioner On/Off

    Return to Home Page Operation Manual LR7 Wall Controller 08. Turning Air Conditioner On/Off NOTE The air conditioning system will re-start on your last settings and operating mode e.g. 22 C set temperature, AUTO mode, HIGH fan speed. The display will show the Set Temperature, Fan Speed, Fan Mode and Mode of Operation.
  • Page 11 Return to Home Page Operation Manual LR7 Wall Controller 10.02. Cooling Operation 1. Press the button until COOL appears on the display. 2. Set the desired temperature by pressing either the buttons. 3. Adjust the desired Indoor Fan speed by pressing button.

  • Page 12: Timer Operation

    Return to Home Page Operation Manual LR7 Wall Controller 11. Timer Operation NOTE Setting up the timer operation can only be made via Wall Control 1 (C-1). When you press TIMER button on Wall Control 2 or 3, it will show C-2 or C-3 on the display.

  • Page 13: Backlight Function

    Return to Home Page Operation Manual LR7 Wall Controller 11.02. ON Timer 1. Press the TIMER button to enter timer menu. NOTE The system’s status must be in the Off position to set an ON timer. 2. Press the buttons to select the desired time for the system to turn On.

  • Page 14: Program Menu

    Return to Home Page Operation Manual LR7 Wall Controller 12.02. Permanently Turn On LCD Backlight NOTE By default, the LCD Backlight is programmed to turn off 15 seconds after a button has been last pressed. 1. Press and hold the REPEAT button for 4 seconds. symbol appears, release the REPEAT 2.
  • Page 15 Return to Home Page Operation Manual LR7 Wall Controller 13.01.02. Example of Time Clock Operation 6:00am 6:00am 6:00am 6:00am 6:00am 7:00am 8:00am TIME EVENT 1 10:00am 10:00am 10:00am 10:00am 10:00am 9:00am 11:00am TIME 4:00pm 4:00pm 4:00pm 4:00pm 1:00pm -:-- -:-- TIME EVENT 2 10:00pm 10:00pm 10:00pm 10:00pm 11:00pm...
  • Page 16 Return to Home Page Operation Manual LR7 Wall Controller 13.01.04. Setting the Programmable Time Clock 1. Press the PROG button to enter program Menu. TIME CLOCK and PROG indicators will be illuminated in the screen. 2. Press the PROG button to enter the time clock menu.
  • Page 17 Return to Home Page Operation Manual LR7 Wall Controller 4. Press the PROG button to move to Event 1 Off time. Press the button to adjust the time in 15 minutes increments. 5. Press the PROG button to move to Event 2 On time.
  • Page 18 Return to Home Page Operation Manual LR7 Wall Controller 13.01.05. Repeating a Day’s Events and Times This feature allows you to automatically repeat the previous days, events, and times, into the succeeding days. 1. Proceed to the day you wish to copy the programmed events and times.
  • Page 19 Return to Home Page Operation Manual LR7 Wall Controller 13.01.07. Cancelling an Individual Event In the following example, Event 1 of Tuesday will be cancelled. Press the PROG button to enter program Menu. TIME CLOCK and PROG indicators will be illuminated in the screen.
  • Page 20 Return to Home Page Operation Manual LR7 Wall Controller 6. Repeat above process to repeat other days event otherwise, press the EXIT button twice to exit Program Menu. NOTE Cancelling Event 1 will cancel both Event 1 and Event 2. Cancelling Event 2 will only cancel Event 2.
  • Page 21 Return to Home Page Operation Manual LR7 Wall Controller 5. Press the button to re-activate Tuesday’s event. The event’s On time will be displayed indicating the event is re-activated. 6. Press the EXIT button twice to exit Program Menu. 13.01.09. De-activating the 7-Day Time Clock 1.
  • Page 22 Return to Home Page Operation Manual LR7 Wall Controller 13.02. Setting the Clock The system’s status must be On before performing these procedures. PROG button to enter program Menu. 1. Press the 2. Press the button to navigate to Program Menu 02.
  • Page 23 Activating Temperature Set back may cause unit to operate even if the LR7 Wall controller is Off. Please proceed with activating the Temperature Set back feature if you understand the purpose and operating parameters. For further enquires, please contact ActronAir Technical Support on 1800 119 229. Page 23...
  • Page 24 Return to Home Page Operation Manual LR7 Wall Controller 1. Press the PROG button to enter program Menu. 2. Press the button to navigate to Program Menu 03. Press the PROG button to enter Program Menu 03. Display will show SET BACK indicator and OFF field is blinking.
  • Page 25 Return to Home Page Operation Manual LR7 Wall Controller 2. Press the button to navigate to Program Menu 03. 3. Press the PROG button to enter Program Menu 03. Display will show set back display ON field is blinking. 4. Press the PROG button to enter On Program Menu.
  • Page 26 Return to Home Page Operation Manual LR7 Wall Controller 8. Press the PROG button to accept HEAT set back temperature. 9. Press the EXIT button once to go back to the Main Screen. 13.03.03. Temperature Set back Screens Tabulated below are the different screens that are displayed on the LR7 during Set back operation.
  • Page 27 Return to Home Page Operation Manual LR7 Wall Controller 3. Press the PROG button to enter Program Menu 03. NOTE Display will show set back display. ON field is blinking. button to toggle from ON to 4. Press the OFF. 5.
  • Page 28 Return to Home Page Operation Manual LR7 Wall Controller 4. Press the PROG button to enter Program Menu 04. NOTE Mode lock is OFF by default. 5. Press the button to turn the Mode lock 6. Press the PROG button to accept the selection. Press the EXIT button once to go back to the Main Screen.
  • Page 29 Return to Home Page Operation Manual LR7 Wall Controller PROG button to enter program Menu. 2. Press the Press the button to navigate to Program Menu 05. 4. Press the PROG button to enter Program Menu 05. NOTE Setpoint lock is Off by default. 5.
  • Page 30 Return to Home Page Operation Manual LR7 Wall Controller NOTE To disable Setpoint Lock, follow same steps above. However, in step 5 select OFF. 13.06. Fan Speed Lock 13.06.01. Activating Fan Speed Lock NOTE • Fan Speed Lock will prevent user from changing the fan speed on wall controller.
  • Page 31 Return to Home Page Operation Manual LR7 Wall Controller 6. Press the PROG button to accept the selection. 7. Press the EXIT button once to go back to the main Screen. 8. When the button is pressed, the symbol will appear for 3 seconds and user won’t be able to change fan speed.

  • Page 32: Filter Timer

    Return to Home Page Operation Manual LR7 Wall Controller 4. Press the button to turn the Keypad lock ON. 5. Press the PROG button to accept the selection. 6. Press the EXIT button once to go back to the main Screen.

  • Page 33: Near Field Communication (Nfc) Tag

    4. Once the tag has successfully scanned the image 5. A pop-up window will appear to redirect you to below will appear. https://www.actronair.com.au/nfc 6. List of Controller Models will appear on the screen of your mobile device. Select the model number of your controller to view the operation manual.
  • Page 34 Return to Home Page Operation Manual LR7 Wall Controller Page 34...
  • Page 35 ©Copyright 2019 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. Document: 0525-075 Issue Date: xx/2019...
