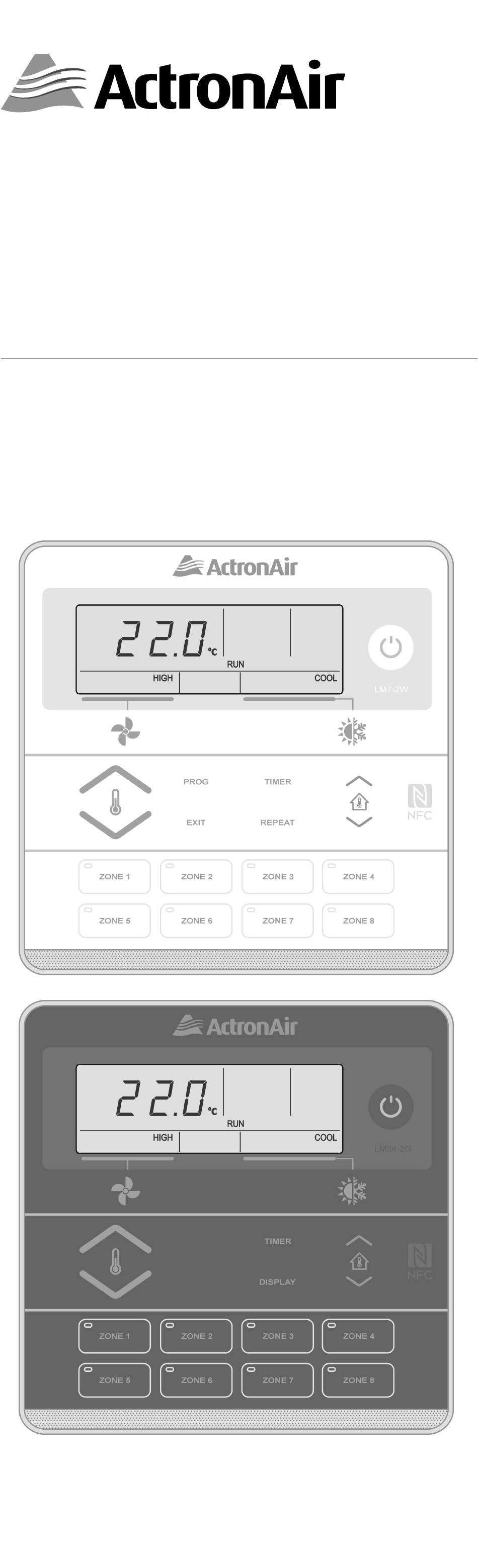

WALL
CONTROL
Operation Manual
Model Numbers
LM7-2W (White)
LM7-2G (Grey)
LM24-2W (White)
LM24-2G (Grey)
IMPORTANT NOTE:
Please read this manual carefully before installing or
operating your air conditioning unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM7-2W and is the answer not in the manual?

Questions and answers

Related Manuals for ActronAir LM7-2W

Summary of Contents for ActronAir LM7-2W

  • Page 1 WALL CONTROL Operation Manual Model Numbers LM7-2W (White) LM7-2G (Grey) LM24-2W (White) LM24-2G (Grey) IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit.

  • Page 2: Table Of Contents

    Return to Home Page Operation Manual LM7/24-2 Wall Control Table of Contents 01. General Information ..........02. Waste Electrical and Electronic Equipment Disposal Guideline ....... 03. Maintenance ............04. Operational Precaution .......... 05. System Information ..........06. Features ..............07. Basic Operation .............

  • Page 3: General Information

    ActronAir accept liability for the correct operation of the final equipment / system. Your ActronAir air conditioning unit is one of the most advanced and innovative products in the market. Its operation is specified in the technical documentation supplied with the product or which can be downloaded from our website: www.actronair.com.
  • Page 4 • This control interface must be installed in a location that complies with the temperature and humidity limits specified in this manual. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without prior notice. Please check with ActronAir Service Department on toll free number: 1800 119 229.

  • Page 5: Waste Electrical And Electronic

    6. Do not pull apart or attempt to service the control interface, should you need service to the device, contact ActronAir Service Department on 1800 119 229. 04. Operational Precautions Read all instructions in this manual before operating the air conditioning unit.

  • Page 6: System Information

    Return to Home Page Operation Manual LM7/24-2 Wall Control be supervised to ensure that they do not play with the appliance. RETURN AIR FILTER: The air conditioner must never be operated without a return air filter as this will allow a build up of dust and other contaminants on the indoor coil.

  • Page 7: Features

    Return to Home Page Operation Manual LM7/24-2 Wall Control 06. Features Auto-Restart After Power Failure Should a power failure occur whilst the air conditioner is running, the wall control will restart the air conditioner in the same mode when the power is restored, if this option is selected. Dual/Triple Wall Control Operation (Optional) Up to two wall controllers can be installed on one system.

  • Page 8: Basic Operation

    Return to Home Page Operation Manual LM7/24-2 Wall Control 07. Basic Operation 07.01. Wall Control Functions LM7-2 and LM24-2 have the same buttons and functions, except for items which are not available to LM24-2. LM7-2 LM24-2 LCD Display Displays the setting and operation conditions (See next page for details).
  • Page 9 Return to Home Page Operation Manual LM7/24-2 Wall Control Temperature-Down Setting Button Decreases room temperature setting. Exit Button (Not used on LM24-2) Quick exit from time clock programming menu. Repeat / Backlight Button (LM7-2 only) • Repeats the previous day settings to the current day. •...
  • Page 10 LM24-2 Display NOTE Wall Controllers LM7-2 and LM24-2 are available in 2 colours. • LM7-2W (White) and LM7-2G (Grey) • LM24-2G (White) and LM24-2G (Grey) 23 Day Indicator (LM7-2 only) Display the day of the week when the time is shown and which day is selected for programming.
  • Page 11 Return to Home Page Operation Manual LM7/24-2 Wall Control 07.02. LCD Backlight Functions LM7-2/LM24-2 07.02.01. LCD Backlight Level Adjustments 1. Press and hold the REPEAT (LM7-2) or the DISPLAY (LM24-2) button. 2. Press the buttons to adjust the backlight level as follow: •...
  • Page 12 Return to Home Page Operation Manual LM7/24-2 Wall Control 07.02.04. Turn Off the ON/OFF Button Light Press and hold the REPEAT (LM7-2) or DISPLAY (LM24-2) button. 2. Press and release the button , along with the REPEAT (LM7-2) or the DISPLAY (LM24-2) button. 3.
  • Page 13 Return to Home Page Operation Manual LM7/24-2 Wall Control 3. Set the desired temperature by pressing either the buttons. •Maximum temperature setting 30. •Minimum temperature setting 16. •For a WARMER room temperature, press the button. •For a COOLER room temperature, press the button.
  • Page 14 Return to Home Page Operation Manual LM7/24-2 Wall Control drafts. It then would be preferable to have the indoor fan, cycle On and Off automatically with the Outdoor Unit. This is selected by pressing the button until the CONT indicator is Off. 5.
  • Page 15 Return to Home Page Operation Manual LM7/24-2 Wall Control ESP = Variable air circulation, varying fan speed will be determined by the controller automatically. This will depend on number of outlets or zones open in an installation. CONT ESP = Continuous variable air circulation, varying fan speed will be determined by the controller automatically.

  • Page 16: Program Menu (Lm7-2)

    Return to Home Page Operation Manual LM7/24-2 Wall Control 4. To change the Hour Set, follow the steps 1 and 2. 07.08.02. On Timer Function (LM7-2) 1. Press the TIMER button to enter the timer menu. NOTE The system’s status must be Off to set an On timer. 2.
  • Page 17 Return to Home Page Operation Manual LM7/24-2 Wall Control 08.02.02. Cancelling an Individual Event Go to On time for the event you wish to cancel and press the button. -:-- will be displayed indicating the event is cancelled. 08.03. Setting the Time and Day Press the PROG button 3 times and SET will be illuminated with TIME flashing.
  • Page 18 Return to Home Page Operation Manual LM7/24-2 Wall Control 08.05. Programming the Events In the following example, MONDAY, EVENT 1 and ON time will be activated. 1. Press the PROG button repeatedly until EVENT 1 and MON is illuminating in the screen. 2.

  • Page 19: Zone Controller Functions

    Return to Home Page Operation Manual LM7/24-2 Wall Control 08.07. Repeating a Day’s Events and Time This feature allows you to automatically repeat the previous days, events, and times, into the succeeding days. 1. Proceed to the day you wish to copy the programmed events and times.

  • Page 20: Dual Wall Controller Function

    Return to Home Page Operation Manual LM7/24-2 Wall Control 10. Dual Wall Controller Operation MIMIC Control •The air conditioner can be operated from either wall controller. •Information displayed on the two wall controllers is identical. Example 1 Using wall controller one, the cooling operation is started, both wall controllers will now show the system is in cooling mode.
  • Page 21 Return to Home Page Operation Manual LM7/24-2 Wall Control 2. You may want to lock the set-temp to 22 C to stop anyone else adjusting the set-temp up and down. To do this, simply adjust the upper and lower limit until they are the same.

  • Page 22: Operating Tips

    Return to Home Page Operation Manual LM7/24-2 Wall Control 12. Operating Tips 12.01. During Summer NOTE Always allow the necessary amount of fresh air into rooms. 1. Always test run your air conditioner a few weeks before the start of summer and make sure it’s cooling sufficiently.
  • Page 23 Return to Home Page Operation Manual LM7/24-2 Wall Control Keep all curtains and windows closed. Also stop drafts coming in from your front and back doors. If you have zones, turn off any you are not using and close doors to these areas, as this will give you more heating capacity in the areas you need.

  • Page 24: Cleaning Maintenance

    Return to Home Page Operation Manual LM7/24-2 Wall Control 13. Cleaning Maintenance Outlets and Return Air Wall Controller Dust off the outlets and return air, use Wipe the controller with a dry cloth. a household duster. Do this regularly Do not use water. to prevent any build up of dust or dirt.

  • Page 25: Troubleshooting

    Return to Home Page Operation Manual LM7/24-2 Wall Control 15. Troubleshooting Condition Causes or Check Points The system • Check that 5 minutes has passed from turn on time, as the does not start. system has in built safety timers. •...

  • Page 26: Near Field Communication (Nfc) Tag

    4. Once the tag has successfully scanned the image 5. A pop-up window will appear to redirect you to below will appear. https://www.actronair.com.au/nfc 6. List of Controller Models will appear on the screen of your mobile device. Select the model number of your controller to view the operation manual.
  • Page 27 NFC. 4. Once successfully scanned, a pop-up window will appear to redirect you to external website. https://www.actronair.com.au/nfc 5. List of Controller Models will appear on the screen of your mobile device. Select the model number of your controller to view the operation manual.
  • Page 28 ©Copyright 2019 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. Document: 0525-079 Issue Date: 09/2019...
