ActronAir LR7-1W Quick Start Manual

Hide thumbs Also See for LR7-1W:

Advertisement

Table of Contents

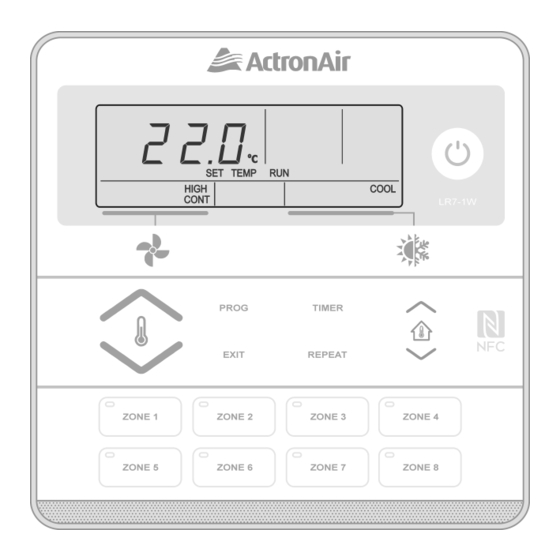

WALL CONTROLLER
Installation Instructions
Controller Model Number
LR7-1W
LR7-1G
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LR7-1W and is the answer not in the manual?

Questions and answers

Related Manuals for ActronAir LR7-1W

Summary of Contents for ActronAir LR7-1W

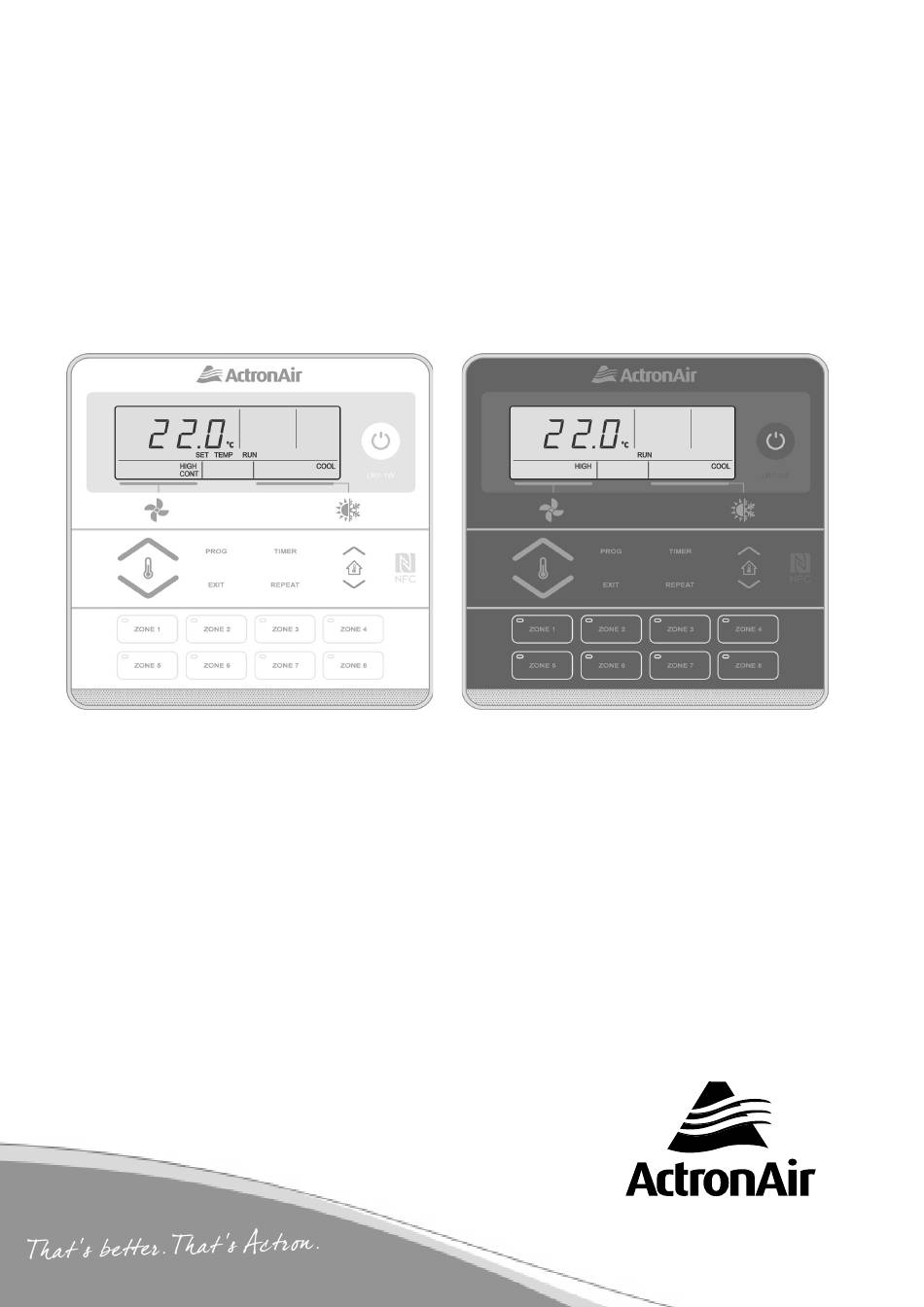

  • Page 1 WALL CONTROLLER Installation Instructions Controller Model Number LR7-1W LR7-1G IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit.
  • Page 2 5. WH&S rules and regulations must be observed and will take precedence during installation process. 6. Only use this Control Interface with an ActronAir air conditioner as described in this installation guide. 02. Specifications • Voltage: 12VDC +/- 10% (LR7 control connects directly to the Indoor board) •...
  • Page 3 LR7 Control Interface Installation Guide 03. Installation 1. Remove back cover, as shown in the diagram below 2. Mount back cover to the wall • Insert and gently twist screwdriver into the slot at the top • Mount the back cover to the wall with screws (not and the bottom of the Control Interface.
  • Page 4 LR7 Control Interface Installation Guide 04. Wiring Diagram 04.01. Single Wall Control to Indoor Board WALL CONTROL WIRING POWER: - BROWN / ORANGE 485 A: - BLUE 485 B: - BLUE-WHITE GND: - BROWN-WHITE / ORANGE-WHITE NOT USED: - GREEN / GREEN-WHITE WC-1 BR / OR BR / OR...
  • Page 5 LR7 Control Interface Installation Guide 05. Controller Assignment NOTE For installations where an LR7 is being installed with a Neo Wall Control, C-1 will always need to be assigned to the Neo Wall Control. Upon initial start up of the system, all connected LR7 controls (up to 3) will display C-0. After 3 seconds, an auto assignment process will take place with the auto-assigned controller ID displayed on the screen C-1, C-2 and C-3.
  • Page 6 LR7 Control Interface Installation Guide 07. Enabling Zones and Assigning Sensors NOTE On initial power-up, an automatic zone detection takes place. If zones do not appear on the control upon commissioning, cycling power will enable another automatic zone detection. 1. Press and hold the REPEAT and TIMER buttons for 3 seconds then release to enter Service Menu. Press the button to scroll through to Service Menu 14.
  • Page 7 LR7 Control Interface Installation Guide 4. Press the PROG button to accept changes. Display will show the zone CLOSE percentage and LOW. By default this will be 0. Press the buttons to change value. NOTE CLOSED and LOW range is 0-45%, with 5% increments per the buttons press.
  • Page 8 ©Copyright 2019 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Document No. 9590-3019 Ver. 3 Issue Date: 07/2020...

This manual is also suitable for:

Lr7-1g
