Electrical connection
7.1.2
Device plug connectors
For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be
connected without opening the housing.

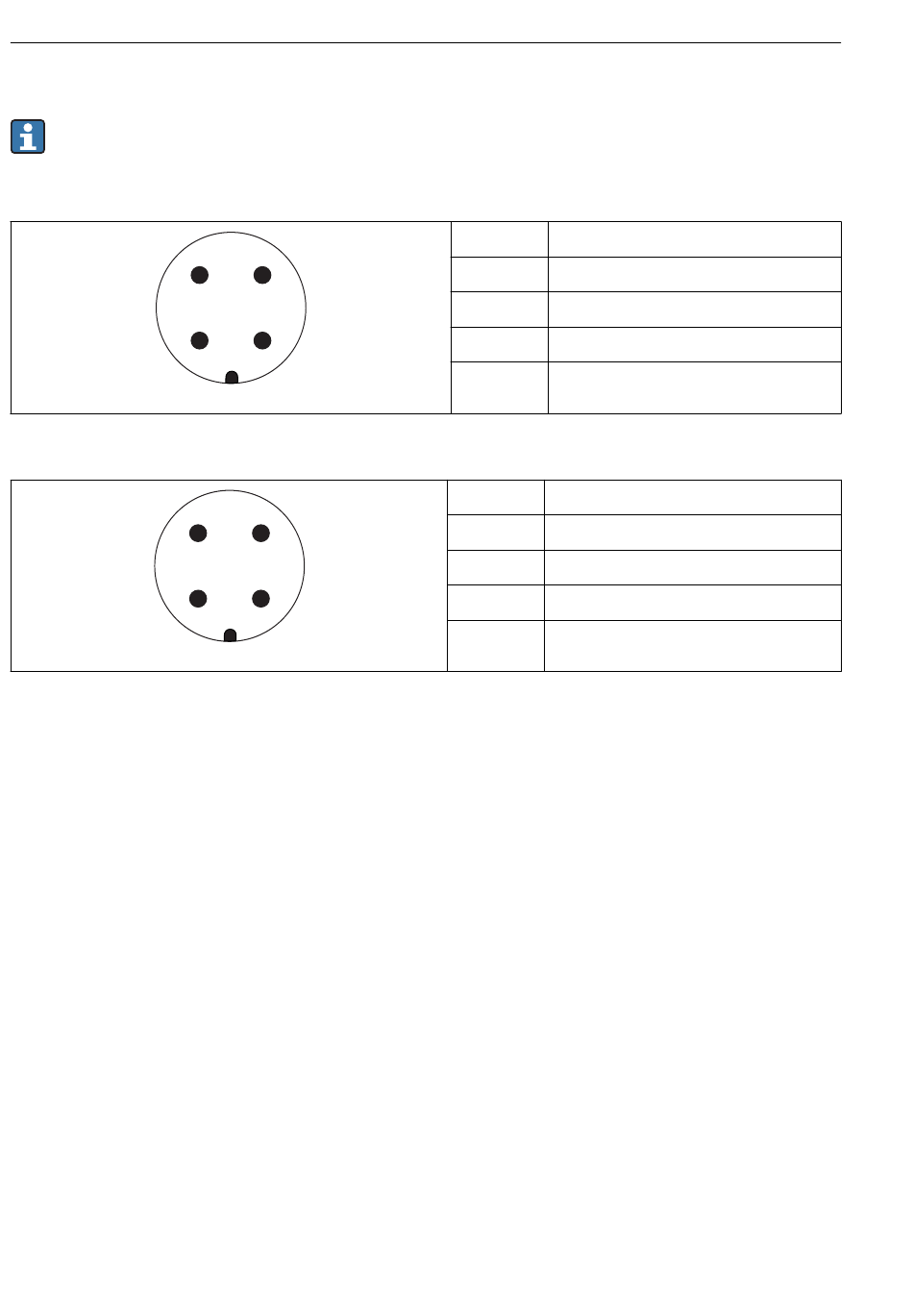

Pin assignment of the M12 plug connector
4
1
Pin assignment of the 7/8" plug connector
1
2
36
3
2
A0011175
3
4
A0011176
Micropilot FMR50 FOUNDATION Fieldbus
Pin
Meaning
1
Signal +
2
not connected
3
Signal -
4
Ground
Pin
Meaning
1
Signal -
2
Signal +
3
Not connected
4
Screen
Endress+Hauser
