Installation In Vessel (Free Space) - Endress+Hauser FOUNDATION Fieldbus Micropilot FMR50 Brief Operating Instructions

Micropilot FMR50 FOUNDATION Fieldbus
Device A [mm (in)]
FMR50 150 (
5.91)
6.3

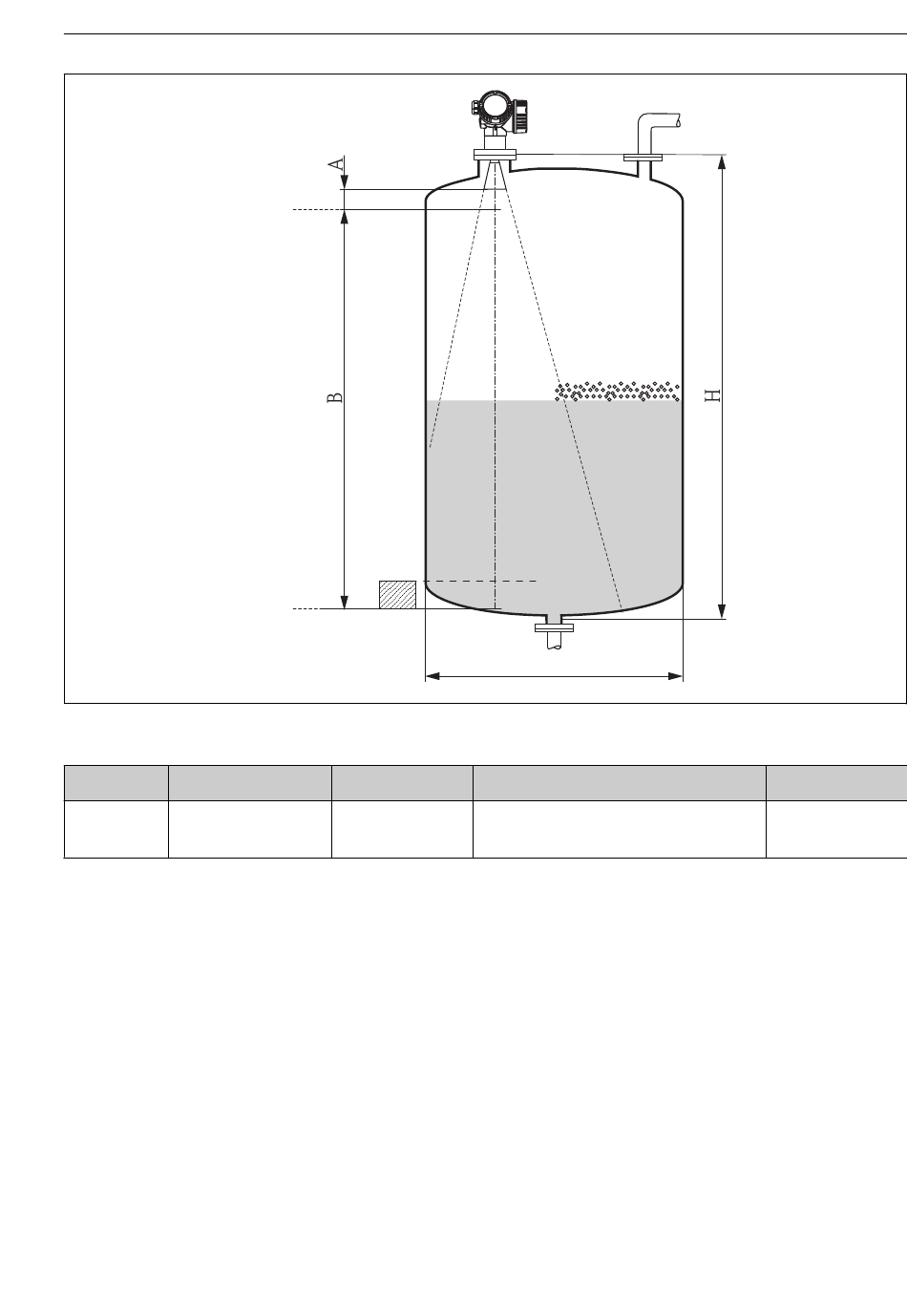

Installation in vessel (free space)

6.3.1 Horn antenna encapsulated (FMR50)
Alignment
• Align the antenna vertically to the product surface.
• A marking at the threaded connection enables alignment of the antenna. This marking
must be aligned towards the tank wall as well as possible.
Endress+Hauser
100%
C
0%
B [m (ft)]
> 0.2 (0.7)
øD
C [mm (in)]
50 to 250 (1.97 to 9.84)
Installation
A0018872
H [m (ft)]
> 0.3 (1.0)
