Endress+Hauser FOUNDATION Fieldbus Micropilot FMR50 Brief Operating Instructions page 30

Installation

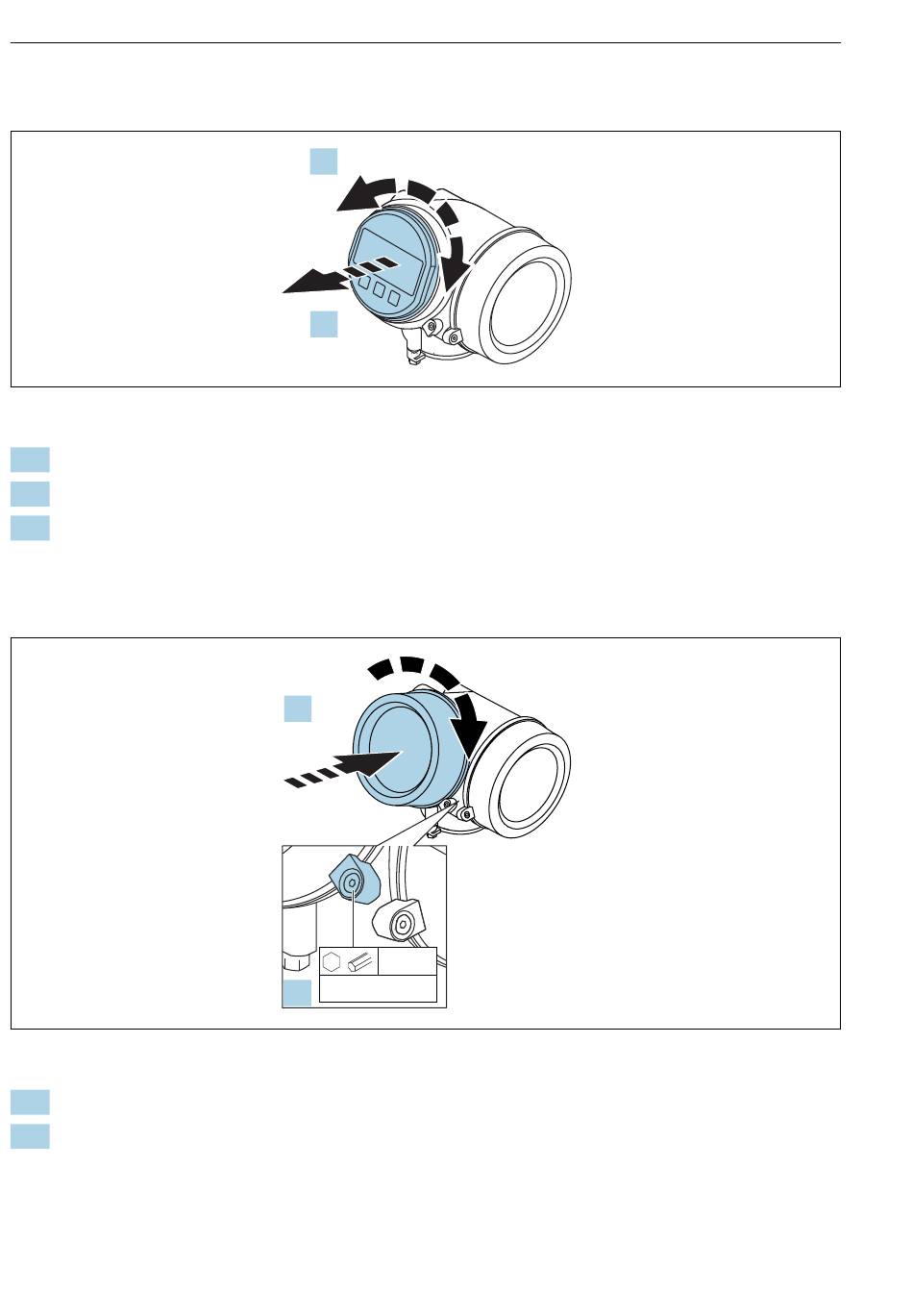

6.8.2 Turning the display module
1. Pull out the display module with a gentle rotational movement.
2. Rotate the display module to the desired position: max. 8 × 45 ° in each direction.
3. Feed the coiled cable into the gap between the housing and main electronics module
and plug the display module into the electronics compartment until it engages.
6.8.3 Closing electronics compartment cover
1. Screw back firmly electronics compartment cover.
2. Turning securing clamp 90 ° clockwise and tighten the clamp with 2.5 Nm using the
Allen key (3 mm).
30
2.
1.
1.
3 mm
2,5 Nm
2.
Micropilot FMR50 FOUNDATION Fieldbus
A0036401
A0021451
