Installation

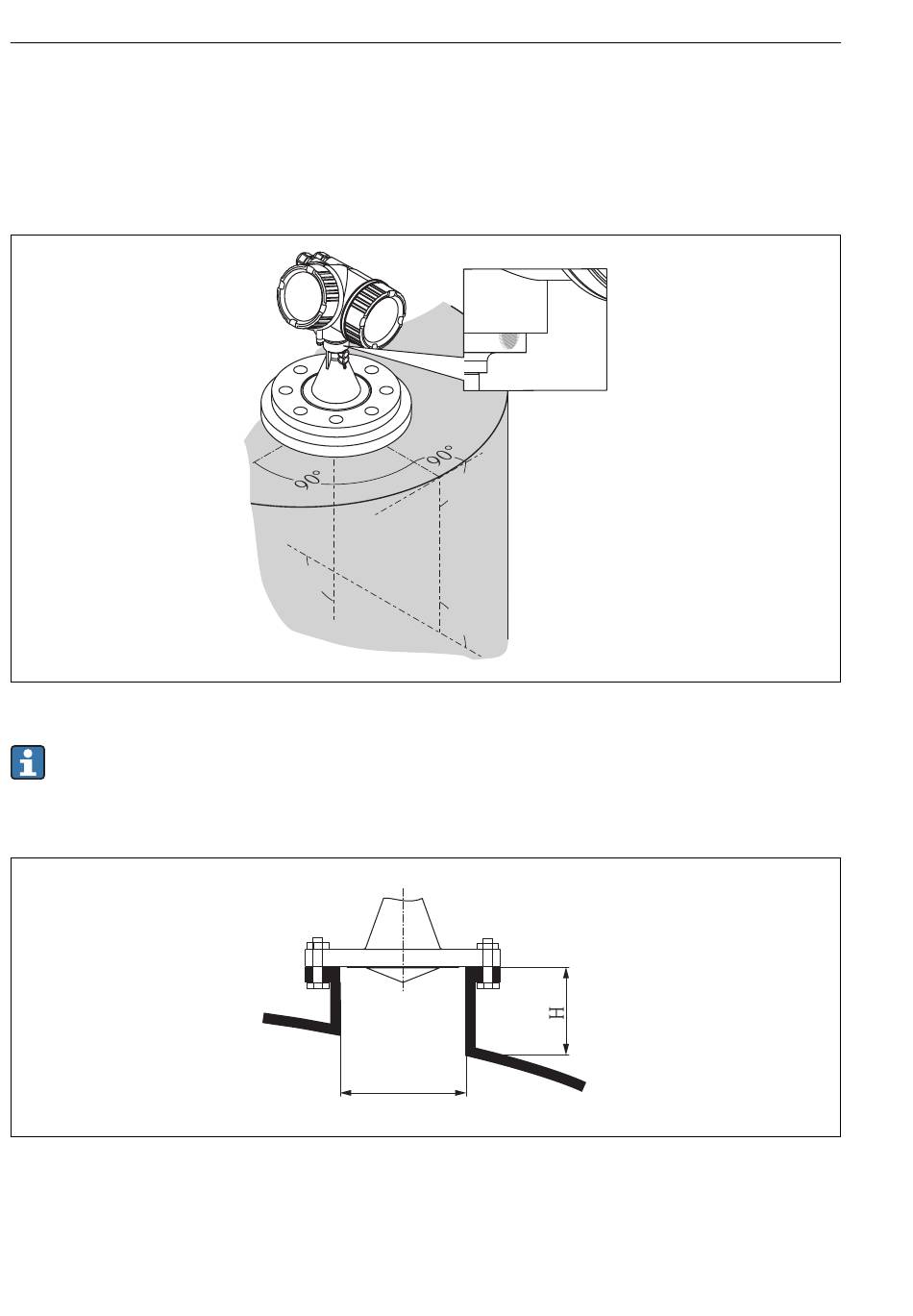

• Align the antenna vertically to the product surface.
Optionally, a variable flange seal, which is available as an accessory, can be used for
alignment (see Technical Information BA01048F, chapter "Accessories").
• A marking at the feedthrough enables alignment of the antenna. This marking must be
aligned towards the tank wall as well as possible.
Depending on the device version the marking may be a circle or two short parallel lines.
Nozzle mounting
 5 Nozzle height and diameter for horn antenna with slip-on flange
24
°
9 0
9 0
°
9 0
°
øD
Micropilot FMR50 FOUNDATION Fieldbus
A0019439
A0016868
