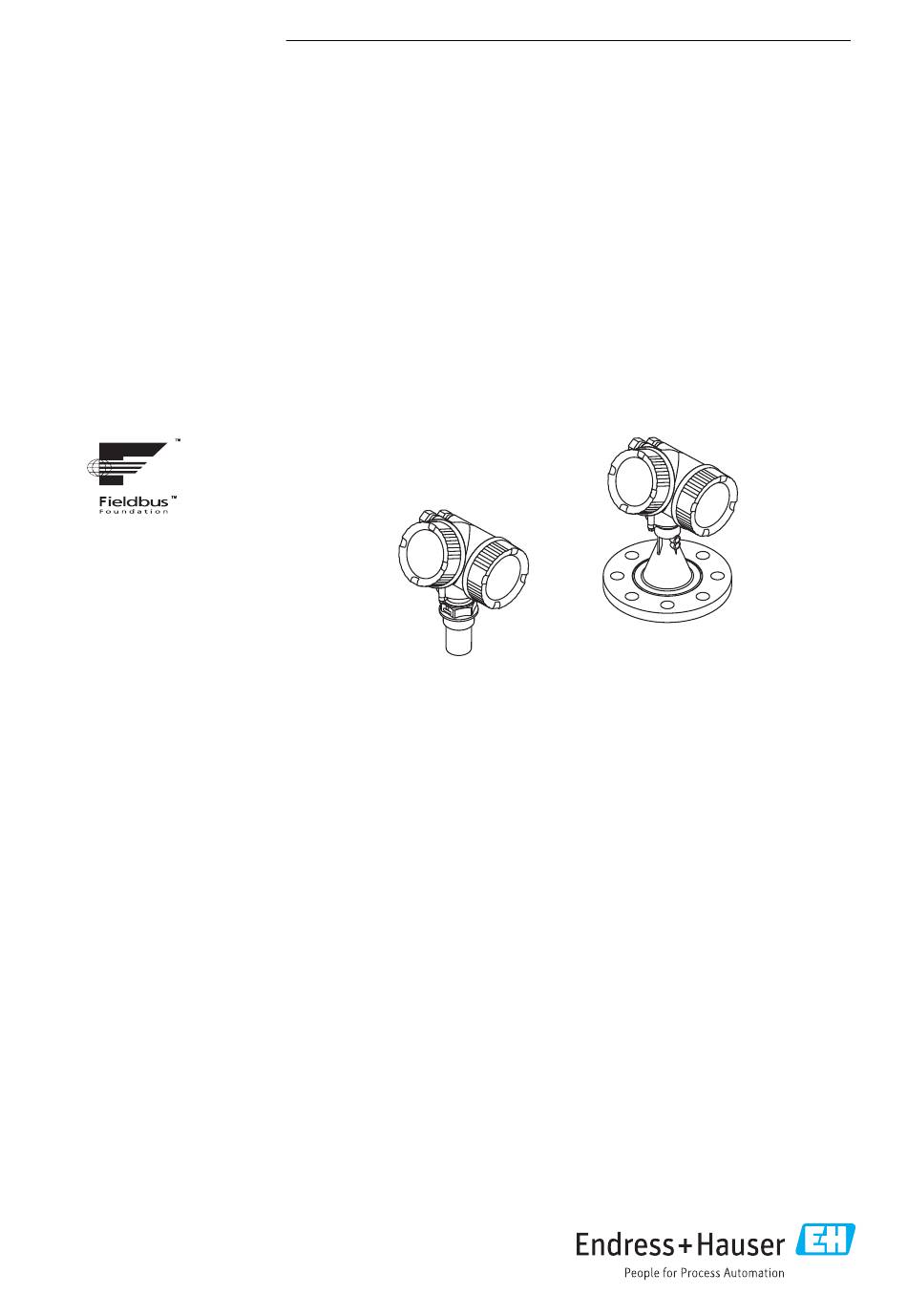

KA01124F/00/EN/02.18
71396472
2018-04-12
Products
Brief Operating Instructions
Micropilot FMR50
FOUNDATION Fieldbus
Free space radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOUNDATION Fieldbus Micropilot FMR50 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser FOUNDATION Fieldbus Micropilot FMR50

Summary of Contents for Endress+Hauser FOUNDATION Fieldbus Micropilot FMR50

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Micropilot FMR50 FOUNDATION Fieldbus Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    10.6 User-specific applications ............. . . 55 Endress+Hauser...

  • Page 4: Wichtige Hinweise Zum Dokument

    A terminal which must be connected to ground prior to establishing any other connections. The ground terminals are situated inside and outside the device: • Inner ground terminal: Connects the protectiv earth to the mains supply. • Outer ground terminal: Connects the device to the plant grounding system. Endress+Hauser...
  • Page 5 Symbols in graphics Symbol Meaning 1, 2, 3 ... Item numbers … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Indicates a hazardous area. Safe area (non-hazardous area) Indicates the non-hazardous area. Endress+Hauser...
  • Page 6 Micropilot FMR50 FOUNDATION Fieldbus 1.1.6 Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions. Temperature resistance of the connection cables Specifies the minimum value of the temperature resistance of the connection cables. Endress+Hauser...

  • Page 7: Terms And Abbreviations

    Time of Flight FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol ε...

  • Page 8: Registered Trademarks

    Registered trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 9: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.

  • Page 10: Workplace Safety

    This may also impair the safe operation of the device. 2.5.1 CE mark The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser...
  • Page 11 Micropilot FMR50 FOUNDATION Fieldbus Basic safety instructions Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines. These are listed in the corresponding EAC Declaration of Conformity together with the standards applied.

  • Page 12: Product Description

    • Do the nameplate data match the ordering information on the delivery note? • Is the DVD with the operating tool present? If required (see nameplate): Are the Safety Instructions (XA) present? If one of these conditions is not satisfied, contact your Endress+Hauser Sales Center. Endress+Hauser...

  • Page 13: Product Identification

    ): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed.

  • Page 14: Storage, Transport

    Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the antenna horn but at the process connection. Take into account the mass center of the device in order to avoid unintended tilting. ‣ Comply with the safety instructions, transport conditions for devices over 18kg (39.6lbs) (IEC61010). A0016875 Endress+Hauser...

  • Page 15: Installation

    • Not in the center (2), as interference can cause signal loss. • Not above the fill stream (3). • It is recommended to us a weather protection cover (1) in order to protect the device from direct sun or rain. A0016882 Endress+Hauser...
  • Page 16 Installation Micropilot FMR50 FOUNDATION Fieldbus 6.1.2 Vessel installations Avoid any installations (point level switches, temperature sensors, braces, vacuum rings, heating coils, baffles etc.) inside the signal beam. Take into account the beam angle →  19. A0018944 Endress+Hauser...
  • Page 17 If the outer wall of the vessel is made of a non-conductive material (e.g. GRP), microwaves can also be reflected off interfering installations outside the vessel (e.g. metallic pipes (1), ladders (2), grates (3), ...). Therefore, there should be no such interfering installations in the signal beam. Please contact Endress+Hauser for further information. Endress+Hauser...
  • Page 18 Take into account the marker on the flange or threaded connection →  21 →  23. • Stilling well A stilling well can be applied to avoid interferences →  26. • Metallic screens mounted at a slope They spread the radar signals and can, therefore, reduce interference echoes. Endress+Hauser...
  • Page 19 3.50 m (11 ft) 30 m (98 ft) 5.25 m (17 ft) 4.20 m (14 ft) 35 m (115 ft) 6.12 m (20 ft) 4.89 m (16 ft) 40 m (131 ft) 7.00 m (23 ft) 5.59 m (18 ft) Endress+Hauser...

  • Page 20: Measuring Conditions

    • The tank height should be at least H (see table). Affected compounds are e.g. R134a, R227, Dymel 152a. Dielectric constants of important media commonly used in various industries are summarized in the DC manual (CP01076F) and in the Endress+Hauser "DC Values App" (available for Android and iOS). Endress+Hauser...

  • Page 21: Installation In Vessel (Free Space)

    Horn antenna encapsulated (FMR50) Alignment • Align the antenna vertically to the product surface. • A marking at the threaded connection enables alignment of the antenna. This marking must be aligned towards the tank wall as well as possible. Endress+Hauser...
  • Page 22 Nozzle height for horn antenna, encapsulated (FMR50); H = 60 mm (2.36 in) Conditions for longer nozzles If the medium has good reflective properties, higher nozzles can be accepted. In this case the maximum nozzle height, H , is dependent on the nozzle diameter, D: Endress+Hauser...
  • Page 23 • The nozzle end must be smooth and free of burrs. If possible its edge should be rounded. • An interference echo suppression must be performed. • Please contact Endress+Hauser for applications with higher nozzles than those indicated in the table. Threaded connection •...
  • Page 24 ° ° ° A0019439 Depending on the device version the marking may be a circle or two short parallel lines. Nozzle mounting øD A0016868  5 Nozzle height and diameter for horn antenna with slip-on flange Endress+Hauser...
  • Page 25 • If possible, avoid mounting locations where condensation or build-up might occur. • In case of outdoor mounting, the space between antenna and vessel has to be protected from the elements. • Do not mount any potential reflectors (e.g. pipes) outside the tank in the signal beam. Endress+Hauser...

  • Page 26: Installation In Stilling Well

    • Weld seam as smooth as possible and on the same axis as the slots. • Slots offset 180° (not 90°). • Slot width or diameter of holes max. 1/10 of pipe diameter, de-burred. Length and number do not have any influence on the measurement. Endress+Hauser...

  • Page 27: Installation In Bypass

    • Measurements can be performed through an open full bore ball valve without any problems. • After mounting, the housing can be turned 350° in order to facilitate access to the display and the terminal compartment →  28. Endress+Hauser...

  • Page 28: Container With Heat Insulation

    (2) to prevent the electronics from heating as a result of thermal radiation or convection. The insulation should not be higher than the neck of the device (1). Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: Endress+Hauser...

  • Page 29: Turning The Display

    Opening cover 3 mm A0021430 Loosen the screw of the securing clamp of the electronics compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew cover and check lid gasket, replace if necessary. Endress+Hauser...
  • Page 30 6.8.3 Closing electronics compartment cover 3 mm 2,5 Nm A0021451 Screw back firmly electronics compartment cover. Turning securing clamp 90 ° clockwise and tighten the clamp with 2.5 Nm using the Allen key (3 mm). Endress+Hauser...

  • Page 31: Post-Installation Check

    • Ambient temperature range • Measuring range  Are the measuring point identification and labeling correct (visual inspection)?  Is the device adequately protected from precipitation and direct sunlight?  Are the securing screw and securing clamp tightened securely? Endress+Hauser...

  • Page 32: Electrical Connection

    Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V A0036519  9 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V Connection 4-20 mA HART (active): terminals 3 and 4 Connection supply voltage: terminals 1 and 2 Terminal for cable screen Endress+Hauser...
  • Page 33 (flange or threaded connection) or to the external ground terminal. An easily accessible power switch must be installed in the proximity of the device. The power switch must be marked as a disconnector for the device (IEC/EN61010). Endress+Hauser...
  • Page 34 Connection switch output (Open Collector): terminals 3 and 4, without integrated overvoltage protection Connection switch output (Open Collector): terminals 3 and 4, with integrated overvoltage protection Connection PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, with integrated overvoltage protection Terminal for cable screen Endress+Hauser...
  • Page 35 Micropilot FMR50 FOUNDATION Fieldbus Electrical connection Block diagram PROFIBUS PA / FOUNDATION Fieldbus A0036530  11 Block diagram PROFIBUS PA / FOUNDATION Fieldbus Cable screen; observe cable specifications Connection PROFIBUS PA / FOUNDATION Fieldbus Measuring device Switch output (open collector) Endress+Hauser...
  • Page 36 For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal + not connected Signal - Ground A0011175 Pin assignment of the 7/8" plug connector Meaning Signal - Signal + Not connected Screen A0011176 Endress+Hauser...
  • Page 37 400 to 700 V Threshold impulse voltage < 800 V Capacitance at 1 MHz < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. Endress+Hauser...

  • Page 38: Connecting The Measuring Device

    3 mm A0021490 Loosen the screw of the securing clamp of the connection compartment cover using an Allen key (3 mm) and turn the clamp 90 ° clockwise. Afterwards unscrew connection compartment cover and check lid gasket, replace if necessary. Endress+Hauser...
  • Page 39 Strip the cable ends over a length of 10 mm (0.4 in). In the case of stranded cables, also fit ferrules. Firmly tighten the cable glands. Connect the cable in accordance with the terminal assignment.  A0034682 If using shielded cables: Connect the cable shield to the ground terminal. Endress+Hauser...
  • Page 40 Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal holes while simultaneously pulling the cable end out of the terminal. 7.2.4 Closing connection compartment cover 3 mm 2,5 Nm A0021491 Screw back firmly connection compartment cover. Endress+Hauser...

  • Page 41: Post-Connection Check

    – Device Description format 4 : *sym, *ffo – Device Description format 5 : *sy5, *ff5 Information on the device-specific DD Manufacturer ID 0x452B48 Device Type 0x1028 Device Revision 0x01 DD Revision Information and files at: • www.endress.com CFF Revision • www.fieldcommgroup.org Endress+Hauser...

  • Page 42: Integration Into The Foundation Fieldbus Network

    FF configuration program and integrated the device into the network. The blocks available are displayed under the device name. If the device description has not yet been loaded, the blocks report "Unknown" or "(UNK)". Endress+Hauser...
  • Page 43 (DI) PID_ xxxxxxxxxxx (PID) ARITHMETIC_ xxxxxxxxxxx (AR) SIGNAL_CHAR_ xxxxxxxxxxx (SC) INPUT_SELECTOR_ xxxxxxxxxxx (ISEL) INTEGRATOR_ xxxxxxxxxxx (IT) ANALOG_ALARM_ xxxxxxxxxxx (AAL) A0020711  14 Typical display in a configuration program after the connection has been established Device name Serial number Endress+Hauser...

  • Page 44: Block Model

    Endress+Hauser Guideline BA00062S. The guideline provides an overview of the standard function blocks that are described in FOUNDATION Fieldbus Specifications FF 890 - 894. It is designed to help operators use the blocks implemented in the Endress+Hauser field devices. Endress+Hauser...

  • Page 45: Assignment Of The Measured Values (Channel) In An Ai Block

    The input value of an Analog Input Block is defined by the CHANNEL parameter. Channel Measured value Uninitialized Terminal voltage Analog output advance diagnostics 1 Analog output advance diagnostics 2 32786 Absolute echo amplitude 32856 Distance 32885 Elektronic temperature Endress+Hauser...
  • Page 46 Integration into a FOUNDATION Fieldbus network Micropilot FMR50 FOUNDATION Fieldbus Channel Measured value 32949 Level linearized 33044 Relative echo amplitude Endress+Hauser...

  • Page 47: Methods

    This method is located in the ADV_SETUP Transducer Block and allows to manage the linearization table by which the measured value is converted into volume, mass or flow. • Self Check This method is located in the EXPERT_CONFIG Transducer Block and prompts the device self check parameters. Endress+Hauser...

  • Page 48: Commissioning Via Wizard

    If the wizard is cancelled before all necessary parameters have been set, the device may be in an undefined state. A reset to the default settings is recommended in this case. DeviceCare is available for download at www.software-products.endress.com. The download requires a registration in the Endress+Hauser software portal. Endress+Hauser...

  • Page 49: Commissioning (Via Operating Menu)

    Representation of a parameter (here: a parameter with selection list) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Selection list;  marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser...
  • Page 50 Closes the text or numeric editor without applying changes. Minus/Enter key combination (press and hold down the keys simultaneously) Reduces the contrast (brighter setting). A0032910 Plus/Enter key combination (press and hold down the keys simultaneously) Increases the contrast (darker setting). A0032911 Endress+Hauser...
  • Page 51  The context menu is closed and the operational display appears. Calling up the menu via the context menu Open the context menu. Press  to navigate to the desired menu. Press  to confirm the selection.  The selected menu opens. Endress+Hauser...

  • Page 52: Operating Menu

    In case of operation via operating tools (e.g. FieldCare), the "Language" parameter is located at "Setup → Advanced Setup → Display" On entering the "Expert" menu, an access code is always requested. If a customer specific access code has not been defined, "0000" has to be entered. Endress+Hauser...

  • Page 53: Unlock The Device

    Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0029420  17 Using the example of the local display Endress+Hauser...

  • Page 54: Configuration Of A Level Measurement

    "Setup → Advanced Setup → Level → Tank/silo height" parameter. If there is an outlet cone, the tank or silo height should not be adjusted as usually E is not << tank/silo height in these applications. Endress+Hauser...

  • Page 55: User-Specific Applications

    Identify the device using the DEVICE_ID (see Point 2). Assign the desired tag name to the device by means of the Pd-tag/FF_PD_TAG parameter. 11.1.2 Configuring the Resource Block Open the Resource Block. If necessary, disable the lock for device operation. If necessary, change the block name. Factory setting: RS-xxxxxxxxxxx (RB2) Endress+Hauser...
  • Page 56 →  57. Make sure that the unit selected suits the process variable selected. If the process variable does not suit the unit, the Block Error/BLOCK_ERR parameter reports Block Configuration Error and the block mode cannot be set to Auto. Endress+Hauser...

  • Page 57: Scaling Of The Measured Value In An Ai Block

    The input range is defined by the XD_SCALE parameter through its EU_0 and EU_100 elements. This range is mapped linearly to the output ranged defined by the OUT_SCALE parameter through its EU_0 and EU_100 elements. Endress+Hauser...
  • Page 58 • If you have selected the Direct mode for the L_TYPE parameter, you cannot change the values and units for XD_SCALE and OUT_SCALE. • The L_TYPE, XD_SCALE and OUT_SCALE parameters can only be changed in the OOS block mode. Endress+Hauser...

  • Page 59: Language Selection

    • 33062: Russian • 33083: Spanish • 33103: Thai • 33120: Vietnamese • 33155: Bahasa • 33166: Turkish When ordering a device the set of available languages is defined. Refer to the product structure, feature 500 "Additional Operation Language". Endress+Hauser...

  • Page 60: Configuration Of A Level Measurement

    The Setup method can also be used to configure the measurement. It is called up via the SETUP (TRDSUP) Transducer Block. 100% A0016933 R = Reference point of the measurement E = Empty calibration (= Zero point) D = Distance F = Full calibration (= span) L = Level Endress+Hauser...
  • Page 61 Selection: • 179: Manual map • 32847: Factory map • 32859: Distance ok • 32860: Distance too big • 32861: Distance too small • 32862: Distance unknown • 33100: Tank empty only available for "Tank type" = "Bypass/pipe" Endress+Hauser...

  • Page 62: Configuration Of The On-Site Display

    265: Compare The device configuration saved in the display module is compared to the current device configuration of the HistoROM. 32848: Clear backup data The backup copy of the device configuration is deleted from the display module of the device. Endress+Hauser...
  • Page 63 A HistoROM is a "non-volatile" device memory in the form of an EEPROM. While this action is in progress, the configuration cannot be edited via the local display and a message on the processing status appears on the display. Endress+Hauser...
