Congratulations, and welcome to the fabulous world of DK4210(C)HSE / DK4710(C)HSE / DK5310(C)HSE /
DK6010(C)HSE ownership, where serious work is made fun again!
This versatile tractor is a culmination of the entire tractor and diesel engine knowledge gained by the Dae-
dong Industrial Co.,LTD over the years since 1947. The DK4210(C)HSE / DK4710(C)HSE / DK5310(C)HSE
/ DK6010(C)HSE and has been designed with the finest materials and under rigid quality control standards
set forth by the KIOTI Engineering Department.
Knowledge of tractor operation is essential for many years of dependable service and reliability. To help
new owner's familiarize themselves with the KIOTI DK4210(C)HSE / DK4710(C)HSE / DK5310(C)HSE /
DK6010(C)HSE, it is the policy of KIOTI tractor to provide an owner's manual which includes helpful infor-
mation about tractor safety, operation and maintenance. If the information you seek is not found in this man-
ual, your KIOTI tractor dealer will be happy to help you.
Please feel free to contact DAEDONG IND. CO.,LTD with your questions/concerns.
< NOTE >
Make sure to read this manual carefully and keep it handy for future reference.
When leasing or transferring this tractor, deliver this manual together with the tractor.
The specifications in this manual are subject to change without notice.
TD210-미국법인향-DK4210,4710,5310,6011 1

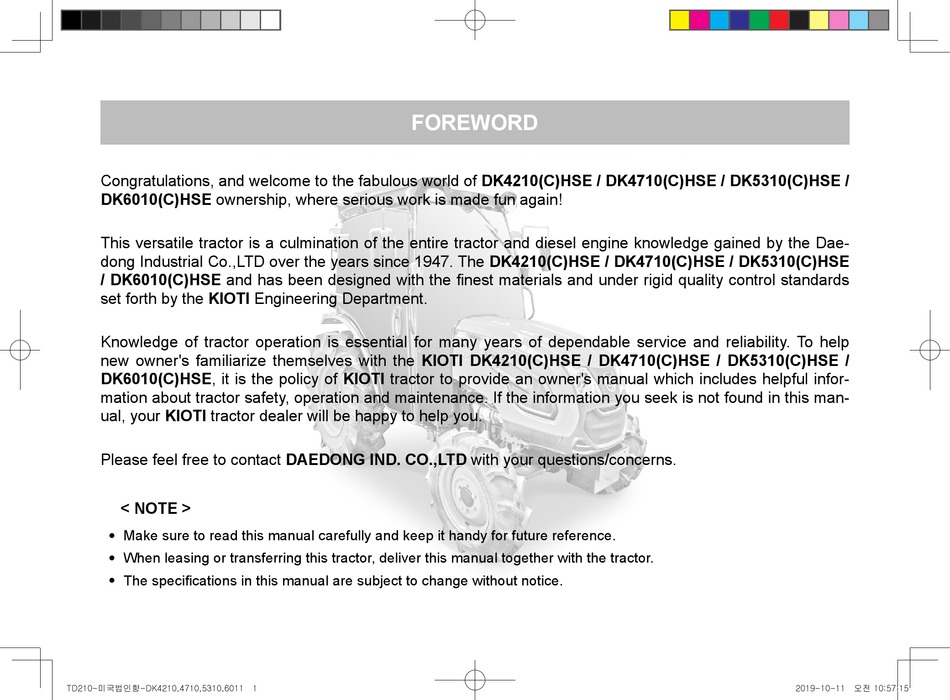

FOREWORD
2019-10-11 오전 10:57:15
