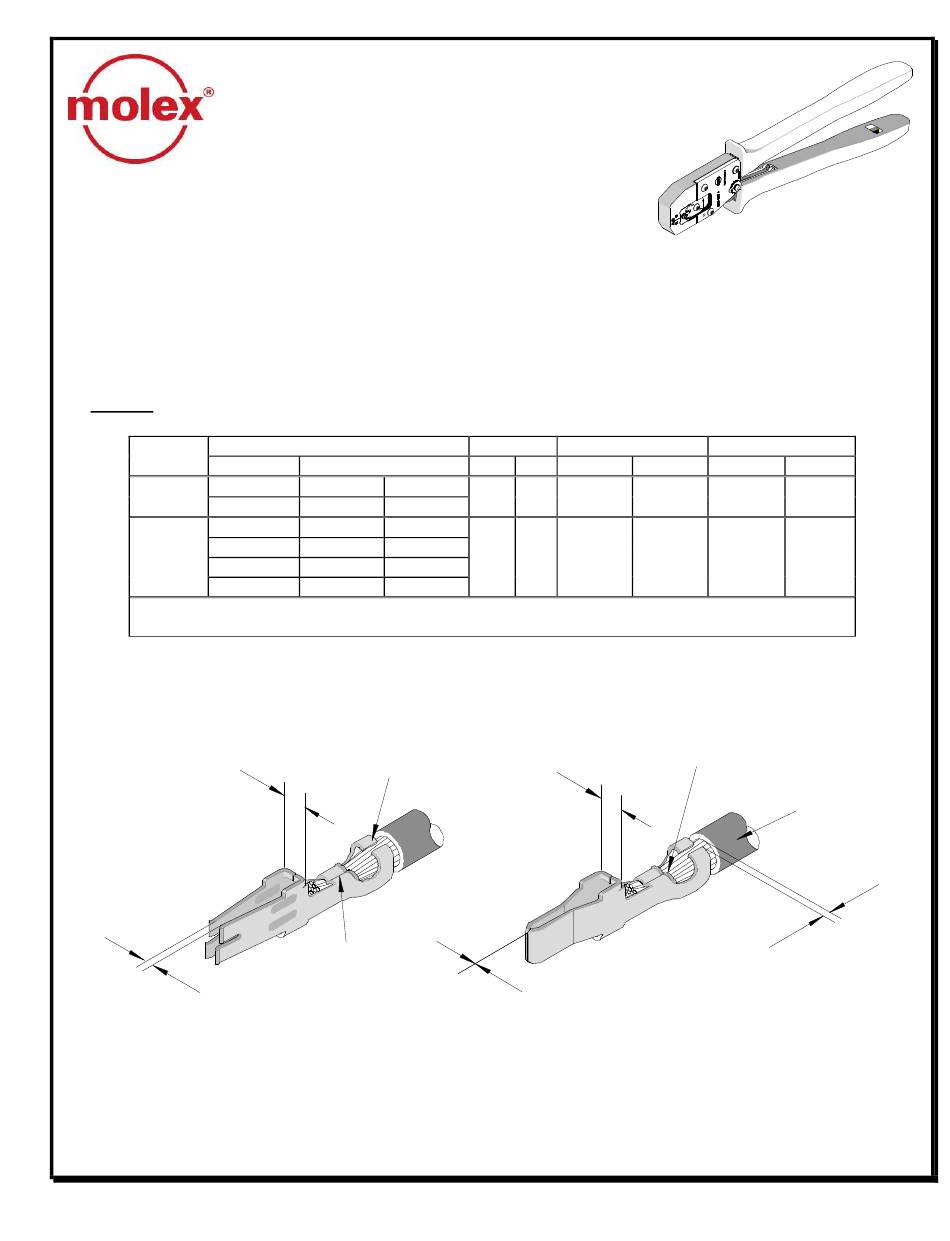

Hand Crimp Tool for Mini-Fit Sr. ™ Crimp Terminals

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%

SCOPE

Products: 10.00 mm (.394") Pitch Mini-Fit Sr. ™ Crimp Terminals, 8 AWG.
Terminal
Series No. Loose Piece
42815
42817
O n Mini-Fit Sr. ™ 8 AWG applications the insulation is stripped in both the conductor and insulation grips.
DEFINITION OF TERMS
3.75mm ± ± ± ± .20
CONTACT GAP
1.00mm ± ± ± ± .20
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in
the scope.
Doc No: ATS-638111500
Revision: F
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-1500
Terminal Order No.
Reel
42815-0030 42815-0031
42815-0032 42815-0038
42817-0030 42817-0031
42817-0032 42817-0038
42817-0130 42817-0131
42817-0132
Customer to cut off terminal from reel: 0.5mm (.020") maximum Cut-off Tab.
INSULATION
GRIP AREA
SEAM
Release Date: 08-13-01
Revision Date: 04-23-08
Wire Size
Insulation Diameter
AWG mm²
mm
8
8.50
5.00-6.75
.197-.266 9.00-10.00 .354-.394
8
8.50
5.00-6.75
.197-.266 9.00-10.00 .354-.394
3.75mm ± ± ± ± .20
CONTACT GAP
0.00mm - 0.05mm
UNCONTROLLED COPY
TYPE 4B
Strip Length
In.
mm
In.
BELL MOUTH
WIRE
INSULATION
INSULATION GAP
0.00mm ± ± ± ± 1.00 Max.
Page 1 of 4
