molex HCS-125 Series Specification Sheet

Modular crimp head for hcs-125 pin and socket crimp terminal

Advertisement

Quick Links

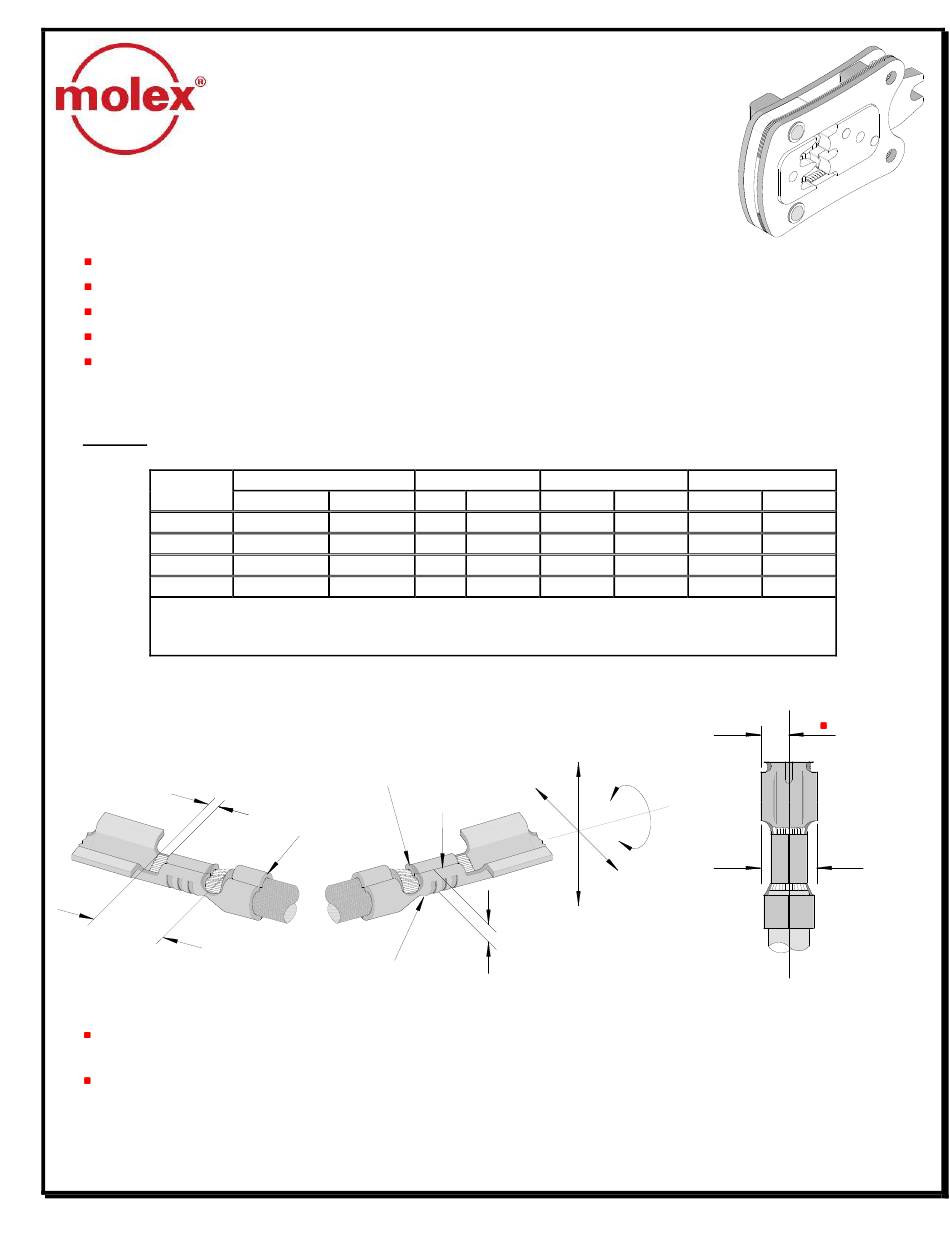

Modular Crimp Head for HCS-125 Pin and Socket Crimp Terminal

FEATURES

Quick change Modular Crimp Head is easily installed into Power Crimp Adapter
Crimp head is interchangeable with the Air or Battery Power Actuators
Also installed into Hand Crimp Frames without the adapters
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Air or battery powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping

SCOPE

Products: 3.18mm (.125") Diameter HCS-125 Pin and Socket Crimp Terminals, 10-14 AWG.
Terminal
Series No. Loose Piece
1900
1901
42546
42547

DEFINITION OF TERMS

BRUSH
STRIP
LENGTH
Terminal is to be centrally located between the two (2) cut-off tab edges by one half of the total cut-off tab
tolerance.
This illustration is a generic terminal representation and not an exact image of any terminal listed in the scope.
Doc No: ATS-638111170
Revision: A
Modular Crimp Head
Specification Sheet
Order No. 63811-1170
Terminal Order No.
●Reel
AWG
18-12-2602
18-12-2601 10-14 5.25-2.00 3.56-4.57 .140-.180 4.06-5.59 .160-.220
18-12-1602
18-12-1601 10-14 5.25-2.00 3.56-4.57 .140-.180 4.06-5.59 .160-.220
18-12-1607 10-14 5.25-2.00 3.56-4.57 .140-.180 4.06-5.59 .160-.220
18-12-1604
18-12-1603 10-14 5.25-2.00 3.56-4.57 .140-.180 4.06-5.59 .160-.220
Follow the Cut-Off Tab specifications on Applicator specification sheets.
These Terminals cannot be removed from the reel by manual cutting.
An applicator must be used or the terminals will not function properly.
BELL MOUTH
SEAM
INSULATION
CRIMP
CONDUCTOR
CRIMP
Release Date: 03-25-10
Revision Date: 03-25-10
Wire Size
Insulation Diameter
mm²
mm
BEND UP
ROLLING
TWISTING
BEND
DOWN
CRI
CRIMP
UNCONTROLLED COPY
Strip Length
In.
mm
In.
C/L
C/L
TERMINAL
LOCATION
CUT-OFF
TAB
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCS-125 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for molex HCS-125 Series

  • Page 1 Modular Crimp Head for HCS-125 Pin and Socket Crimp Terminal Modular Crimp Head Specification Sheet Order No. 63811-1170 FEATURES Quick change Modular Crimp Head is easily installed into Power Crimp Adapter Crimp head is interchangeable with the Air or Battery Power Actuators Also installed into Hand Crimp Frames without the adapters A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position Air or battery powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping...
  • Page 2 Modular Crimp Head for HCS-125 Pin and Socket Crimp Terminal The chart below shows all applications for this Modular Crimp Head. Modular Crimp Head Tool Tool Adapter Adapter Figure Order No. Order no. Description Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63811-1170 63816-0200...
  • Page 3 Modular Crimp Head for HCS-125 Pin and Socket Crimp Terminal WARNING: NEVER operate, service, install, or adjust this Modular Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet. See Chart above for the correct Manual or Specification Sheet. WARNING: NEVER install tooling or service this tool while it is into any power source.
  • Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools. (see warranty above) The replacement parts listed are the only parts available for repair. If the crimp tooling is damaged or worn, a new tool must be purchased.
  • Page 5 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638111170 Release Date: 03-25-10 Page 5 of 5 Revision: A Revision Date: 03-25-10...
