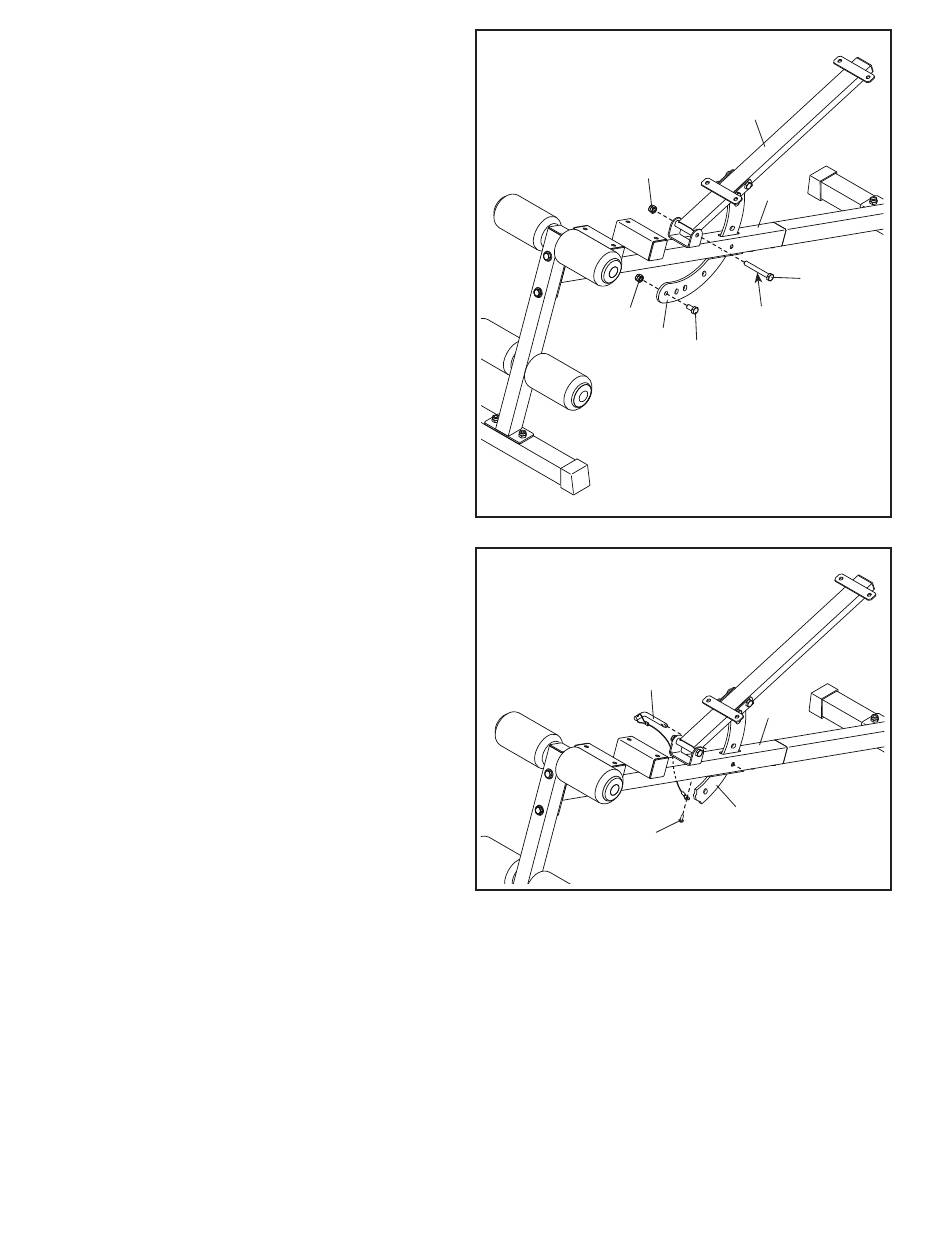

8. Using a plastic bag to keep your fingers clean,
apply some of the included grease to an
M10 x 85mm Bolt (23).
Insert the Pivot Bracket (6) into the slot in the
Frame (1). Attach the Backrest Frame (5) to
the Frame with the M10 x 85mm Bolt (23) and
an M10 Locknut (19). Do not overtighten the
Locknut; the Backrest Frame must pivot
easily.
Then, attach an M10 x 20mm Bolt (25) and an
M10 Locknut (19) to the hole in the end of the
Pivot Bracket (6).
See step 7. Tighten the M10 Locknuts (19).
9. Attach the tether on the Locking Pin (21) to the
Frame (1) with an M4 x 19mm Screw (28). Next,
insert the Locking Pin into the Frame and into an
adjustment hole in the Pivot Bracket (6).
