INT-TSG2
Keypad
Quick user manual
EN
Firmware version 2.00
int-tsg2_us_en 09/21
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-TSG2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel INT-TSG2

Summary of Contents for Satel INT-TSG2

  • Page 1 INT-TSG2 Keypad Quick user manual Firmware version 2.00 int-tsg2_us_en 09/21 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. The declaration of conformity may be consulted at www.satel.eu/ce The following symbols may be used in this manual: - note, - caution.

  • Page 3: Table Of Contents

    CONTENTS 1. LED indicators ........................2 2. Using the touch screen ...................... 2 3. Screensaver ........................4 Slide show ........................5 Trigger the panic alarm ....................5 4. User screens ........................5 5. Additional screens ......................7 6. Status bar .......................... 7 7.

  • Page 4: Led Indicators

    Ask the installer for instructions on how to use your individually configured keypad. The instructions must include all the changes from the default settings. The installer should also instruct you on how to operate the alarm system by using the INT-TSG2 keypad. 1. LED indicators...
  • Page 5 SATEL INT-TSG2 After 10 minutes of inactivity, the keypad screen can turn off (this setting is available in the service menu). Use the gestures described below. Tap on an item on the screen. Tap and hold Tap on an item on the screen and hold for 3 seconds.

  • Page 6: Screensaver

    INT-TSG2 SATEL Swipe right / left Tap the screen and slide your finger right or left to swipe the screen right / left (go to the previous / next screen). When the screensaver is active, swipe right / left to start / end the slide show.

  • Page 7: Slide Show

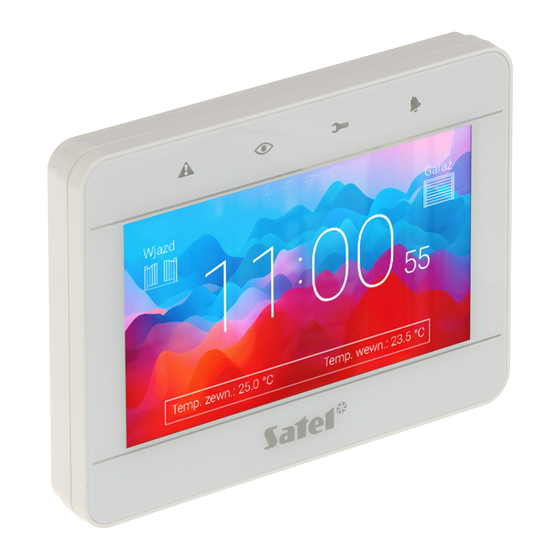

    SATEL INT-TSG2 Fig. 1. Screensaver (keypad with factory default settings). The screensaver on a keypad with factory default settings (Fig. 1) shows the date and time. The installer can add to the screen additional widgets that will indicate the alarm system status (see “Widgets”...
  • Page 8 INT-TSG2 SATEL Fig. 2. User home screen (keypad with factory default settings). The user screen includes: • status bar (see p. 7), • widgets used to operate the alarm system, indicate the alarm system status, etc. (see “Widgets” p. 7).

  • Page 9: Additional Screens

    For this reason, the additional screens may be used to display site plans. If pictures other than the ones offered by SATEL are to be displayed, the installer must save them on a memory card and install the card in the keypad.

  • Page 10: On-Screen Keypad

    INT-TSG2 SATEL Output status – the widget displays the output status represented by either: – icons selected by SATEL (indicator), – text messages (text), – icons selected by the installer (icon). Temperature – the widget displays the temperature. Information about the temperature is sourced from an ABAX 2 / ABAX wireless detector.

  • Page 11: User Menu

    SATEL INT-TSG2 If you tap before you enter the code, the on-screen keypad will close and you will return to the previous screen. By default, the following codes are programmed in the INTEGRA series control panel: service code: 12345 object 1 master (administrator) code 1: 1111...

  • Page 12: Versa System

    INT-TSG2 SATEL tap to go to the “Users” screen. tap to go to the “Tests” screen. tap to go to the “Settings” screen. tap to go to the “Others” screen. If the icon is greyed out, the function is unavailable.

  • Page 13: Qwerty Keyboard

    SATEL INT-TSG2 QWERTY keyboard The QWERTY keyboard is used to enter text. It is displayed e.g. when you search for items on certain screens. Fig. 7. QWERTY keyboard: letter keys mode. The text entered is displayed in the field above the keys.
  • Page 14 INT-TSG2 SATEL Fig. 8. Terminal in the INTEGRA system. Fig. 9. Terminal in the VERSA system.
