PA 358
4

TECHNICAL DATA

4.1

Electromagnetic compatibility

The board has been subjected to EMC tests in an accredited laboratory in
accordance with the norms EN50082-2, EN55011, EN55022.
The board complies as follows with the limit values set by the norm EN50082-2:
ESD ............................................................................ 4 kV
Fields.......................................................................... 10 V/m
Burst ........................................................................... 4 kV
Conducted radio interferences ................................... 10 V
Noise emissions ........................................................
WARNING!
The EMC tests have been carried out in a specific appliance
configuration. We guarantee these limit values only in this
configuration
4.2

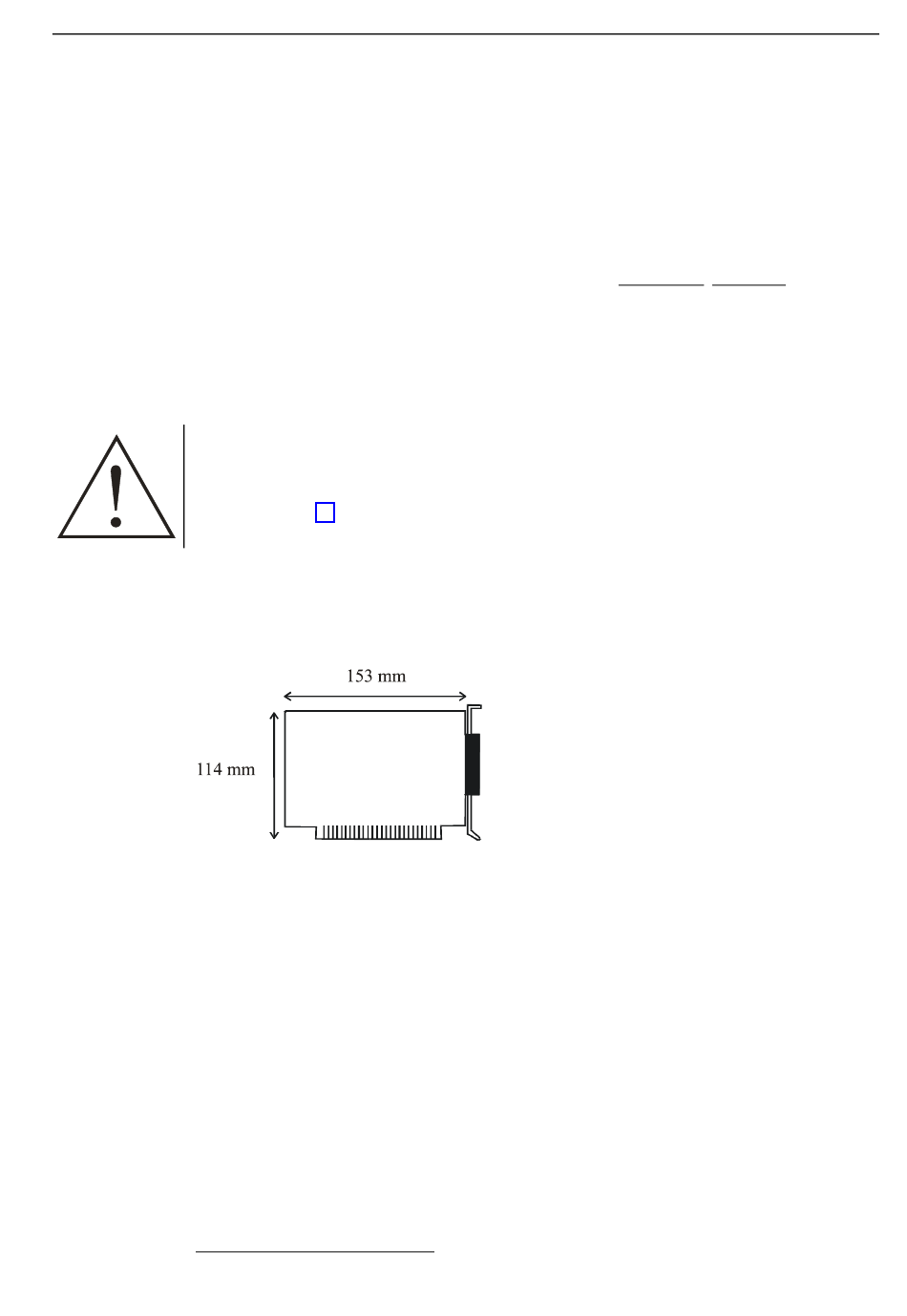

Physical set-up of the board

The board is assembled on a 4-layer printed circuit card.
Weight:
Installation in:
Connection to the peripheral through 37-pin SUB-D male connector
Standard cables:
Screw terminal boards:
1) We transmit our appliance configuration on request.
4
.
1)
Technical description
True value Set value
B-class
150 g
XT / AT slot
ST010 or ST011
PX 901-AG, PX 901-A for voltage outputs
(PA 358-4/-6/-8)
PX 901-ZG for current outputs
(PA 358-4C/-6C/-8C)
Chapter 4
4 kV
10 V/m
2 kV
10 V
