Program description

IMPORTANT!
Insert the ADDI-DATA boards to be registered before starting the
ADDIREG program.
If the board is not inserted, the user cannot test the registration.
Once the program is called up, the following dialog box appears.
The table in the middle lists the registered boards and their respective parameters.
Board name:
Names of the different registered boards
When you start the program for the first time, no board is registered in this table.
Base address:
Selected base address of the board.
IMPORTANT!
The base address selected with the ADDIREG program must correspond
to the one set through DIP-switches.
Access:
Selection of the access mode for the ADDI-DATA digital boards.
Access in 8-bit or 16-bit.
Chapter 6

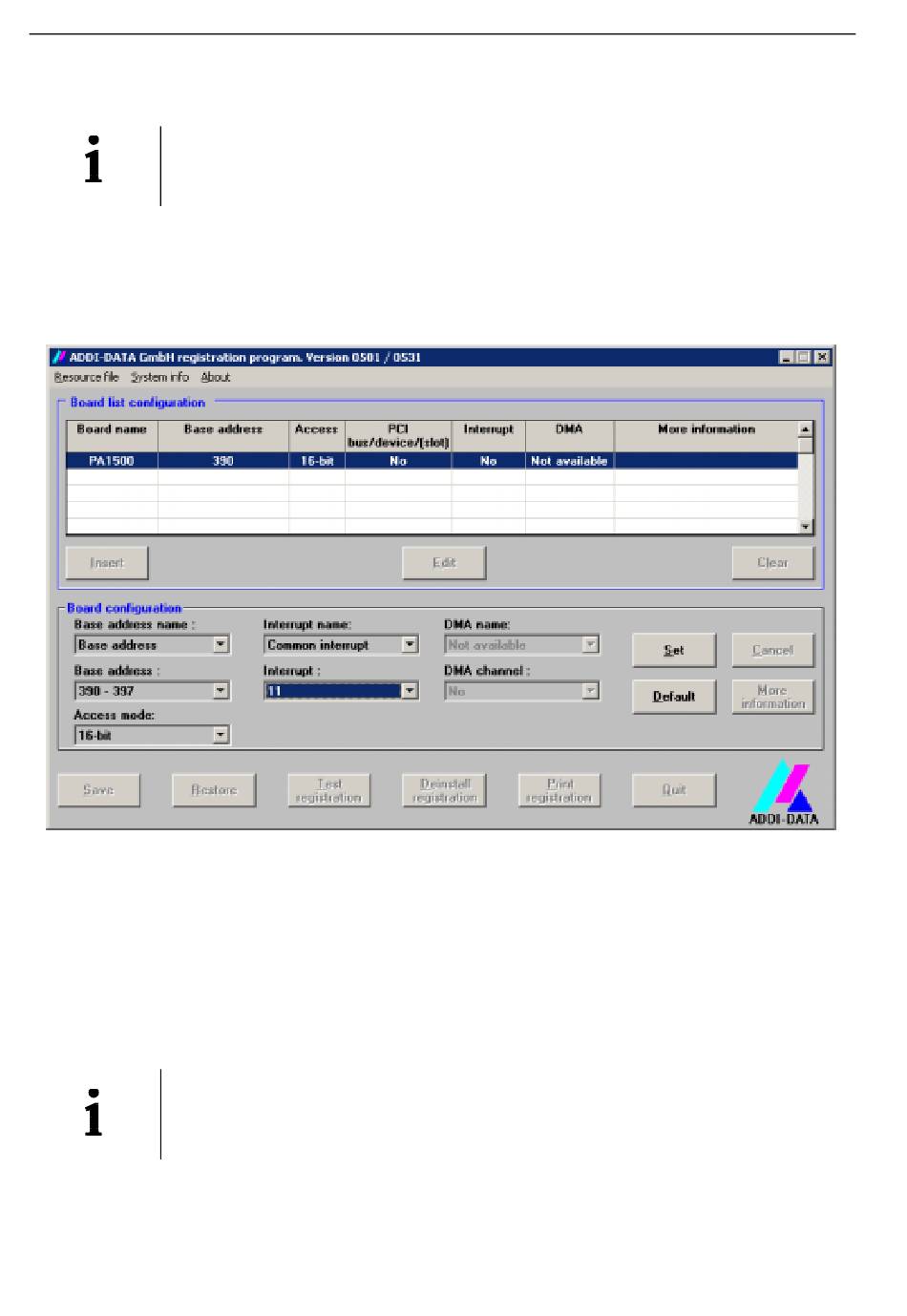

Fig. 6-7: The ADDIREG registration program
