Plugging the board into the slot

Discharge yourself from electrostatic charges
• • • •
Insert the board vertically into the chosen slot.
• • • •
Fasten the board to the rear of the PC housing with the screw which was
• • • •
fixed on the back cover.
Tigthen all loosen screws.
• • • •
6.2.3

Closing the PC

Close your PC as described in the manual of the PC manufacturer.
• • • •
14

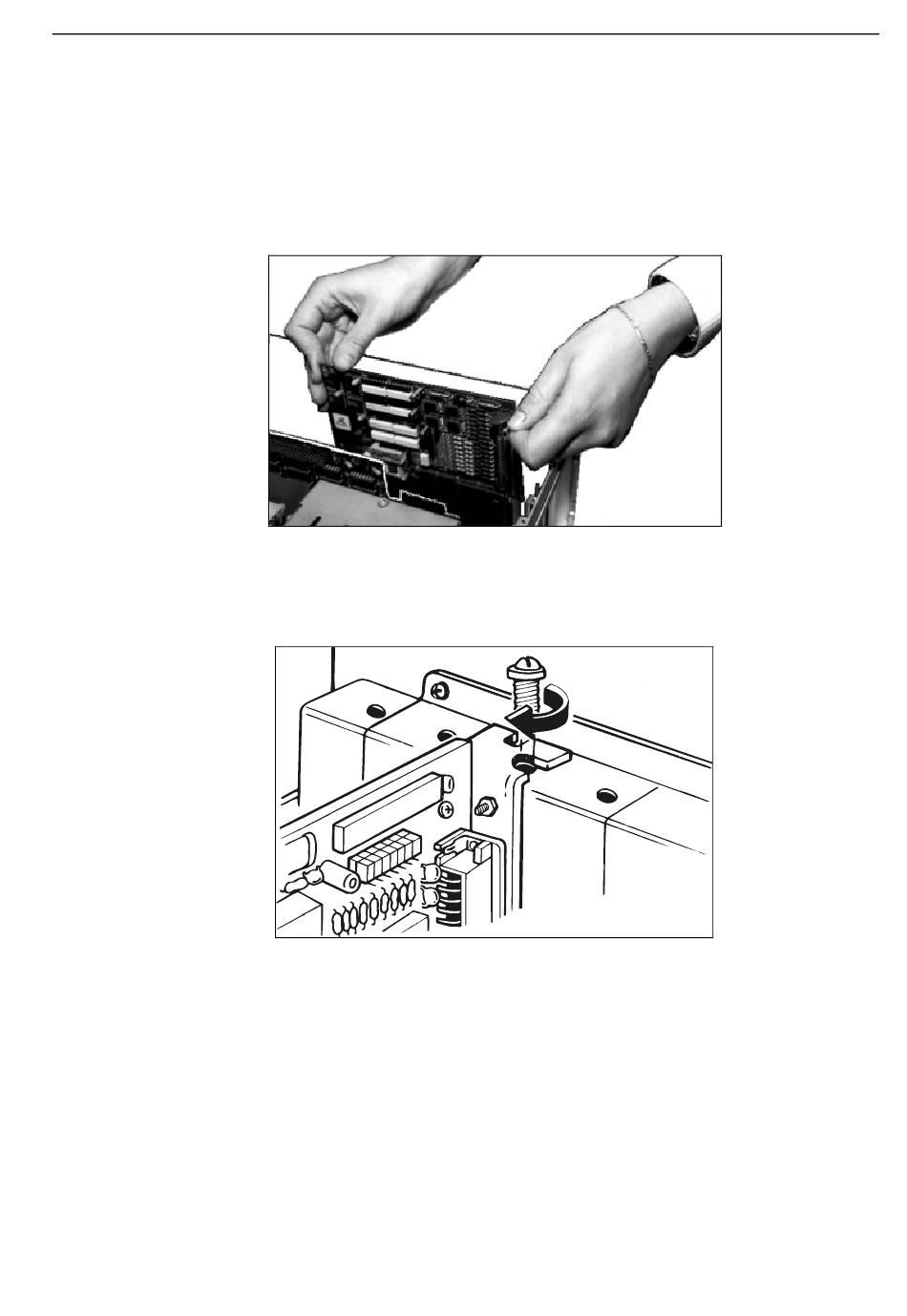

Fig. 6-4: Inserting the board

Fig. 6-5: Securing the board at the back cover
