Technical data and limit values

7 Technical data and limit values

7.1 Electromagnetic compatibility (EMC)

The board APCI-3003 is suited for installation in personal computers (PCs) which comply with the
European EMC directive.
The board APCI-3003 complies with the European EMC directive. The tests were carried out by a
certified EMC laboratory in accordance with the standard from the EN 61326 series (IEC 61326).
The limit values as set out by the European EMC directive for an industrial environment are complied
with.
The respective EMC test report is available on request.

7.2 Mechanical structure

Dimensions (L x W):
Weight:
Insertion into:
Connection to peripherals:
Front connector:
1
Accessories:
for analog inputs:
for digital I/O:
1 Not included in standard delivery
www.addi-data.com

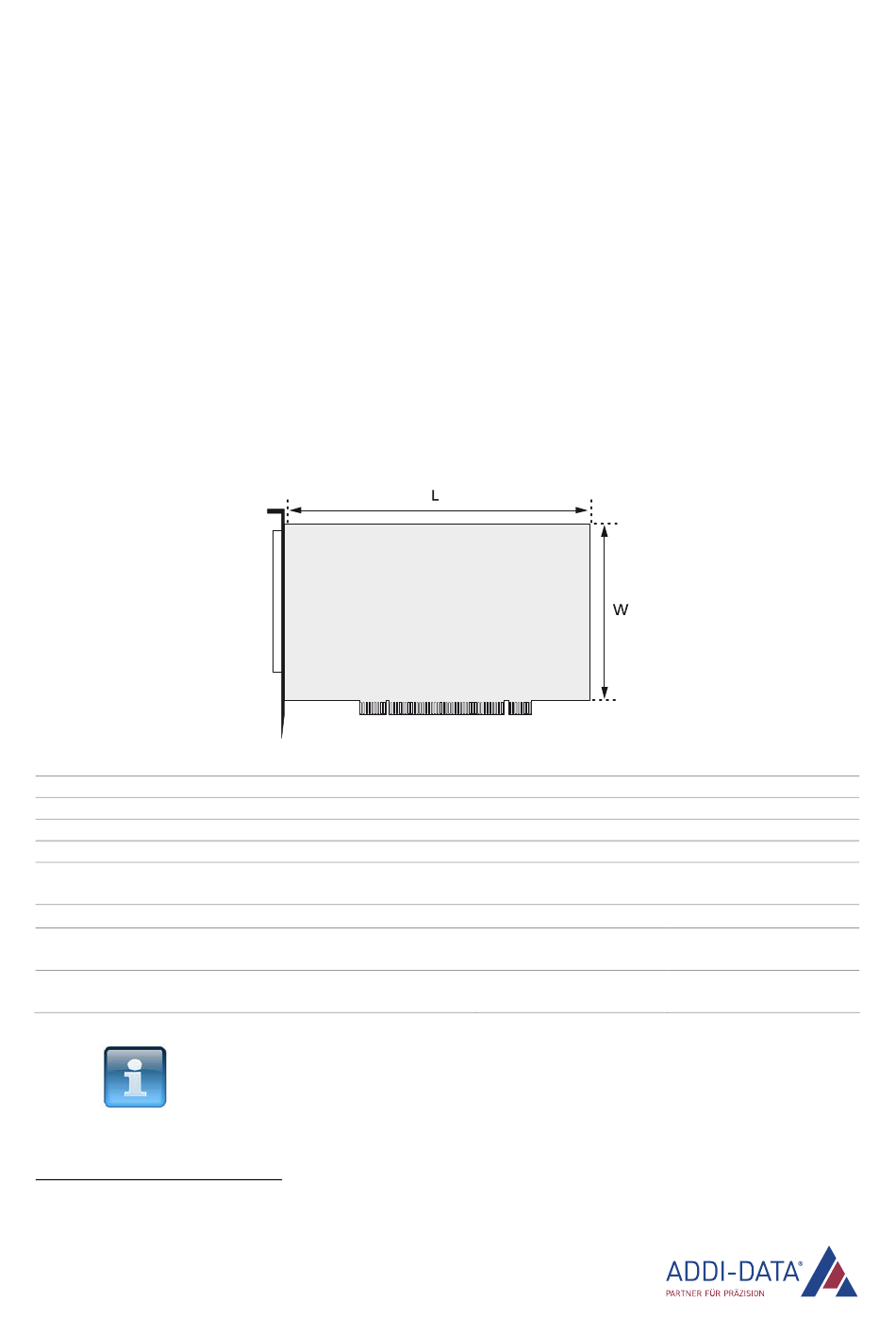

Fig. 7-1: APCI-3003: Dimensions

NOTICE!
The connection lines must be installed in such a way that they are
protected against mechanical loads.
175 x 99 mm
approx. 160 g
PCI slot
15-pin D-Sub male connector (analog inputs)
15-pin D-Sub female connector (digital I/O)
see Chapter 3.2
Cable:
Screw terminal panel:
Cable:
Screw terminal panel:
33
APCI-3003
ST3003-A
PX901-AG
ST3003-D
PX901-ZG
