APCI-3xxx
4

TECHNICAL DATA

4.1

Electromagnetic compatibility (EMC)

The board has been subjected to EMC tests in an accredited laboratory. The
board complies with the limit values set by the norms IEC61326 as follows:
ESD (Discharge by contact/air) ................. 4/8 kV
Fields .......................................................... 10 V/m
Burst ........................................................... 4 kV
Conducted radio interferences ................... 10 V
4.2

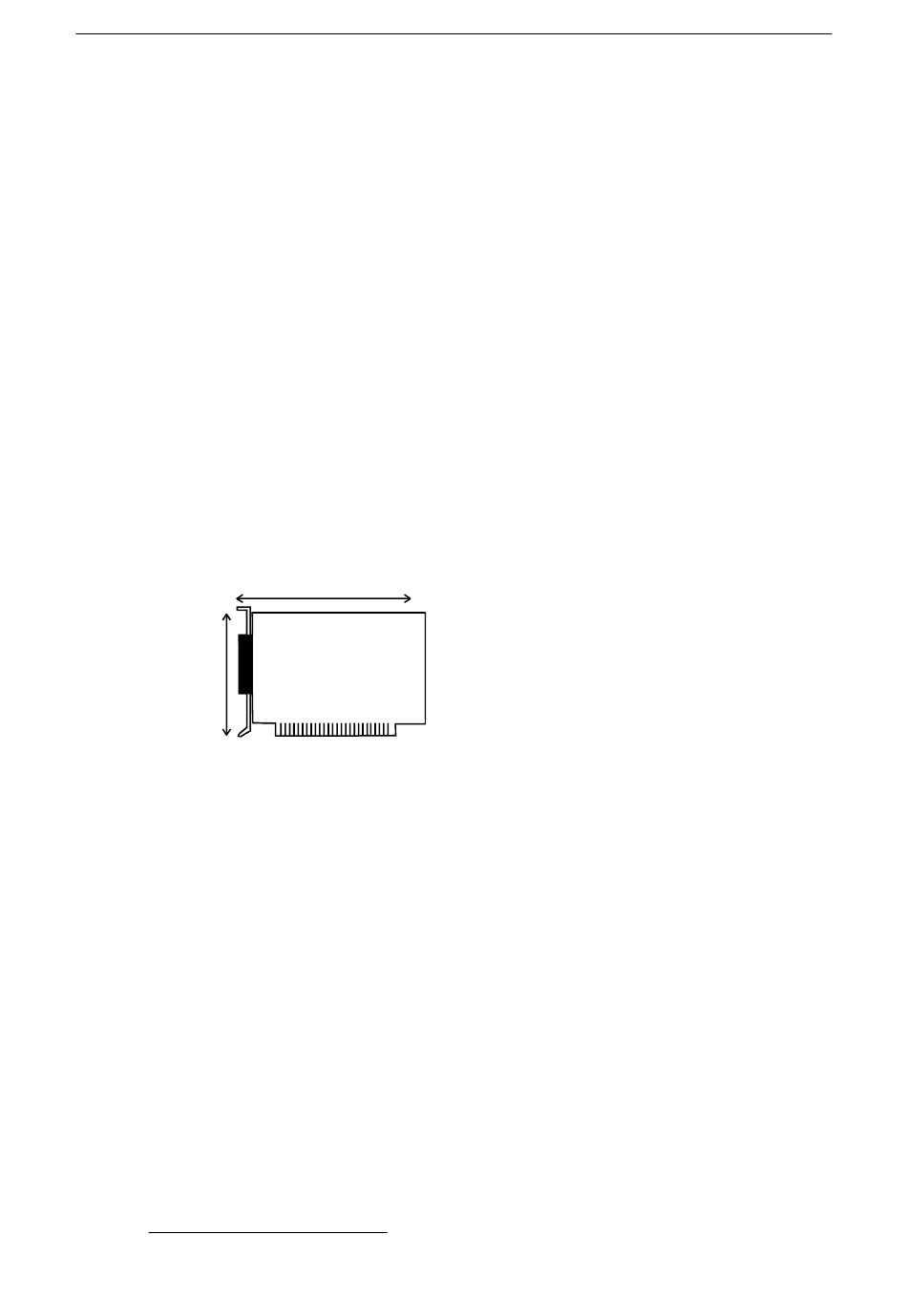

Physical set-up of the board

The board is assembled on a 4-layer printed circuit card.
Dimensions:
99 mm
Weight: ...................................................... approx. 160 g
Installation in: ............................................ 32-/64-bit PCI slot 3.3 V/5 V
Connection to peripheral:
Front connector: ........................................ 37-pin SUB-D male connector
Additional connector:
APCI-3000, APCI-3006, APCI-3100,
APCI-3106, APCI-3500: .........................50-pin male connector for the
1
Accessories
For analog I/O:
Cable: .........................................................- ST010
Screw terminal panel: ................................- PX 901-AG
or connection box: .....................................- PX-BNC
For digital I/O:
Cables:........................................................- FB 8001
....................................................................- ST370-16
Screw terminal panel:................................. - PX 8000
Not contained in the standard delivery.
1
175 mm
:
True value
TTL I/O
Technical data
Set value
4/8 kV
10 V/m
2 kV
10 V
11
