Technical Data; Electromagnetic Compatibility (Emc); Physical Set-Up Of The Board - Addi-Data PA 1508 Technical Description

Chapter 4
4

TECHNICAL DATA

4.1

Electromagnetic compatibility (EMC)

The board has been subjected to EMC tests in an accredited laboratory.
In the tested appliance configuration, the emission limit values of the board
complies with the norms EN55011 and EN55022.
The board complies with the limit values of the norm EN50082-2 as follows:
ESD ................................................................... 4 kV
Fields ................................................................. 10 V/m
Burst .................................................................. 4 kV
Conducted radio interferences........................... 10 V
WARNING!
The EMC tests have been carried out in a specific appliance
configuration. We guarantee these limit values only in this
configuration.
Consider the following aspects:
- your test program must be able to detect operation errors.
- your system must be set up so that you can find out what caused errors.
4.2

Physical set-up of the board

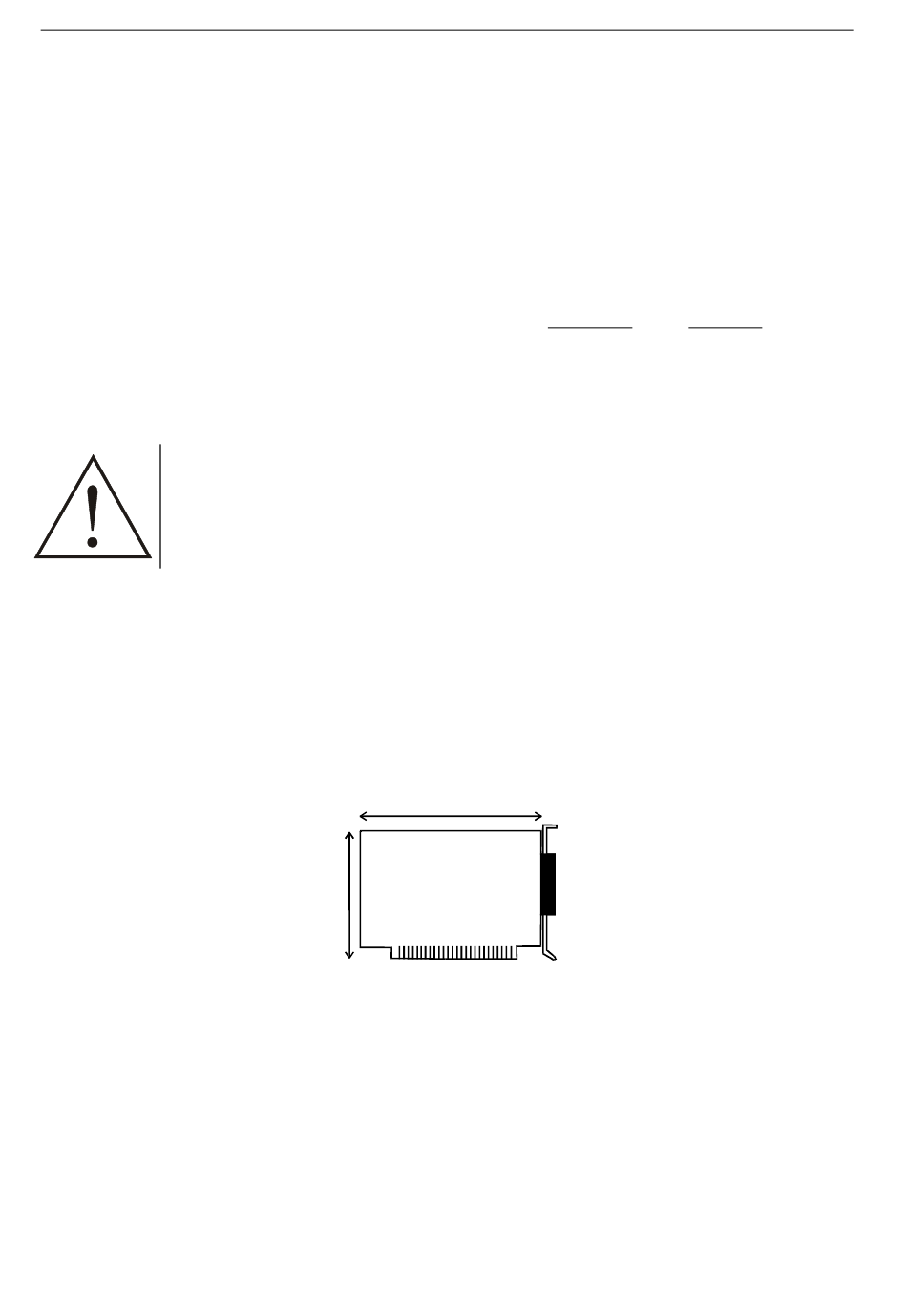

The board is assembled on a 2-layer printed circuit card.
Weight: .............................................. 102 g
Installation in...................................... XT or AT slot
Connection to the peripheral: ............ 50-pin SUB-D male connector
Accessories: ....................................... Screw terminal panel PX 9100
125 mm
91 mm
Real value
Cables: ST010, ST010-S, ST011
See connection examples.
PA 1508
Set value
4 kV
10 V/m
2 kV
10 V
5
