3
Configuration for 120/208 WYE Three-Phase Four-Wire System
Grid 1 or Grid 2 Tab
3-32

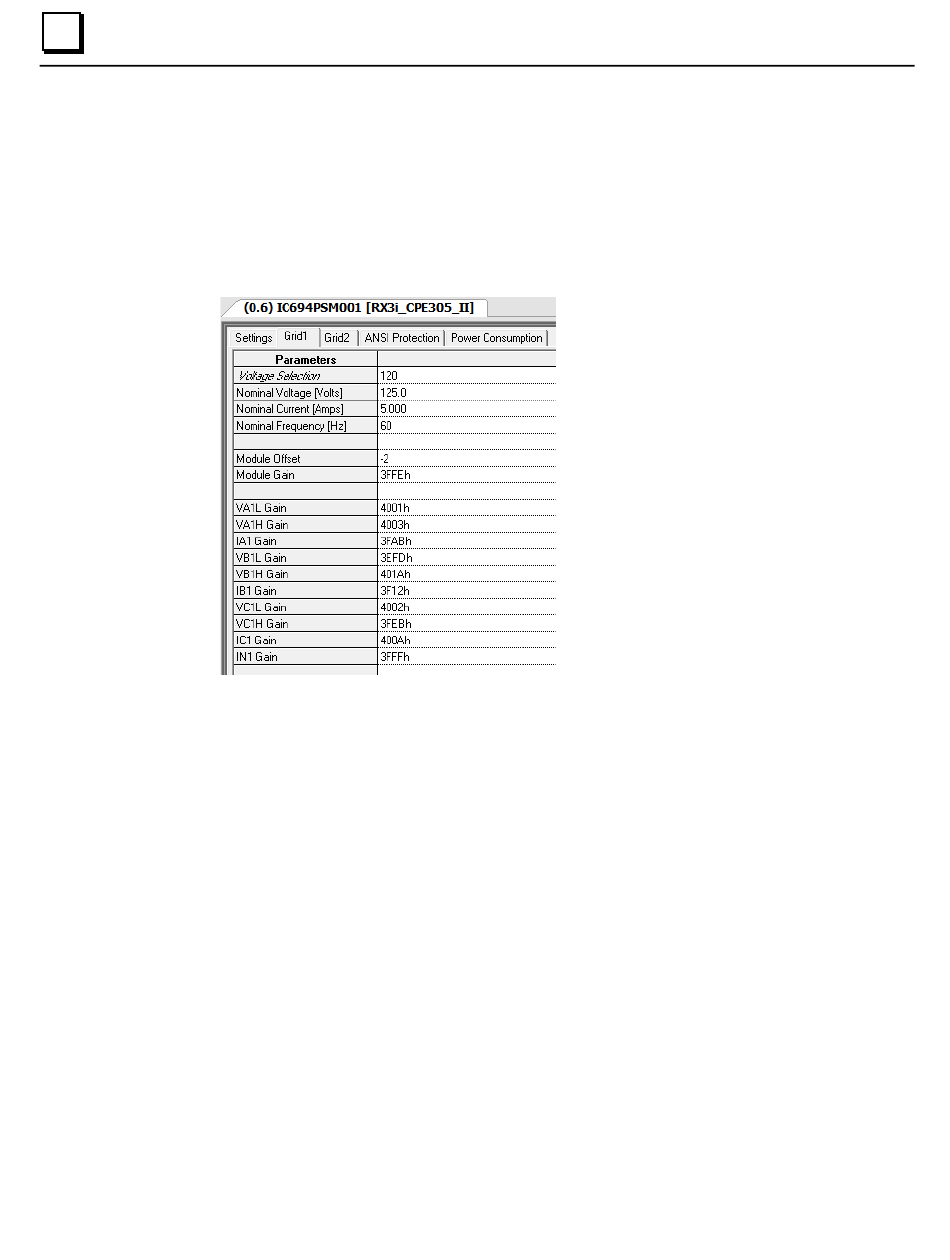

The following shows a typical hardware configuration for a 3-phase, 4-wire WYE power
monitoring application. This example shows settings for Grid 1; all the settings can be
applied to the respective Grid 2 parameters. Note that the offset and gain values were
found on the IC694PSM001 module faceplate label and on the IC694ACC200 terminal
assembly label. The Nominal Voltage is the anticipated Phase-to-Neutral voltage in the
WYE configuration.
PACSystems* RX3i Power Sync and Measurement System – February 2013
GFK-2749
