Crush Hazard - Steelcase FrameOne Manual

®

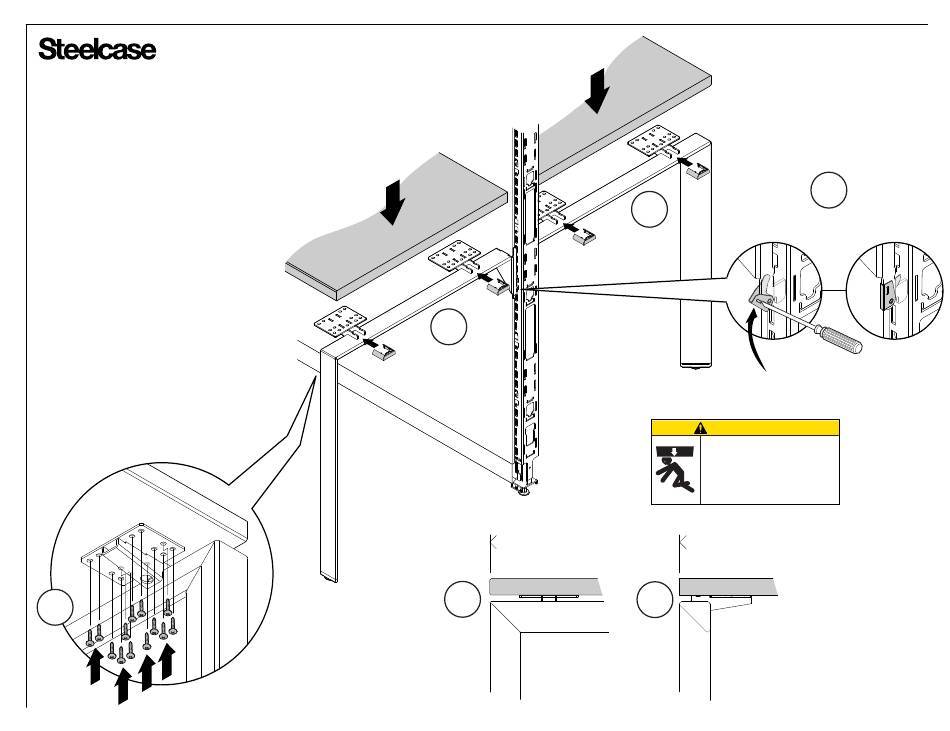

For Half Loop Legs (cont.)
3.
Rotate the safety clip into the slot in the
panel.
4.
Install the plastic covers in the two (2)
places, per leg, as shown.
5.
Place the worksurface flush with the
front face of the leg (5a). Flush the edge of
the leg with the side of the worksurface (5b).
Install twenty-six (26) #10-10 x 1" wood
screws per leg (5c).
5c
4
RH
FLUSH
5a
4
RH INSTALLATION SHOWN
LH
SAFETY CLIP
CAUTION

CRUSH HAZARD

Be sure to engage safety
clip. Failure to properly
secure bracket could
result in personal injury.
FLUSH
5b
3
Page 8 of 8
939500590 Rev F
