Steelcase FrameOne Manual

Steelcase FrameOne Manual

Mid-high storage
Hide thumbs Also See for FrameOne:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

PERPENDICULAR MIRRORED "T"
(Pages 2 - 6)
PERPENDICULAR SINGLE "L"
(Pages 2 - 6)
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2015 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
FrameOne™ or Universal Laminate -
PARALLEL "T"
(Pages 7 - 8)

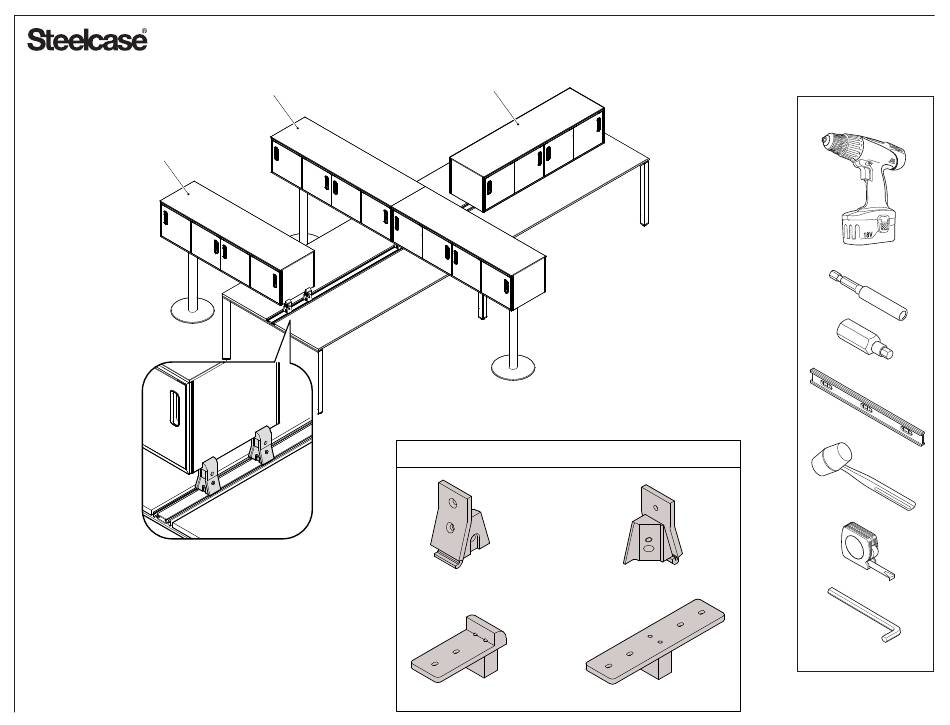

PARTS LIST - ASSEMBLED BY SUPPLIER
SUPPORT LH
SUPPORT TOP SINGLE
Mid-High Storage
SUPPORT RH
SUPPORT TOP DUAL
Page 1 of 8
939502066 Rev E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FrameOne and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase FrameOne

Summary of Contents for Steelcase FrameOne

  • Page 1 PERPENDICULAR SINGLE “L” (Pages 2 - 6) PARTS LIST - ASSEMBLED BY SUPPLIER If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at SUPPORT LH SUPPORT RH 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
  • Page 2 ® Assemble LH and RH supports to aluminum rail. A. Install LH Support into place in aluminum rail. B. Position RH Support so that it is aligned with the LH support. C. Secure the assembly with a screw. Do not completely tighten.
  • Page 3 ® CLEAN, SOFT SURFACE Assembling Mid Storage Unit to Stanchions [suggested method]: a) On a clean, soft surface free of tools, screws, debris, etc., turn the storage unit upside-down. b) Attach the "T" or "L" castings to the storage unit with the screws supplied with the stanchion hardware package.
  • Page 4 ® Slim Tall DISTANCE BETWEEN Assembling Mid Storage Unit to Stanchions, Perpendicular [suggested method] (continued) c) Measure distance between castings on storage unit, and adjust positions FOAM of stanchions on beam to match. TAPE FOAM d) Insert lower center screw into each TAPE stanchion and get the threads started.
  • Page 5 ® Assembling Mid Storage to the Column, in Perpendicular Applications c) Measure height of L-stanchion. a) Align the column base to d) Adjust the height of the column the column. so it is the same measurement as the one taken in step c. b) Attach using four (4) 1/4-20 x 1"...
  • Page 6 ® Assembling Mid Storage to the Column, Perpendicular (continued) e) Attach the column to the underside of the mid storage with eight (8) #10-32 x 1/2" pan head screws. f) Check the mid storage for level. Adjust column height if necessary by slightly lifting the base off the floor and rotating the column.
  • Page 7 Slim Tall 9" DISTANCE BETWEEN Assembling Mid Storage Unit to Stanchions, Parallel [suggested 9" method] c) Measure distance between castings FOAM on storage unit, and adjust positions TAPE of stanchions on desk to match. FOAM TAPE d) Insert lower center screw into each stanchion and get the threads started.
  • Page 8 Ganging Mid Storage Cases in Parallel Apllications NOTE: Verify that the units have the foam tape (light seal) applied prior to ganging. TIP: Mid storage units must be touching each other. BOTH UNITS a) Align the ganging plate to the TOUCHING holes on the underside of the EACH OTHER...
