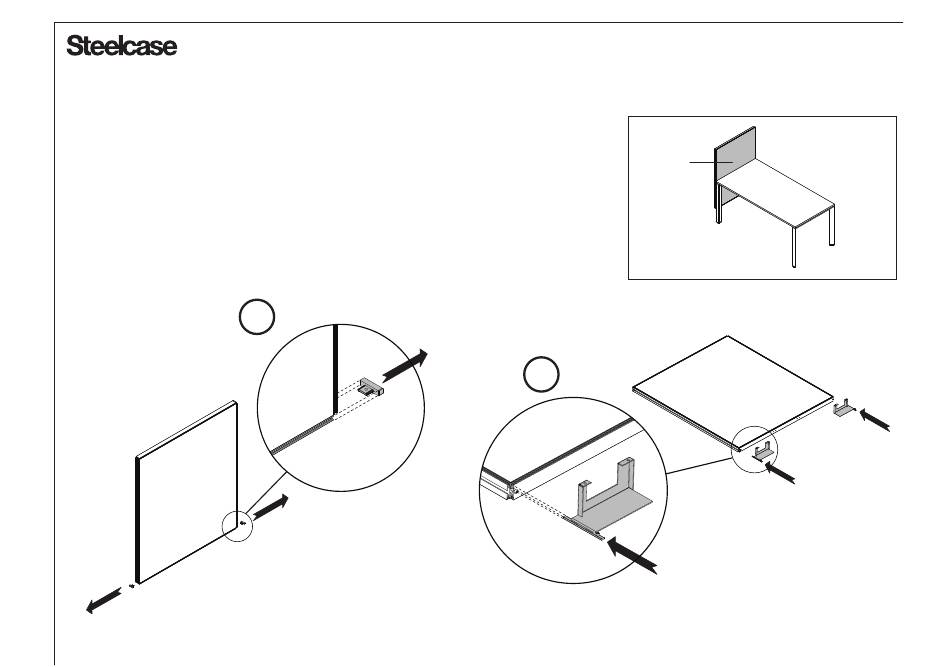

1.
Remove both of the Side Screen's bottom caps.
2. Slide the Screen Brackets into the side slot of the Side
Screen as shown. Do the same to the opposite
bracket.
1
July 2009
Assembly Instruction - Side Screen
Side
Screen
2
FRAMEONE
Page 1 of 3
