For Half Loop Legs

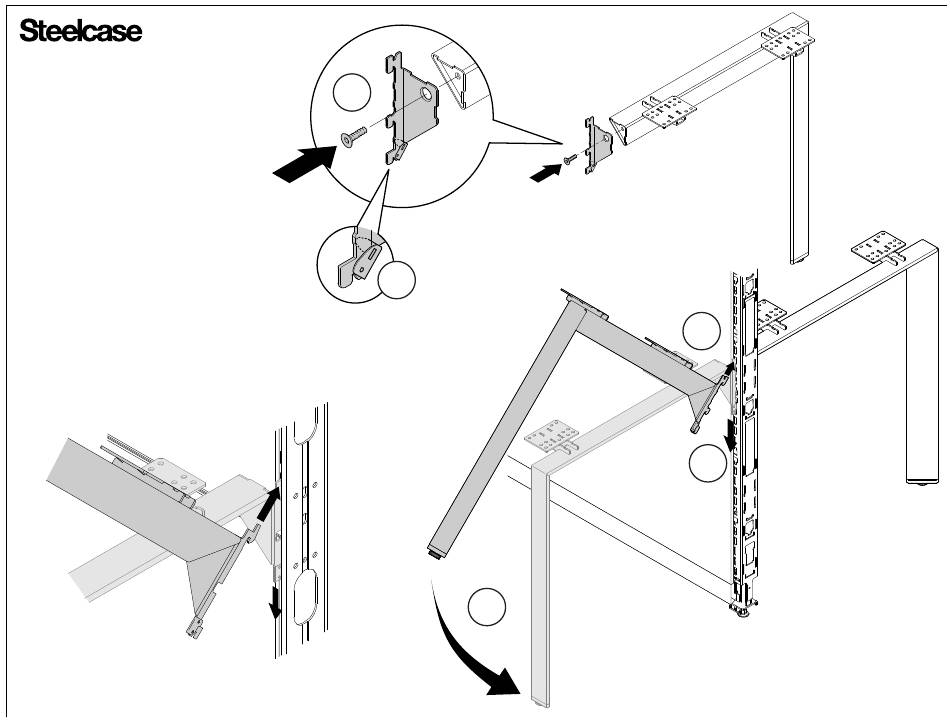

1.
Install the mounting bracket on the
half loop leg with the provided M10 flat
head screw with 6mm hex drive (1a).
Tighten securely. NOTE: Torque not to
exceed 10 ft-lbs. Make sure the spring
clip on the mounting bracket has been
rotated to the position shown (1b).
2.
Install the half loop leg assembly by
angling as shown and inserting the top
hook of the mounting bracket into the
appropriate slot in the panel (2a). Rotate
until the leg is upright (2b). The mounting
bracket should drop down into the slots
in the panel (2c).
MONTAGE RH INSTALLATION SHOWN
1a
1b
2b
RH INSTALLATION SHOWN
2a
2c
RH
LH
Page 7 of 8
939500590 Rev F
