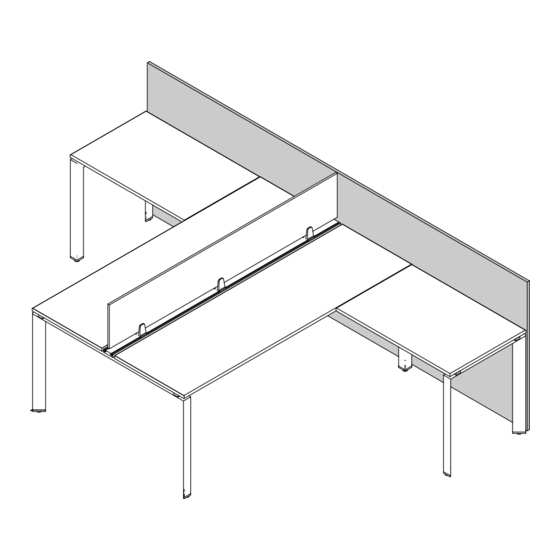

Boundary screen
Hide thumbs Also See for FrameOne:

Advertisement

Available languages

Available languages

Quick Links

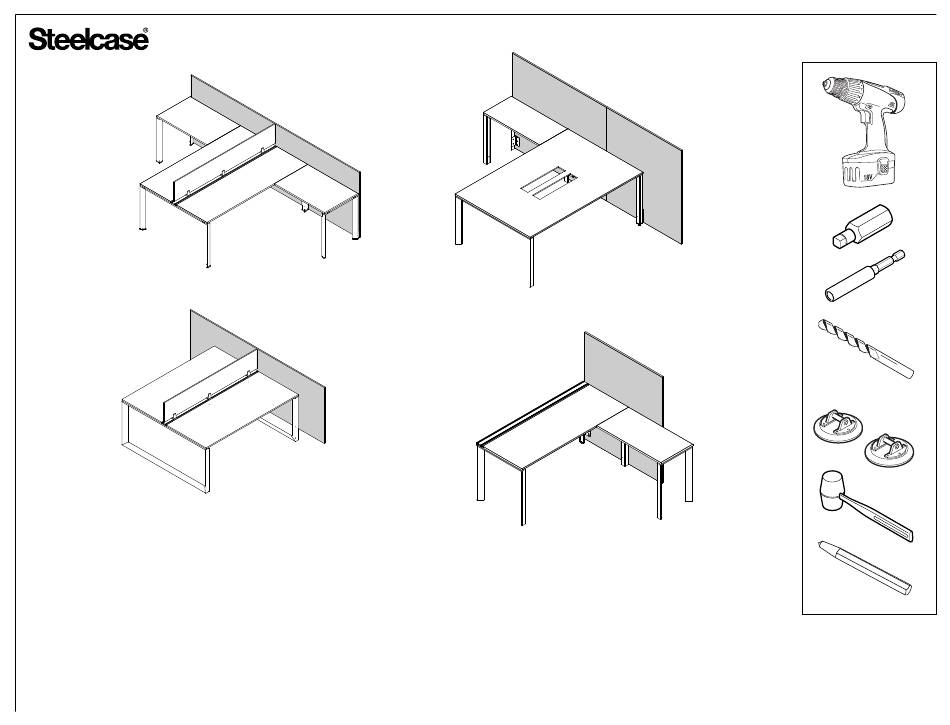

FrameOne Boundary Screen
RETURN BOUNDARY SCREEN
SEE PAGE 20
SPLIT BOUNDARY SCREEN
SEE PAGE 8
5/32" DRILL BIT
SPANNING BOUNDARY SCREEN
SEE PAGE 14
SINGLE BENCH BOUNDARY SCREEN
SEE PAGE 2
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
English - Pages 1 to 21 of 63
© 2016 Steelcase Inc.
French - Pages 22 to 42 of 63
Grand Rapids, MI 49501
Spanish - Pages 43 to 63 of 63
U.S.A.
76550 Rev B
Printed in U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FrameOne and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase FrameOne

  • Page 1 SINGLE BENCH BOUNDARY SCREEN SEE PAGE 2 If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 Single Bench Application Place Boundary Screen on a clean, scratch resistant surface. Assemble the FrameOne bench frame instruction 939500470, remove the worksurfaces. Page 2 of 63 76550 Rev B...
  • Page 3 Attach one (1) L Bracket to the screen using six (6) #10-12 x 5/8" wood screws. Attach two (2) FrameOne Leg Brackets to the screen using three (3) #10-12 x 5/8" wood screws. NOTE: Do not tighten down Leg Brackets completely.
  • Page 4 Hang the screen on the FrameOne leg. Align the screen horizontally by aligning the edge with the rail of the bench. Page 4 of 63 76550 Rev B...
  • Page 5 NOTE: The edge of the L bracket should line up with the leg edge Mark the locations for the pilot holes in the leg. Then remove the Boundary Screen from the FrameOne assembly. Use a center punch to stamp each hole location.
  • Page 6 Remove the FrameOne Leg Brackets from the Boundary Screen. 10b. Attach FrameOne Leg Bracket to FrameOne legs using two (2) #10-32 x 1/2" machine screws for each bracket. Hang the Boundary Screen on the legs, using your spacers to achieve the proper 1/2" gap.
  • Page 7 Attach the L bracket to the FrameOne leg using two (2) #10-32 x 1/2" machine screws per bracket. Attach the FrameOne Leg Brackets to the Boundary Screen with three (3) #10-12 x 5/8" wood screws per bracket. You are now ready to finish the FrameOne worksurface installation.
  • Page 8 Split Boundary Screen Application Place Boundary Screen on a clean, scratch resistant surface. Assemble the FrameOne bench frame instruction 939500470, remove the worksurfaces. Page 8 of 63 76550 Rev B...
  • Page 9 ½” Attach one (1) L Bracket to both screens using ten (10) #10-12 x 5/8” wood screws. Attach one (1) FrameOne Leg Bracket to the right and left screen using three (3) #10-12 x 5/8” wood screws. NOTE: Do not tighten down Leg Bracket completely.
  • Page 10 Hang the right screen on the FrameOne legs. Align the screen horizontally by centering the seam on the FrameOne bench. Page 10 of 63 76550 Rev B...
  • Page 11 NOTE: The edge of the L brackets should line up with the leg edge. Mark the locations for the pilot holes in the leg. Then remove the Boundary Screen from the FrameOne assembly. 11a. Use a center punch to stamp each hole location.
  • Page 12 Remove the FrameOne Leg Brackets from the Boundary Screens. 12b. Attach FrameOne Leg Brackets to FrameOne legs using two (2) #10-32 x 1/2" machine screws for each bracket. Hang the Boundary Screens on the legs, using your spacers to achieve the proper 1/2" gap.
  • Page 13 Attach the L bracket to the FrameOne leg using two (2) #10-32 x 1/2" machine screws per bracket. Attach the FrameOne Leg Brackets to the Boundary Screen with three (3) #10-12 x 5/8" wood screws per bracket. Page 13 of 63...
  • Page 14 Spanning Application Place Boundary Screen on a clean, scratch resistant surface. Assemble the FrameOne bench frame instruction 939500470, remove the worksurfaces. Page 14 of 63 76550 Rev B...
  • Page 15 Attach one (1) L Bracket to the screen using ten (10) #10-12 x 5/8 " wood screws per bracket. Attach two (2) FrameOne Leg Brackets to the screen using three (3) #10-12 x 5/8" wood screws per bracket. NOTE: Do not tighten down Leg Brackets completely.
  • Page 16 Hang the screen on the FrameOne leg. Align the screen horizontally by centering it on the frame. Page 16 of 63 76550 Rev B...
  • Page 17 NOTE: The edge of the L bracket should line up with the leg edge. Mark the locations for the pilot holes in the leg. Then remove the Boundary Screen from the FrameOne assembly. Use a center punch to stamp each hole location.
  • Page 18 Remove the FrameOne Leg Brackets from the Boundary Screen. 10b. Attach FrameOne Leg Bracket to FrameOne legs using two (2) #10-32 x 1/2" machine screws per bracket. Hang the Boundary Screen on the legs, using your spacers to achieve the proper ½" gap.
  • Page 19 Attach the L brackets to the FrameOne leg using two (2) #10-32 x 1/2" machine screws per bracket. Attach the FrameOne Leg Brackets to the Boundary Screen with three (3) #10-12 x 5/8" wood screws per bracket. You are now ready to finish the FrameOne worksurface installation.
  • Page 20 Mark the locations for the pilot holes in the leg. Remove the L brackets. Use a center punch to stamp each hole location. Drill holes in the FrameOne leg using 5/32” drill bit. Page 20 of 63 76550 Rev B...
  • Page 21 Attach the L brackets to the Frame One legs using two (2) #10-32 x 1/2" machine screws per bracket. Attach L brackets to Boundary Screen using three (3) #10-12 x 5/8" wood screws per bracket. Attach long L bracket to boundary screen using six (6) #10-12 x 5/8"...
  • Page 22 VOIR LA PAGE 23 Pour tout problème, question ou demande, communiquez avec le détaillant ou avec la ligne Steelcase au 1 888 STEELCASE (1 888 783-3522) (En dehors des É.-U., du Canada, du Mexique, de Porto Rico et des Îles Vierges Américaines, faites le 1 616 247-2500) Visitez notre site Web à...
  • Page 23 Système à banc unique Placez l'écran séparateur sur une surface propre et résistant à la rayure. Assemblez le banc FrameOne conformément aux directives n° 939500470; retirez la surface de travail. Page 23 of 63 76550 Rev B...
  • Page 24 Fixez un (1) support en « L » à l'écran au moyen de (6) vis à bois n° 10-12 x 5/8 po. Fixez deux (2) supports de patte FrameOne à l'écran au moyen de trois (3) vis à bois n° 10-12 x 5/8 po.
  • Page 25 Apposez l'écran sur la patte FrameOne. Alignez horizontalement l'écran en plaçant le bord de l'écran à égalité avec la glissière du banc. Page 25 of 63 76550 Rev B...
  • Page 26 Retirez ensuite l'écran séparateur du cadre FrameOne. Au moyen d'un poinçon, l'emplacement de chaque trou. Percez des trous dans la patte FrameOne au moyen d'une mèche de 5/32 po. Page 26 of 63 76550 Rev B...
  • Page 27 Retirez les supports de la patte FrameOne de l'écran séparateur. 10b. Fixez le support de la patte FrameOne aux pattes FrameOne au moyen de deux (2) vis taraudeuses n° 10-32 x 1/2 po pour chaque support. Apposez l'écran séparateur sur les pattes, en vous servant des cales pour aménager un espace de 1/2 po.
  • Page 28 Fixez le support en « L » à la patte FrameOne au moyen de deux (2) vis taraudeuses n° 10-32 x 1/2 po par support. Fixez les supports de patte FrameOne à l'écran séparateur au moyen de trois (3) vis à bois n°...
  • Page 29 Écran séparateur partagé Placez l'écran séparateur sur une surface propre et résistant à la rayure. Assemblez le banc FrameOne conformément aux directives n° 939500470; retirez la surface de travail. Page 29 of 63 76550 Rev B...
  • Page 30 Fixez un (1) support L sur les deux écrans en 12,6 utilisant dix (10) vis à bois n° 10-12 x 5/8 po. Fixez un (1) support de patte FrameOne à l'écran de droite au moyen de trois (3) vis à bois n° 10-12 x 5/8 po.
  • Page 31 Apposez l'écran de droite sur les pattes FrameOne. Alignez horizontalement l'écran en le centrant avec le bord non fini du banc FrameOne. Page 31 of 63 76550 Rev B...
  • Page 32 Retirez ensuite l'écran séparateur du cadre FrameOne. 11a. Au moyen d'un poinçon, marquez l'emplacement de chaque trou. 11b. Percez des trous dans la patte FrameOne au moyen d'une mèche de 5/32 po. Page 32 of 63 76550 Rev B...
  • Page 33 12a. Retirez les supports de la patte FrameOne de l'écran séparateurs. 12b. Fixez le support de la pattes FrameOne aux pattes FrameOne au moyen de deux (2) vis taraudeuses n° 10-32 x 1/2 po pour chaque support. Apposez l'écran séparateurs sur les pattes, en vous servant des cales pour aménager...
  • Page 34 Fixez le support en « L » à la patte FrameOne au moyen de deux (2) vis taraudeuses n° 10-32 x 1/2 po par support. Fixez les supports de patte FrameOne à l'écran séparateur au moyen de trois (3) vis à bois n°...
  • Page 35 Écran séparateur étendu Placez l'écran séparateur sur une surface propre et résistant à la rayure Assemblez le banc FrameOne conformément aux directives n° 939500470; retirez la surface de travail. Page 35 of 63 76550 Rev B...
  • Page 36 Fixez (1) support en « L » à l'écran au moyen de (10) vis taraudeuses n° 10-12 x 5/8 po par support. Fixez deux (2) supports de patte FrameOne à l'écran au moyen de trois (3) vis taraudeuses n° 10-12 x 5/8 po par support.
  • Page 37 Apposez l'écran sur la patte FrameOne. Alignez horizontalement l'écran en le centrant sur le cadre. Page 37 of 63 76550 Rev B...
  • Page 38 REMARQUE: Le bord du support en « L » doit s'aligner avec le bord de la patte. Marquez l'emplacement des trous de départ sur la patte. Retirez ensuite l'écran séparateur du cadre FrameOne. Au moyen d'un poinçon, marquez l'emplacement de chaque trou.
  • Page 39 10a. Retirez les supports de la patte FrameOne de l'écran séparateur. 10b. Fixez le support de la patte FrameOne aux pattes FrameOne au moyen de deux (2) vis taraudeuses n° 10-32 x 1/2 po pour chaque support. Apposez l'écran séparateur sur les pattes, en vous servant des cales pour aménager un...
  • Page 40 Fixez les supports en « L » à la patte FrameOne au moyen de deux (2) vis taraudeuses n° 10-32 x 1/2 po par support. Fixez les supports de patte FrameOne à l'écran séparateur au moyen de trois (3) vis à bois n° 10-12 x 5/8 po par support.
  • Page 41 Retirez les supports en « L ». Au moyen d'un poinçon, marquez l'emplacement de chaque trou. Percez des trous dans la patte FrameOne au moyen d'une mèche de 5/32 po. Page 41 of 63 76550 Rev B...
  • Page 42 Fixez les supports en « L » aux pattes FrameOne au moyen de deux (2) vis taraudeuses n° 10-32 x 1/2 po par support. Fixez les supports en « L » à l'écran séparateur au moyen de trois (3) vis taraudeuses n° 10-12 x 5/8 po par support.
  • Page 43 PANTALLA DE BARRERA DE EXPANSIÓN VEA PÁGINA 56 Si tiene un problema, pregunta o inquietud, llame a su distribuidor local, o a Steelcase línea 1 al PANTALLA DE BARRERA DE BANCO SIMPLE 888.STEELCASE (888.783.3522) para obtener una VEA PÁGINA 44 acción inmediata de las personas que quieren ayudarle.
  • Page 44 Aplicación banco simple Coloque la pantalla de barrera sobre una superficie limpia y resistente a rayados. Ensamble la armadura del banco FrameOne, instrucción 939500470, retire las superficies de trabajo. Page 44 of 63 76550 Rev B...
  • Page 45 Sujete un (1) soporte en L a la pantalla con tres (3) tornillos para madera n° 10-12 x 5/8 pulgadas. Sujete dos (2) soportes de la pata FrameOne a la pantalla con tres (3) tornillos para madera n° 10-12 x 5/8 pulgadas.
  • Page 46 Cuelgue la pantalla en la pata FrameOne. Alinee la pantalla horizontalmente alineando el borde con el riel del banco. Page 46 of 63 76550 Rev B...
  • Page 47 NOTA: El borde del soporte en L debe alinear con el borde de la pata. Marque en la pata las ubicaciones de los orificios guía. Luego retire la pantalla de barrera del ensamble FrameOne. Use un punzón de marcar para señalar la ubicación de cada orificio.
  • Page 48 Retire los soportes de la pata FrameOne de la pantalla de barrera. 10b. Sujete el soporte de la pata FrameOne a las patas FrameOne con dos (2) tornillos para metal n° 10-32 x ½ pulgada por cada soporte. Cuelgue la pantalla de barrera sobre las patas y usando sus espaciadores para conseguir la separación correcta de ½...
  • Page 49 Sujete el soporte en L a la pata FrameOne con dos tornillos para metal n° 10-32 x ½ pulgada por cada soporte. Sujete los soportes de la pata FrameOne a la pantalla de barrera con tres (3) tornillos para madera n° #10-12 x 5/8 pulgada por cada soporte.
  • Page 50 Aplicación con pantalla de barrera partida Coloque la pantalla de barrera sobre una superficie limpia y resistente a rayados. Ensamble el armazón del banco FrameOne, instrucción 939500470, retire las superficies de trabajo. Page 50 of 63 76550 Rev B...
  • Page 51 Conecte un (1) L Soporte a ambas pantallas usando diez (10) tornillos de madera n° #10-12 x 5/8 pulgada. ½ Conecte un (1) soporte de pierna FrameOne pulgada a la pantalla derecha e izquierda usando tres (3)# 10-12 x 5/8 "tornillos de madera.
  • Page 52 Cuelgue la pantalla derecha en las patas FrameOne. Alinee horizontalmente la pantalla centrando el borde inacabado en el banco FrameOne. Page 52 of 63 76550 Rev B...
  • Page 53 Luego retire la pantalla de barrera del ensamble FrameOne. 11a. Use un punzón de marcar para señalar la ubicación de cada orificio. 11b. Taladre orificios en la pata FrameOne con una broca de 5/32 pulgadas. Page 53 of 63 76550 Rev B...
  • Page 54 Retire los soportes de la pata FrameOne de la pantallas de barrera. 12b. Sujete el soporte de la pata FrameOne a las patas FrameOne con dos (2) tornillos para metal n° 10-32 x ½ pulgada por cada soporte. Cuelgue la pantallas de barrera en las patas usando sus espaciadores para lograr la separación...
  • Page 55 Sujete el soporte en L a la pata FrameOne con dos tornillos para metal n° 10-32 x ½ pulgada por cada soporte. Sujete los soportes de la pata FrameOne a la pantalla de barrera con tres (3) tornillos para madera n°...
  • Page 56 Aplicación expansión Coloque la pantalla de barrera sobre una superficie limpia y resistente a rayados. Ensamble el armazón del banco FrameOne, instrucción 939500470, retire las superficies de trabajo. Page 56 of 63 76550 Rev B...
  • Page 57 Sujete uno (1) soporte en L a la pantalla con dias (10) tornillos para madera n° 10-12 x 5/8 pulgadas. Sujete dos (2) soportes de la pata FrameOne a la pantalla con tres (3) tornillos para madera n° 10-12 x 5/8 pulgada.
  • Page 58 Cuelgue la pantalla en la pata FrameOne. Alinee horizontalmente la pantalla centrándola en la armadura. Page 58 of 63 76550 Rev B...
  • Page 59 Luego retire la pantalla de barrera del ensamble FrameOne. Use un punzón de marcar para señalar la ubicación de cada orificio. Taladre orificios en la pata FrameOne con una broca de 5/32 pulgadas. Page 59 of 63 76550 Rev B...
  • Page 60 Retire los soportes de la pata FrameOne de la pantalla de barrera. 10b. Sujete el soporte de la pata FrameOne a las patas FrameOne con dos (2) tornillos para metal n° 10-32 x ½ pulgada por cada soporte. Cuelgue la pantalla de barrera en las patas usando sus espaciadores para lograr la separación correcta...
  • Page 61 #10-12 x 5/8 pulgada por cada soporte. Está usted listo para terminar la instalación de la superficie de trabajo FrameOne. NOTA: Si está sujetando a un retorno FrameOne vea la página 62. Page 61 of 63 76550 Rev B...
  • Page 62 Marque en la pata las ubicaciones de los orificios guía. Retire los soportes en L. Use un punzón de marcar para señalar la ubicación de cada orificio. Taladre los orificios en la pata FrameOne con una broca de 5/32 pulgadas. Page 62 of 63 76550 Rev B...
  • Page 63 Sujete los soportes en L a las patas FrameOne con dos tornillos para metal n° 10-32 x ½ pulgada por cada soporte. Sujete los soportes en L a la pantalla de barrera con tres (3) tornillos para madera n° 10-12 x 5/8 pulgadas.
