Steelcase FrameOne Manual page 2

®
For Panel-Mounted Open
and Closed Loop Legs
NOTE: The panel must be level prior to
assembling the leg to the panel.
1.

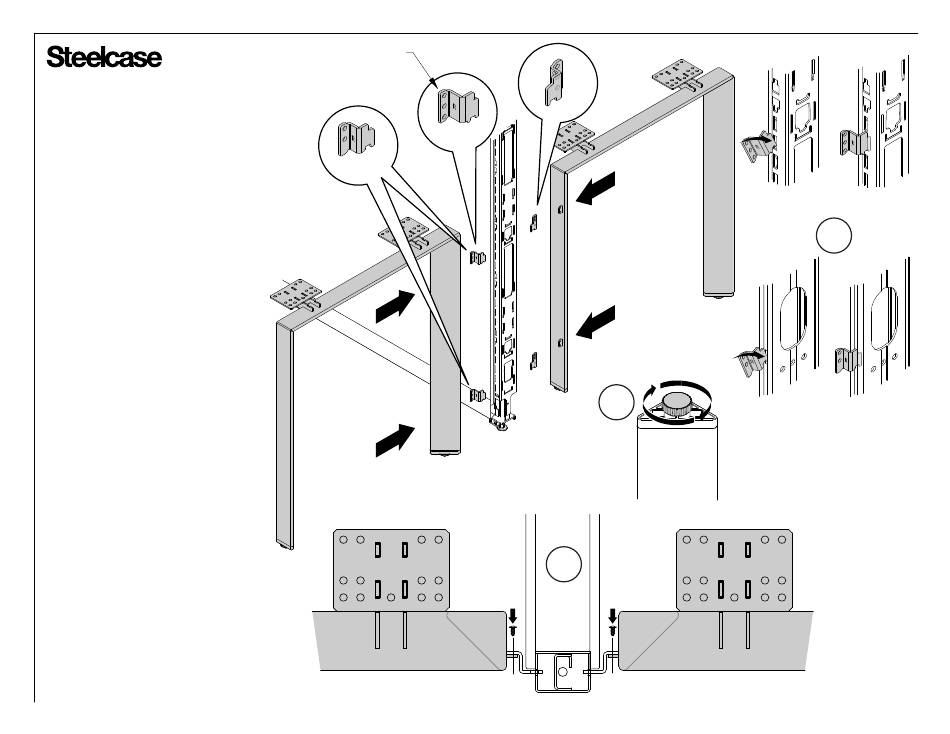

Z-shaped hook brackets are used to
connect the leg to the panel. Rotate the hook
bracket until it nests inside the panel slot at
the proper slot locations in the panel (1a).
NOTE: The hook brackets always point
"DOWN".
NOTE: "L" (for left hand) & "R" (for right
hand) is indicated on each bracket.
TIP: Place the loop leg with attachment
tabs next to the panel to get an
approximate location where the hook
brackets need to mount into the panel.
For Answer - The upper tab mounts
into the bottom two (2) holes on the hook
bracket. The lower tab mounts into the
top two (2) holes on the hook bracket.
NOTE: Make sure the glides in the loop
leg are screwed all the way in. This
helps prevent difficulty in assembling
the hooks to the panel (1b).
2.
Place the attachment tabs on the
loop leg up next to the hook brackets
as shown and install two (2) #10-24 x
3/8" self tapping screws into each hook
bracket.
NOTE: Make sure to adjust the glides
so that the glides are touching the floor.
MOUNTING HOLES
USED DEPEND ON
THE INSTALLATION
ANSWER
MONTAGE
RH
LH
1b
2
ANSWER RH INSTALLATION SHOWN
1a
MONTAGE RH INSTALLATION SHOWN
Page 2 of 8
939500590 Rev F
