600/800d intermediate leg
Hide thumbs Also See for FRAMEONE:
1
2
3

Advertisement

Table of Contents

®

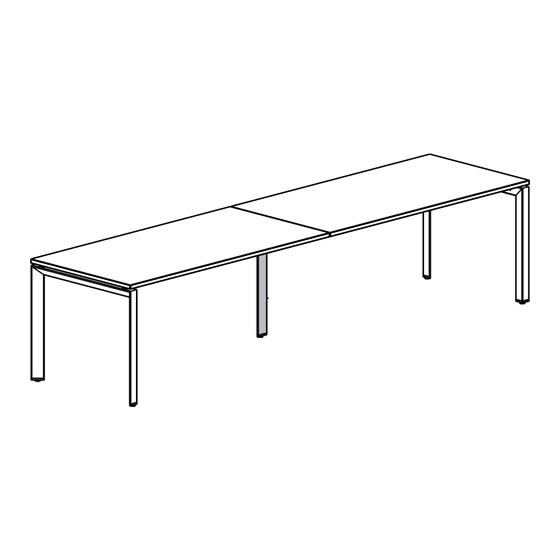

Intermediate Leg + Table

1.

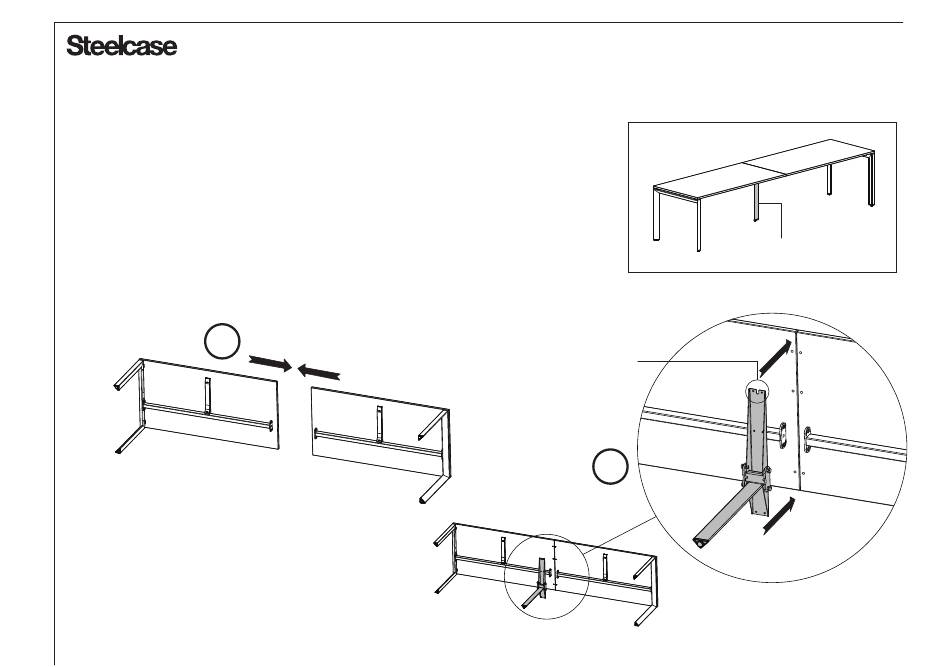

Align both left and right table together.
2. Position the Intermediate Leg in between both
connecting bracket. Make sure that the leg's
indicator slot is facing the seating side of the
table.
1
May 2009
Assembly Instruction - 600/800D Intermediate Leg
Slot is facing
the seating side
of the table
2
FRAMEONE
Intermediate Leg
Page 1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRAMEONE and is the answer not in the manual?

Questions and answers

Related Manuals for Steelcase FRAMEONE

Summary of Contents for Steelcase FRAMEONE

  • Page 1 FRAMEONE ® Assembly Instruction - 600/800D Intermediate Leg Intermediate Leg + Table Align both left and right table together. 2. Position the Intermediate Leg in between both connecting bracket. Make sure that the leg’s Intermediate Leg indicator slot is facing the seating side of the table.
  • Page 2 FRAMEONE ® Assembly Instruction - 600/800D Intermediate Leg Intermediate Leg + Table 3. Lock the Intermediate Leg in position with M10 Socket Screws and washers. - 4 screw positions 4. Fix the Intermediate Leg only to the 600 depth table top by tightening 4 x M5 screws through the channel bracket.
  • Page 3 FRAMEONE ® Assembly Instruction - 600/800D Intermediate Leg Intermediate Leg + Table 5. Completed Intermediate Leg installation for 600D and 800D desking. 800 Depth Intermediate Leg 600 Depth Intermediate Leg Page 3 of 3 May 2009...
