Steelcase FrameOne Manual

Steelcase FrameOne Manual

Continuous top bench
Hide thumbs Also See for FrameOne:
Table of Contents

Advertisement

Quick Links

Download this manual

Table of Contents

Topic
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2015 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
Page
2
3
4
5
6
8
9
10
11
12
13
14

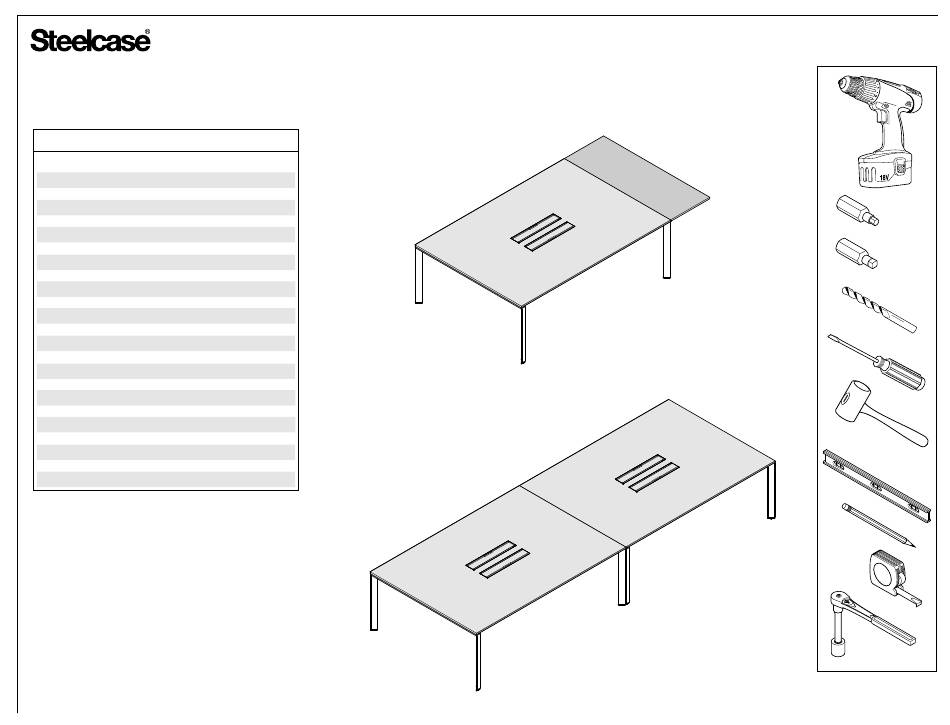

FrameOne
Bench - Continuous Top
™
Continuous Top with End Counter
Continuous Top Bench
(5mm)
HEX DRIVE
#2 SQUARE
DRIVE
1/8" Dia.
Rubber Mallet
17mm Socket
Page 1 of 16
25184001 Rev B
