Switch Adjustment

The Hopper Level Switch is pre-adjusted at the
factory to a delay of "90" seconds. The delay may be
changed for a specific installation.
Use the included Small Screw Driver included to
adjust the switch.
Time Delay Adjustment
•For Less Time: Turn the Time Delay
Adjustment Screw counter-clockwise
(light blinks faster).
•For More Time: Turn the Time Delay
Adjustment Screw clockwise. (light
blinks slower)

Hog Application

In most Hog installations, The Hopper Level Control is located in the Feeder at the end of the Fill System.
Installation is very similar to the Poultry application. Attach the Hopper Level Switch similarly to the Poultry
application shown in "Switch assembly/Installation" on page 3.
MF2486A
Install Hopper Level Switch in last Feeder.

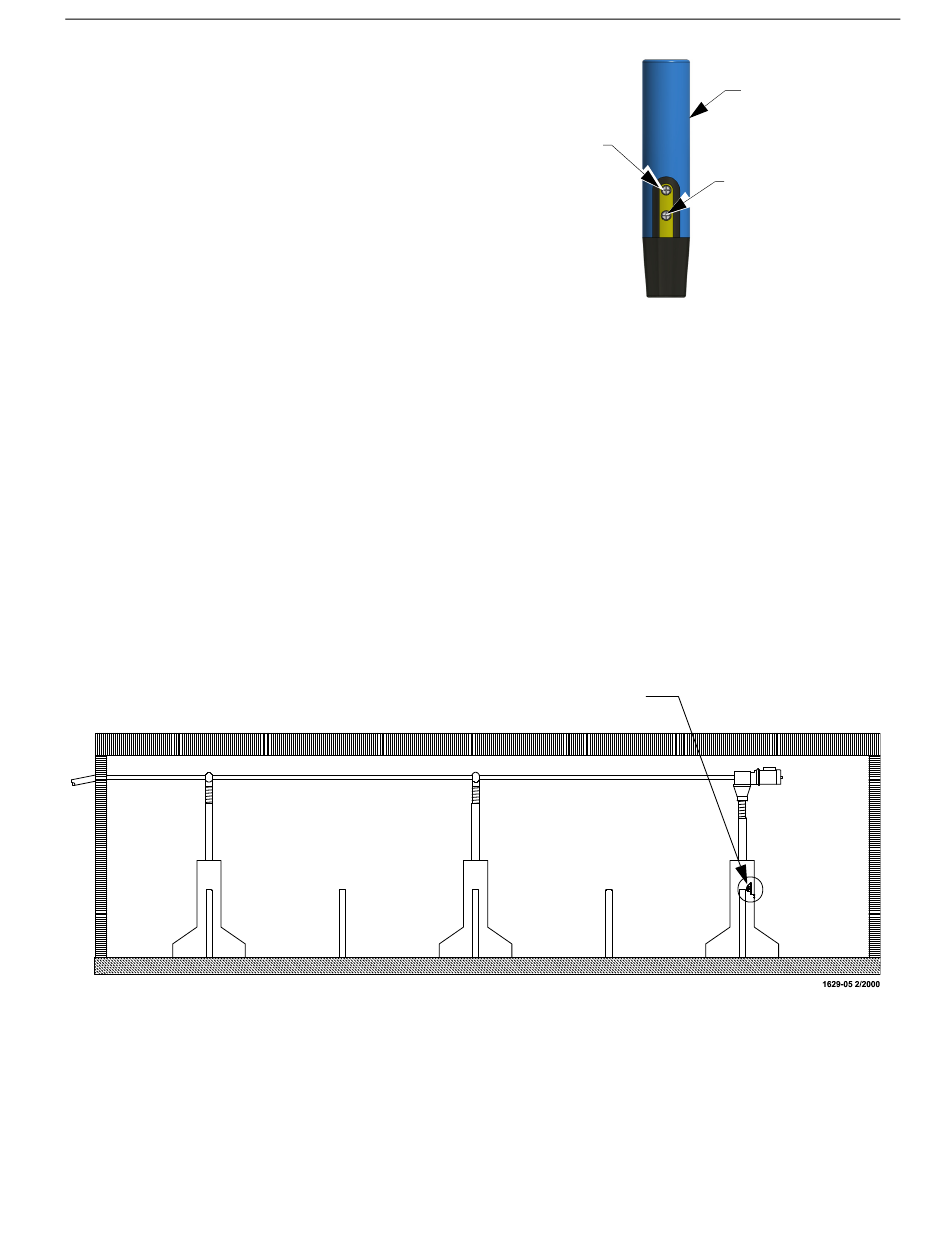

Figure 5.Switch Adjustment
Safety Timer
Adjustment Screw
Figure 4.Switch Adjustment
Installation
Proximity Sensor
Time Delay
Adjustment Screw
