Flush Mount Vent And Overflow System - BVM Grumman F-9F Cougar Construction And Operating Manual

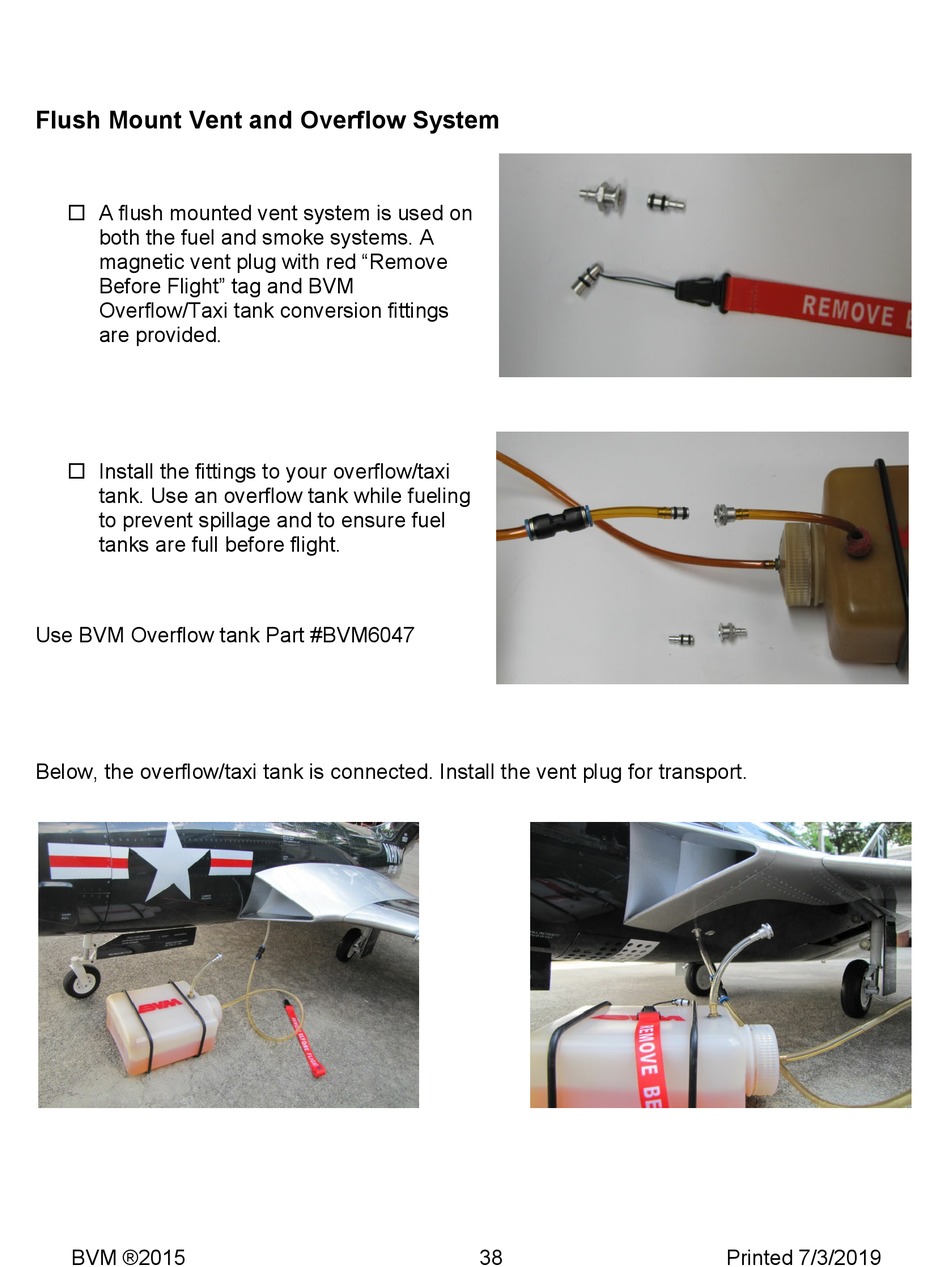

Flush Mount Vent and Overflow System

 A flush mounted vent system is used on
both the fuel and smoke systems. A
magnetic vent plug with red "Remove
Before Flight" tag and BVM
Overflow/Taxi tank conversion fittings
are provided.
 Install the fittings to your overflow/taxi
tank. Use an overflow tank while fueling
to prevent spillage and to ensure fuel
tanks are full before flight.
Use BVM Overflow tank Part #BVM6047
Below, the overflow/taxi tank is connected. Install the vent plug for transport.
BVM ®2015 38 Printed 7/3/2019
