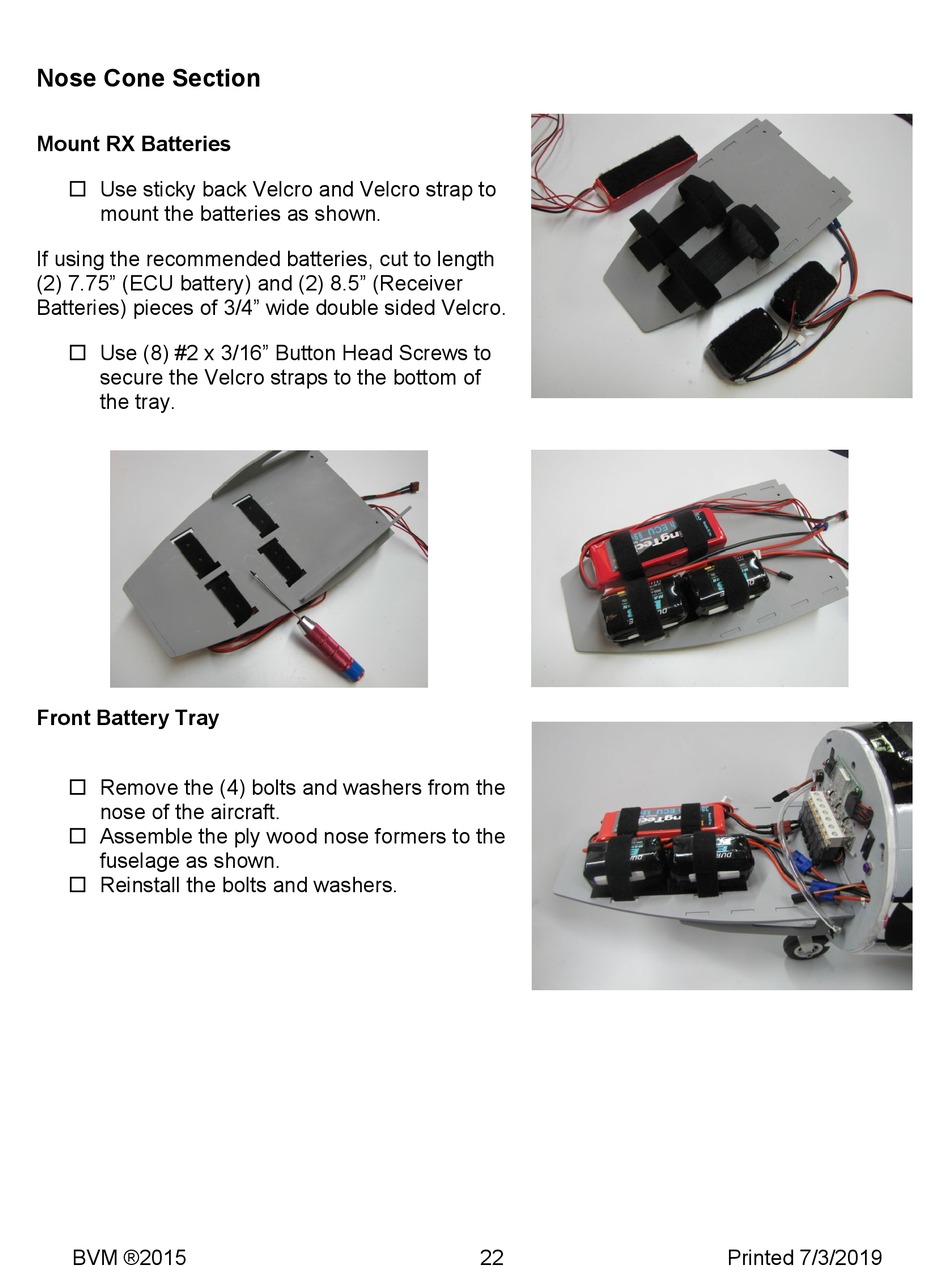

Nose Cone Section

Mount RX Batteries

 Use sticky back Velcro and Velcro strap to
mount the batteries as shown.
If using the recommended batteries, cut to length
(2) 7.75" (ECU battery) and (2) 8.5" (Receiver
Batteries) pieces of 3/4" wide double sided Velcro.
 Use (8) #2 x 3/16" Button Head Screws to
secure the Velcro straps to the bottom of
the tray.

Front Battery Tray

 Remove the (4) bolts and washers from the
nose of the aircraft.
 Assemble the ply wood nose formers to the
fuselage as shown.
 Reinstall the bolts and washers.
