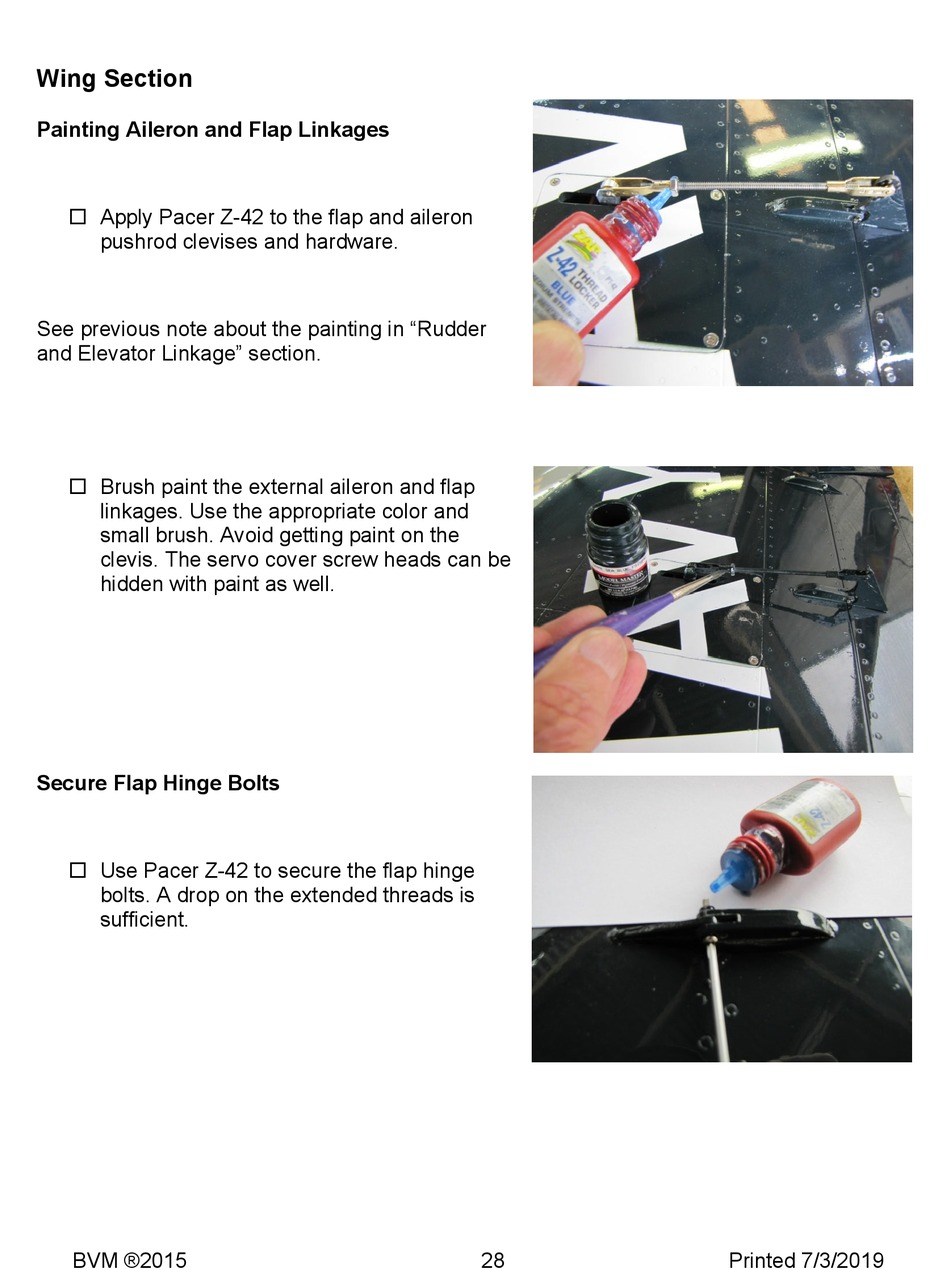

Wing Section

Painting Aileron and Flap Linkages

 Apply Pacer Z-42 to the flap and aileron
pushrod clevises and hardware.
See previous note about the painting in "Rudder
and Elevator Linkage" section.
 Brush paint the external aileron and flap
linkages. Use the appropriate color and
small brush. Avoid getting paint on the
clevis. The servo cover screw heads can be
hidden with paint as well.

Secure Flap Hinge Bolts

 Use Pacer Z-42 to secure the flap hinge
bolts. A drop on the extended threads is
sufficient.
BVM ®2015 28 Printed 7/3/2019
