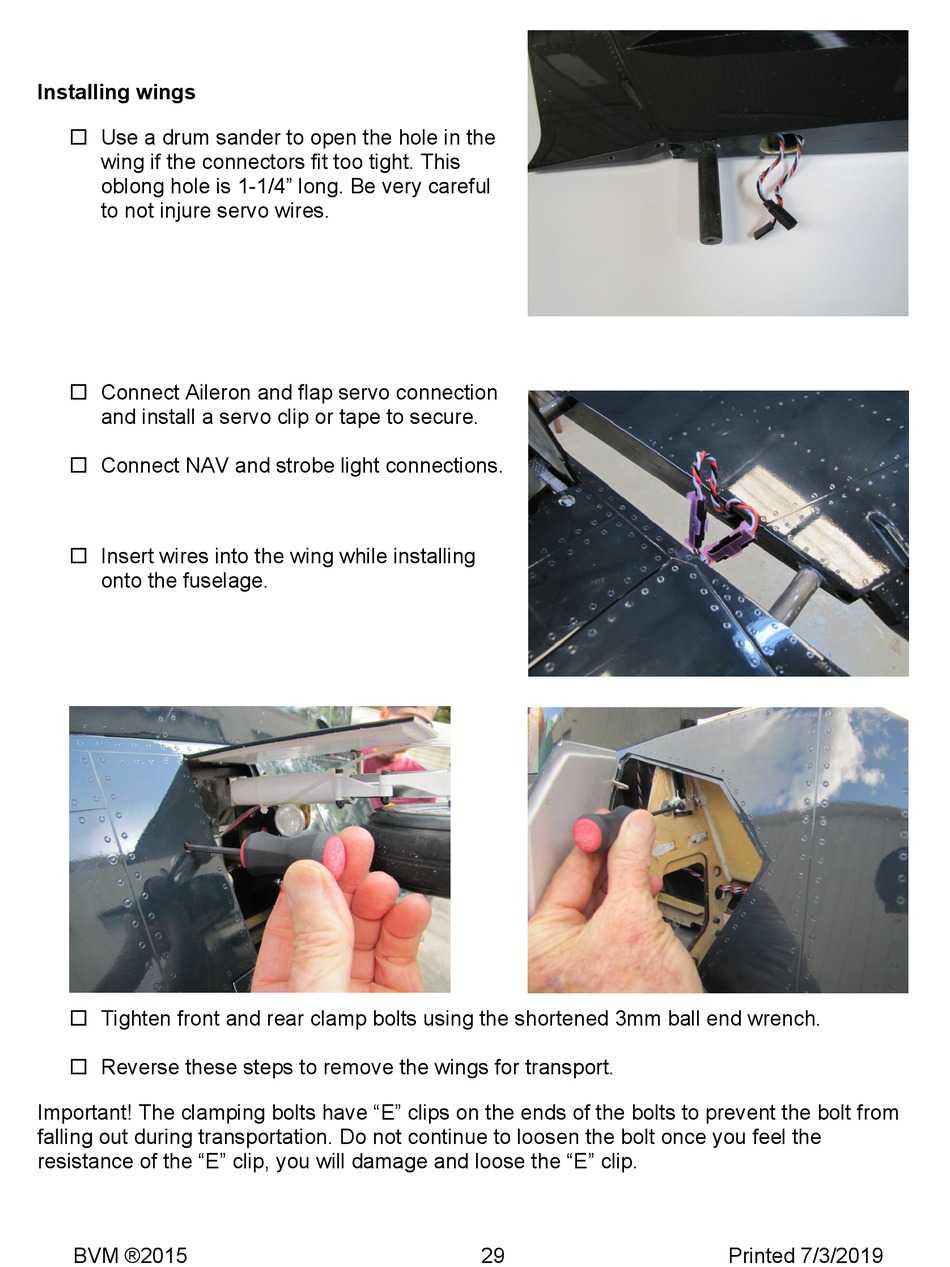

Installing wings

 Use a drum sander to open the hole in the
wing if the connectors fit too tight. This
oblong hole is 1-1/4" long. Be very careful
to not injure servo wires.
 Connect Aileron and flap servo connection
and install a servo clip or tape to secure.
 Connect NAV and strobe light connections.
 Insert wires into the wing while installing
onto the fuselage.
 Tighten front and rear clamp bolts using the shortened 3mm ball end wrench.
 Reverse these steps to remove the wings for transport.
Important! The clamping bolts have "E" clips on the ends of the bolts to prevent the bolt from
falling out during transportation. Do not continue to loosen the bolt once you feel the
resistance of the "E" clip, you will damage and loose the "E" clip.
