When the link to the GDM is established, you can read system data from the GDM by a
click on <Autodetect system info>.
 For more information on the fields, please refer to chapter 7.2.2 "Link configuration".

"System-Info" tab

8.2.2
The "System info" tab provides information about the link from ibaPDA to the SIMATIC
TDC system.

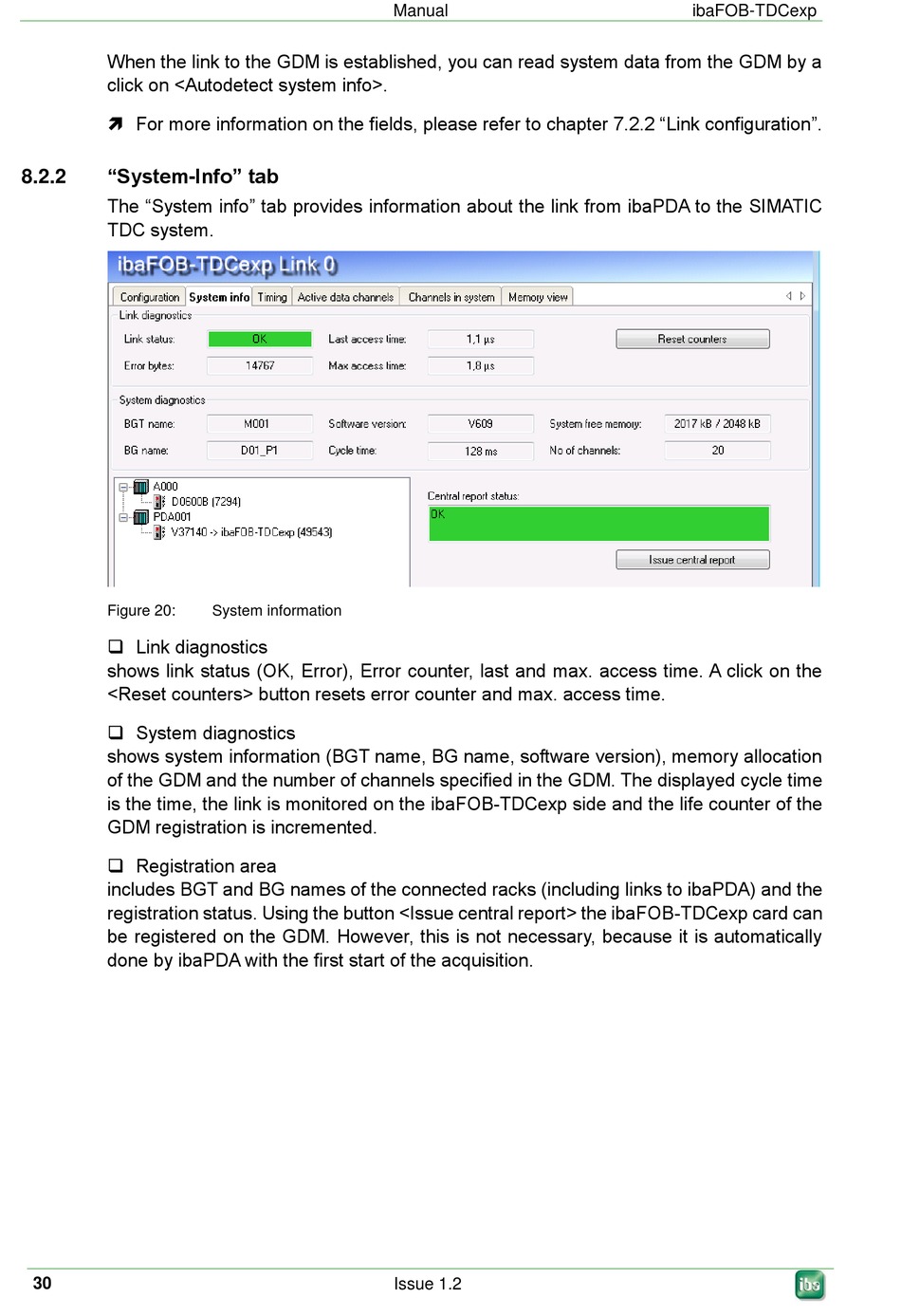

Figure 20:
 Link diagnostics
shows link status (OK, Error), Error counter, last and max. access time. A click on the
<Reset counters> button resets error counter and max. access time.
 System diagnostics
shows system information (BGT name, BG name, software version), memory allocation
of the GDM and the number of channels specified in the GDM. The displayed cycle time
is the time, the link is monitored on the ibaFOB-TDCexp side and the life counter of the
GDM registration is incremented.
 Registration area
includes BGT and BG names of the connected racks (including links to ibaPDA) and the
registration status. Using the button <Issue central report> the ibaFOB-TDCexp card can
be registered on the GDM. However, this is not necessary, because it is automatically
done by ibaPDA with the first start of the acquisition.
