ibaFOB-TDCexp

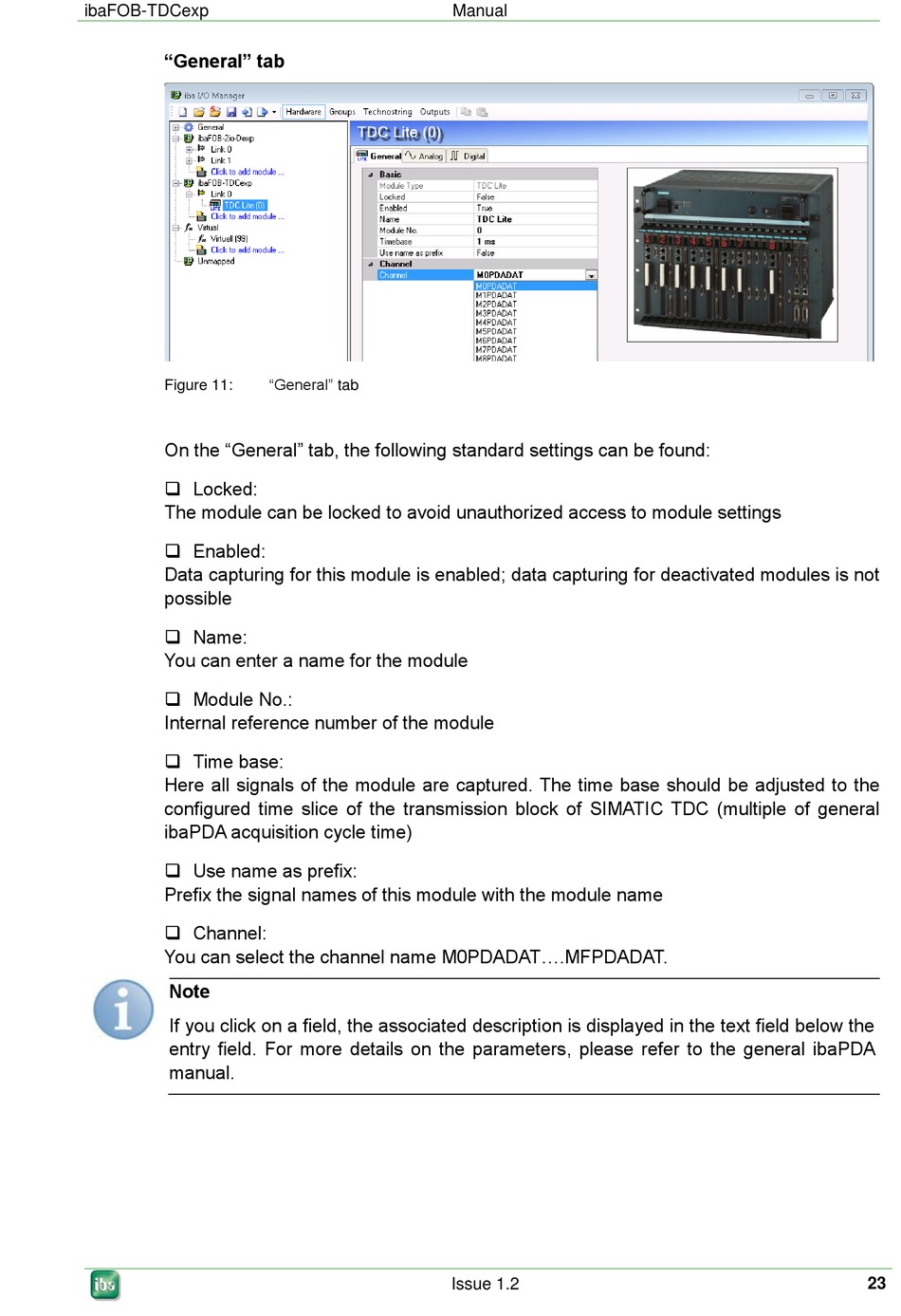

"General" tab
Figure 11:
On the "General" tab, the following standard settings can be found:
 Locked:
The module can be locked to avoid unauthorized access to module settings
 Enabled:
Data capturing for this module is enabled; data capturing for deactivated modules is not
possible
 Name:
You can enter a name for the module
 Module No.:
Internal reference number of the module
 Time base:
Here all signals of the module are captured. The time base should be adjusted to the
configured time slice of the transmission block of SIMATIC TDC (multiple of general
ibaPDA acquisition cycle time)
 Use name as prefix:
Prefix the signal names of this module with the module name
 Channel:
You can select the channel name M0PDADAT....MFPDADAT.
Note
If you click on a field, the associated description is displayed in the text field below the
entry field. For more details on the parameters, please refer to the general ibaPDA
manual.
"General" tab
