ibaFOB-TDCexp

Plug and socket connections

5.5

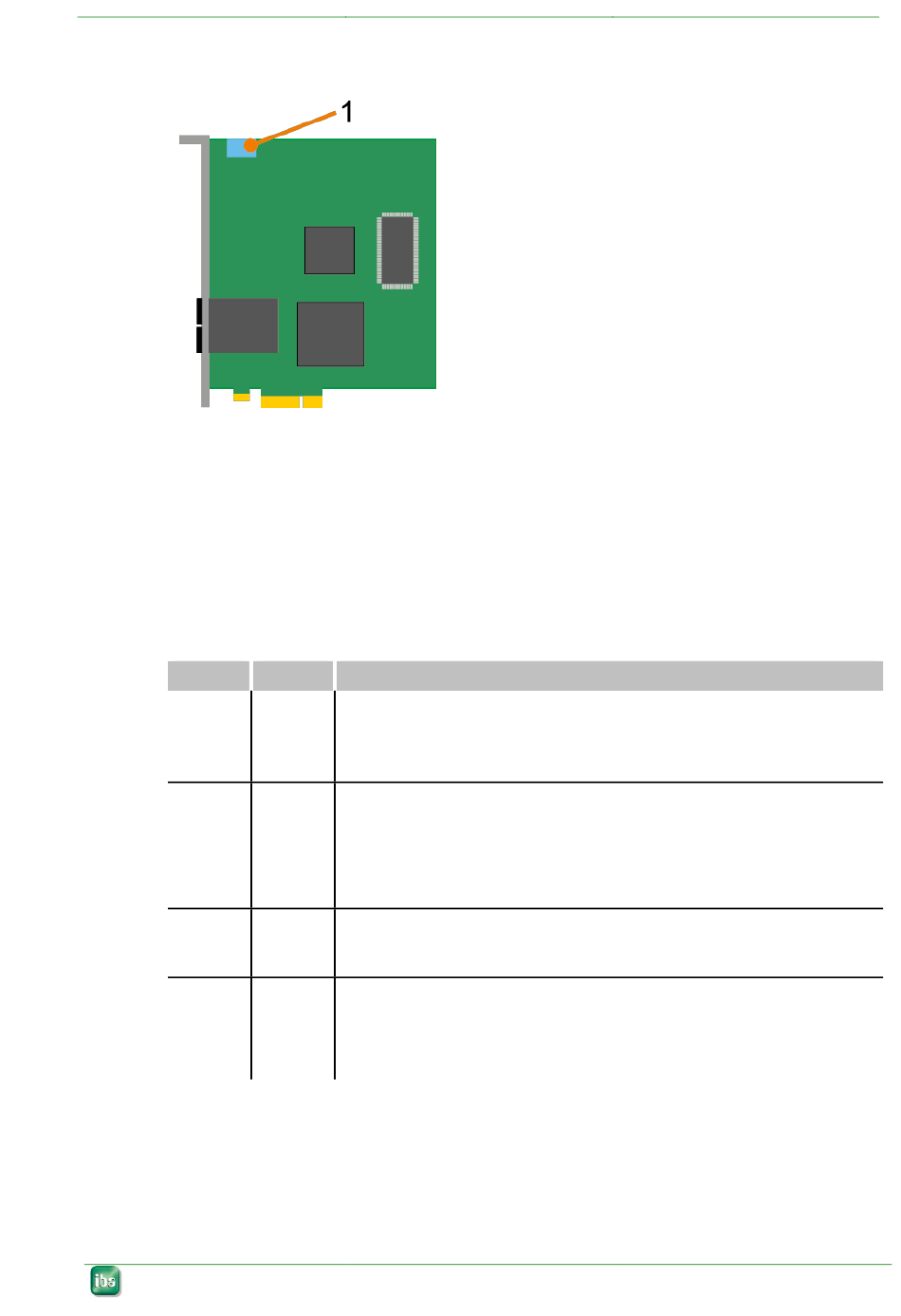

Figure 3:

Indicators

5.6
5.6.1

Device status LEDs

LEDs indicate the operational state of the card and fiber optic channels. On power on all
LEDs are lit for a few seconds to prove their proper function.
LED
(green) Off
(yellow)
(white)
(red)
Plug and socket connections
Status
Indication
Card is dead or defect
Blinking
Normal operation
Off
No signals detected; fiber optics not connected or TDC is
switched off
Blinking
Connection ok, but TDC system not ready
On
Connection ok, TDC system ready
Off
No data transfer
On
Data transfer in progress
Off
Normal state
Blinking
Running in FPGA factory rescue mode
On
Hardware failure (FPGA not configured)
Manual
1 Synchronization (Sync-IRQ-connector)
Issue 1.2
11
