ibaFOB-TDCexp
7.2.2

Link configuration

If you mark the „Link 0" under the ibaFOB-TDCexp card in the signal tree, then the menus
for diagnostics of the communication connection appear on the right side.

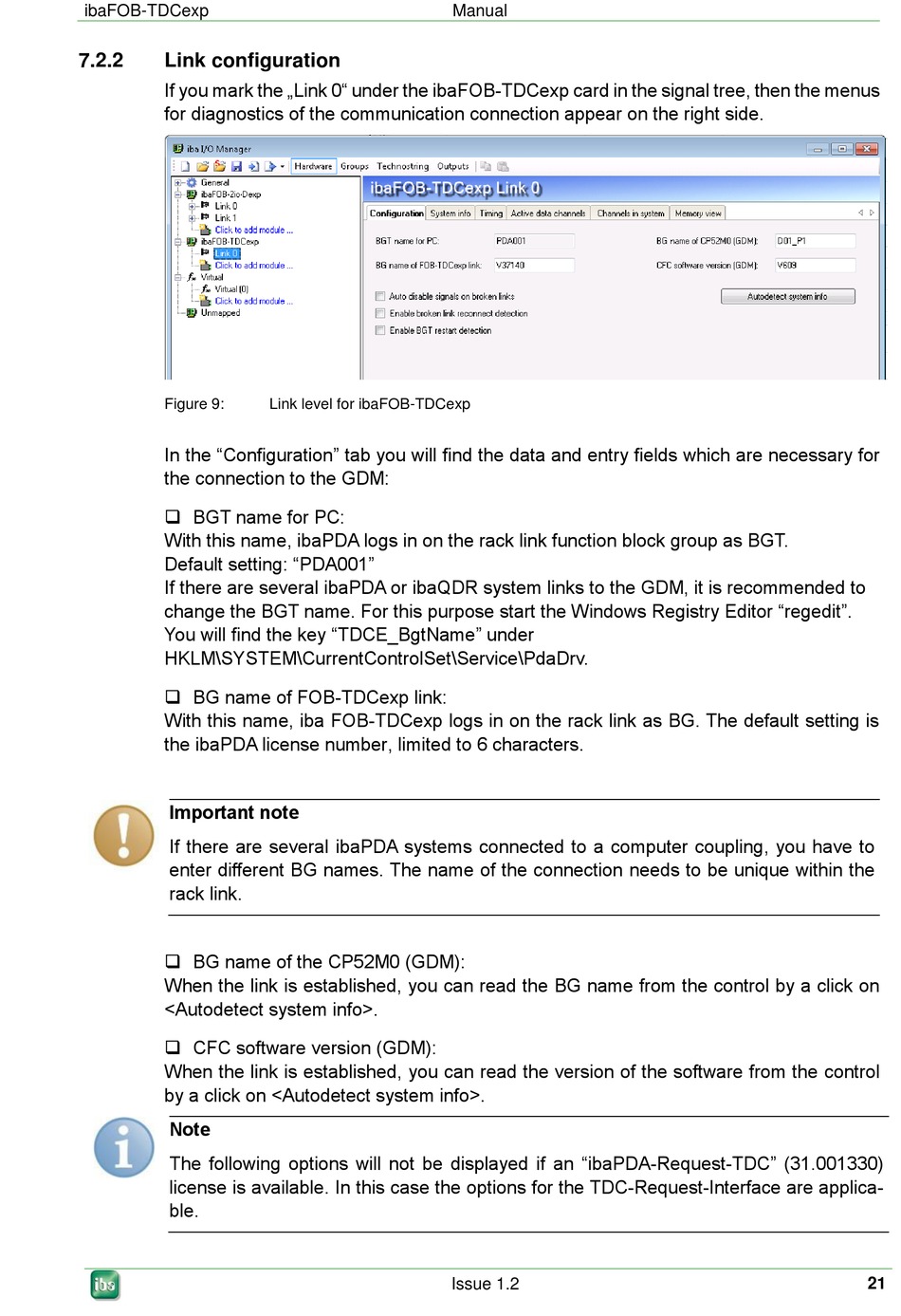

Figure 9:
In the "Configuration" tab you will find the data and entry fields which are necessary for
the connection to the GDM:
 BGT name for PC:
With this name, ibaPDA logs in on the rack link function block group as BGT.
Default setting: "PDA001"
If there are several ibaPDA or ibaQDR system links to the GDM, it is recommended to
change the BGT name. For this purpose start the Windows Registry Editor "regedit".
You will find the key "TDCE_BgtName" under
HKLM\SYSTEM\CurrentControlSet\Service\PdaDrv.
 BG name of FOB-TDCexp link:
With this name, iba FOB-TDCexp logs in on the rack link as BG. The default setting is
the ibaPDA license number, limited to 6 characters.
Important note
If there are several ibaPDA systems connected to a computer coupling, you have to
enter different BG names. The name of the connection needs to be unique within the
rack link.
 BG name of the CP52M0 (GDM):
When the link is established, you can read the BG name from the control by a click on
<Autodetect system info>.
 CFC software version (GDM):
When the link is established, you can read the version of the software from the control
by a click on <Autodetect system info>.
Note
The following options will not be displayed if an "ibaPDA-Request-TDC" (31.001330)
license is available. In this case the options for the TDC-Request-Interface are applica-
ble.
Link level for ibaFOB-TDCexp
Manual
Issue 1.2
21
