5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).

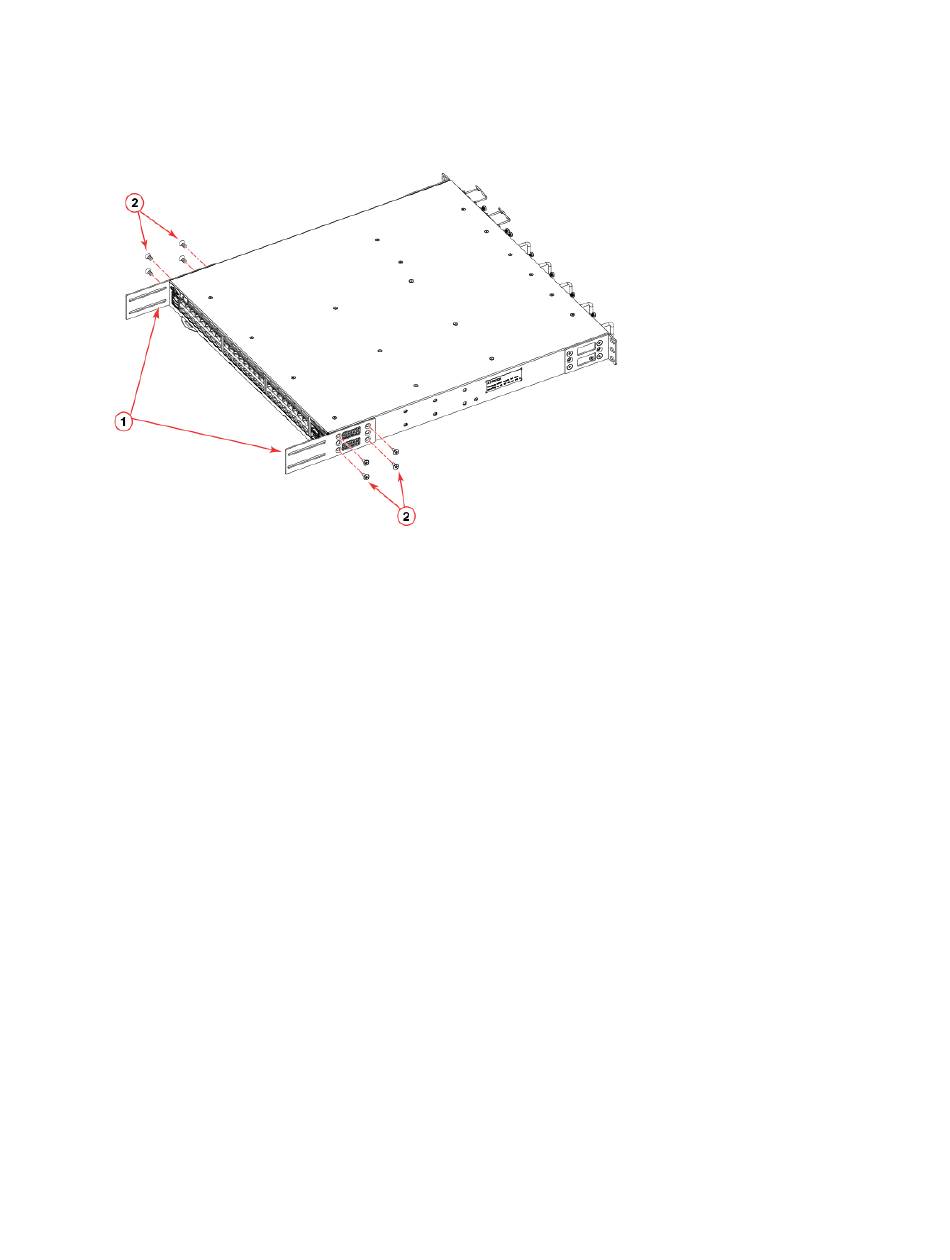

FIGURE 23 Attaching the bracket extensions to the device
1 Extension brackets
Installing the device in the rack
Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown in
the rack.
2. Attach the right front bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
3. Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
ExtremeSwitching SLX 9140 Hardware Installation Guide
9036857-00 Rev AA
Installing the Universal Four-Post Rack Kit (XBR-R000296)
2 Screws, 8-32 x 5/16-in., flathead Phillips
Figure 24, providing temporary support under the device until the rail kit is secured to
