Port-side view of the SLX 9140 switch

Port-side view of the SLX 9140 switch

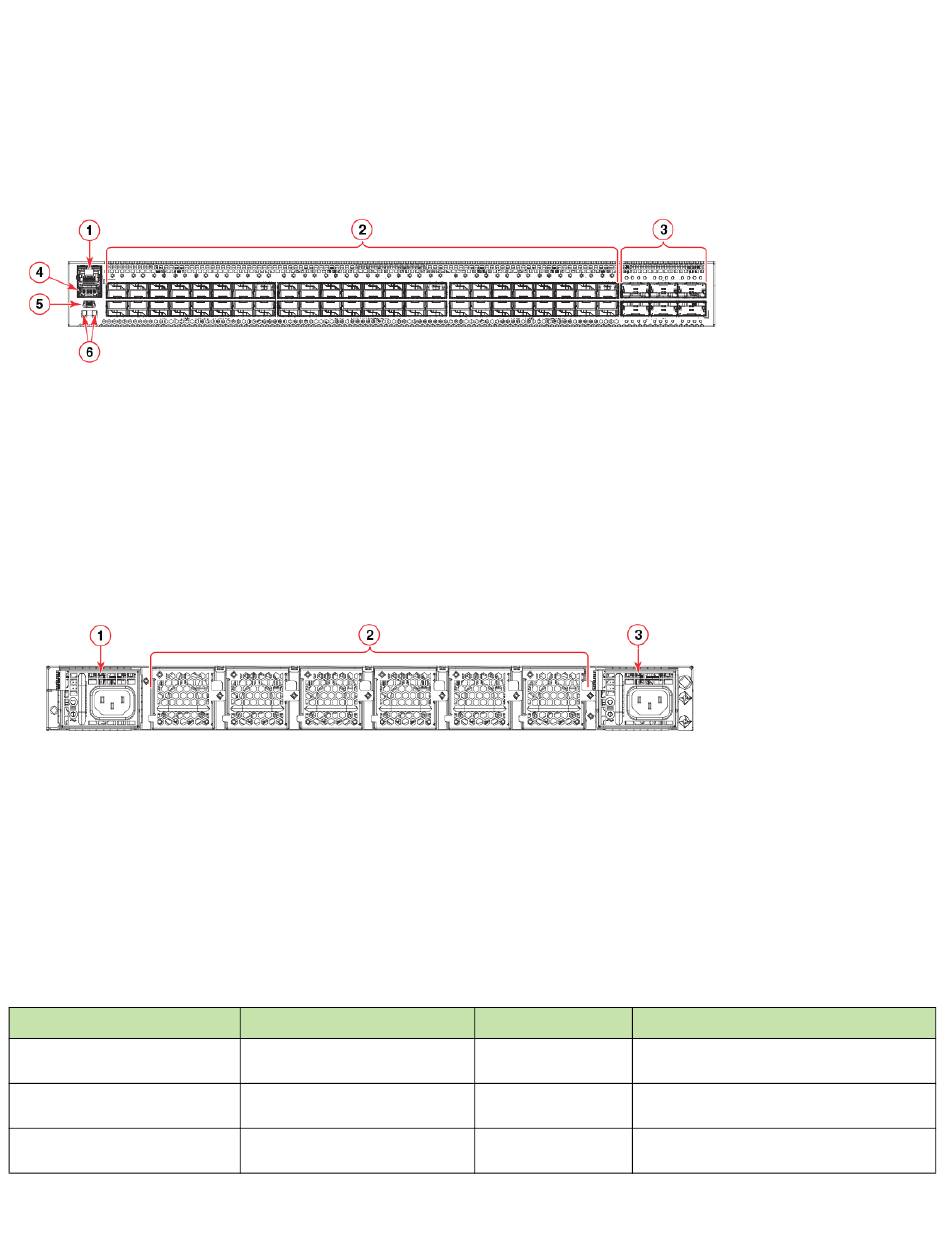

Figure 1 shows the front view of the SLX 9140 switch.
FIGURE 1 Front view of the SLX 9140 switch
1 10/100/1000Base-T RJ-45 management port
2 SFP28 ports 1- 48
3 QSFP28 ports 49- 54

Nonport-side view of the SLX 9140 switch

Figure 2 shows the rear view of the SLX 9140 switch.
FIGURE 2 Rear view of the SLX 9140
1 Power supply unit 1
2 Fans 1-6

Device management options

You can use the management functions built into the switch to monitor the port status, physical status, and other information to help you
analyze device performance and system debugging. The switch automatically performs power-on self-test (POST) each time it is turned
on.
You can manage the switch using any of the management options listed in the following table.
TABLE 1 Management options for the switch
Management tool
Command line interface (CLI)
REST or NETCONF/YANG APIs.
Standard SNMP applications
4
4 USB port (for flash drive)
5 Mini-USB console port
6 System LEDs
3 Power supply unit 2
Out-of-band support
Ethernet or serial connection
Ethernet connection
Ethernet or serial connection
In-band support Reference documents
N/A Extreme SLX-OS Command Reference for the
SLX 9140 and 9240 switches
Yes Extreme SLX-OS Management Configuration
Guide for the SLX 9140 and 9240 switches
N/A Extreme SLX-OS Management Configuration
Guide for the SLX 9140 and 9240 switches
ExtremeSwitching SLX 9140 Hardware Installation Guide
9036857-00 Rev AA
