Parts list

The following parts are provided with the four-post flush-mount rack kit (XBR-R000297).

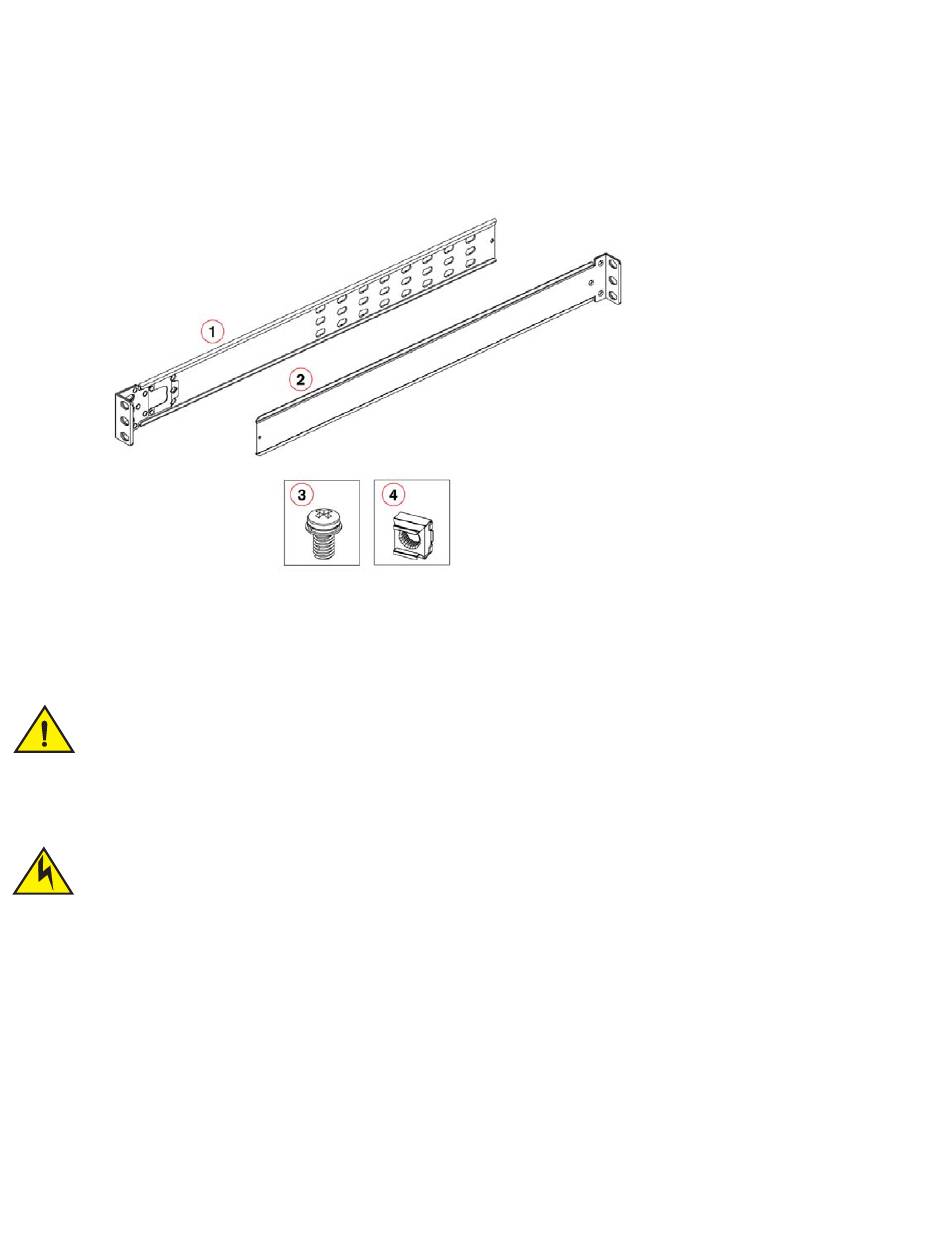

FIGURE 3 Items in the four-post flush-mount rack kit
1 Front brackets (2)
2 Rear brackets (2)
Ensure that the items listed and illustrated in
CAUTION
Use the screws specified in the procedure. Using longer screws can damage the device.

Flush-front mounting

CAUTION
The device must be turned off and disconnected from the fabric during this procedure.
Complete the following tasks to install the device in a four-post rack.
1. "Attaching the front brackets"
2. "Installing the device in the rack"
3. "Attaching the rear brackets to the rack posts"
ExtremeSwitching SLX 9140 Hardware Installation Guide
9036857-00 Rev AA
3 Screw, 10-32 x 5/8-in., panhead Phillips (8)
4 Retainer nut, 10-32 (8)
Figure 3 are included in the kit.
on page 14
on page 14
on page 15
Four-post rack mount installation (XBR-R000297)
13
