2 = Power supply slots (unpopulated)

VSP 7400-48Y Features

The front panel of the VSP 7400-48Y switch includes:
•
48 10/25-gigabit Ethernet ports capable of supporting passive copper SFP28 and active fiber
SFP28.
•
8 100-gigabit Ethernet ports capable of supporting passive copper QSFP28 and active fiber
QSFP28. These ports are configurable for 100Gb and 40Gb modes. For information about SFP28
and QSFP28 optical modules, see the
Note
Channelization is not supported on these ports.
Data Ports 55 and 56 are reserved.
•
RJ45 serial console port used to connect a terminal and perform local management.
•
USB port for access to external storage.
•
RJ45 out-of-band 10/100/1000BASE-T management Ethernet port.
•
LEDs to indicate port status and switch operating conditions. For a description of the LEDs and their
operation, see VSP 7400 Series Switch LEDs

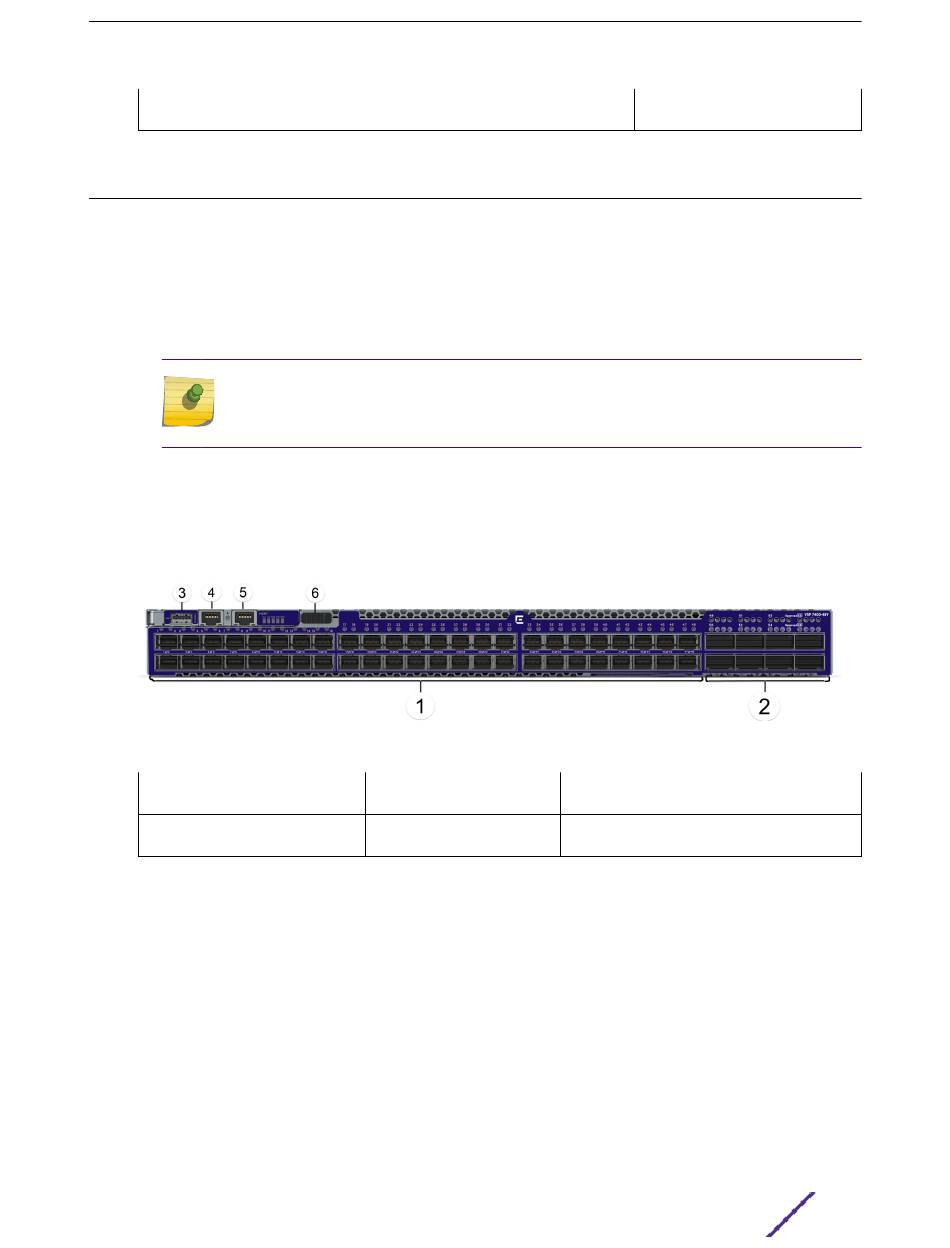

Figure 3: VSP 7400-48Y Switch - Front Panel
1 = SFP28 Ethernet ports
2 = QSFP28 Ethernet ports
* - The Management Set sliding button can be slid to the right in order to free the Management Set for
removal.
The rear panel of the VSP 7400 switch includes:
•
Two power supply bays for 750 W AC or DC power supplies.
VSP 7400 Series Switches: Hardware Installation Guide
Extreme Networks Pluggable Transceivers Installation Guide
on page 61.
3 = USB port
4 = Console port: RJ45
Overview of the VSP 7400 Switches
5 = Management port: RJ45
6 = Management Set sliding button*
