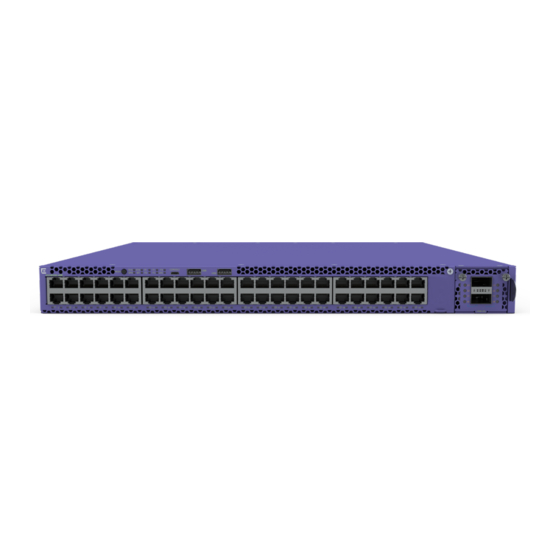

Extreme Networks VSP 4900 Series Installation Manual

Hide thumbs Also See for VSP 4900 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
VSP 4900 Series Switches: Hardware
Installation Guide
9036268-01 Rev. AG
January 2024

Advertisement

Table of Contents
loading

Related Manuals for Extreme Networks VSP 4900 Series

Summary of Contents for Extreme Networks VSP 4900 Series

  • Page 1 VSP 4900 Series Switches: Hardware Installation Guide 9036268-01 Rev. AG January 2024...
  • Page 2 Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made.

  • Page 3: Table Of Contents

    Providing Feedback..................................8 Getting Help......................................9 Subscribe to Service Notifications..........................10 Documentation and Training..............................10 Overview of the VSP 4900 Series Switch................11 Versatile Interface Module Options for VSP 4900 Series Switches............. 11 Management......................................12 Cooling........................................12 Power Supplies....................................12 Solid-state Drives....................................13 Operating Temperatures................................
  • Page 4 Replace an 1100 W AC Power Supply..........................64 Replace a 2000 W AC Power Supply..........................66 Replace Fan Modules..................................68 Replace a VIM or SSD in a VSP 4900 Series Switch............70 Monitoring the Switch.......................72 VSP 4900 Switch LEDs................................. 72 VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 5 Installing Power Supply Units and Connecting Power..................93 Selecting Power Supply Cords.............................. 94 Battery Notice..................................... 95 Battery Warning - Taiwan................................95 EMC Warnings....................................95 Taiwan BSMI Warning.................................95 China CQC Warning................................96 Japan (VCCI Class A)..................................96 Korea EMC Statement..................................96 Index..............................97 VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 6: Preface

    See the and the for information about configuring ExtremeSwitching switches. Note If the information in an installation note or release note shipped with your Extreme Networks equipment differs from the information in this guide, follow the installation or release note. Conventions This section discusses the conventions used in this guide.
  • Page 7 Key names are written in boldface, for example Ctrl or Esc. If you must press two or more keys simultaneously, the key names are linked with a plus sign (+). Example: Press Ctrl+Alt+Del VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 8: Terminology

    Providing Feedback The Information Development team at Extreme Networks has made every effort to ensure the accuracy and completeness of this document. We are always striving to improve our documentation and help you work better, so we want to hear from you.

  • Page 9: Getting Help

    Getting Help If you require assistance, contact Extreme Networks using one of the following methods: Extreme Portal Search the GTAC (Global Technical Assistance Center) knowledge base; manage support cases and service contracts;...

  • Page 10: Subscribe To Service Notifications

    Extreme Optics Compatibility Other resources such as white papers, data sheets, and case studies Extreme Networks offers product training courses, both online and in person, as well as specialized certifications. For details, visit www.extremenetworks.com/education/. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 11: Overview Of The Vsp 4900 Series Switch

    16 VSP License Options on page 16 ExtremeSwitching VSP 4900 Series switches provide support that can be deployed in either Enterprise LAN or high-density, top-of-rack high-performance enterprise and aggregation applications. The switches also provide a modular Versatile Interface Module (VIM) slot that allows a user to choose an uplink model that is suitable for their needs.

  • Page 12: Management

    Management An RJ45 serial console port on the rear panel of the VSP 4900 series switch enables you to connect a terminal and perform local management. An Ethernet management port can be used to connect the system to a out of bound management network for administration.

  • Page 13: Solid-State Drives

    Overview of the VSP 4900 Series Switch Solid-state Drives Solid-state Drives Each Solid-state Drive (SSD) provides modular storage support. VSP 4900 series switches accommodates one SSD module using a reserved slot on the rear of the switch, and is supported on VOSS release 8.1.5 and later.

  • Page 14: Vsp4900-12Mxu-12Xe Switch Features

    VSP4900-12MXU-12XE Switch Features Overview of the VSP 4900 Series Switch Figure 2: VSP 4900 Series Switch: Rear Panel 1 = Grouding lug 3 = SSD slot 5 = Power supplies   2 = RJ45 console and management ports 4 = Fan modules...

  • Page 15: Vsp4900-24S Switch Features

    3 fan modules • 2 unpopulated PSU slots • RJ-45 console and management ports Figure 6: VSP 4900 Series Switch: Rear Panel 1 = Grouding lug 3 = SSD slot 5 = Power supplies   2 = RJ45 console and management ports...

  • Page 16: Vsp4900-24Xe Switch Features

    3 fan modules • 2 unpopulated PSU slots • RJ-45 console and management ports Figure 8: VSP 4900 Series Switch: Rear Panel 1 = Grouding lug 3 = SSD slot 5 = Power supplies   2 = RJ45 console and management ports...

  • Page 17: Power Supplies For Use With Your Switch

    2000 W AC Power Supply on page 18 Each VSP 4900 Series switch runs with two replaceable internal power supply units that provide all of the power needed for the switch to operate. You can remove one power supply without interrupting the switch's operation. The VSP4900-48P model requires power supplies to be ordered separately.

  • Page 18: Ac Power Supplies

    (Green) On AC input good, DC outputs in spec. 2000 W AC Power Supply The 2000 W AC PSU-FB (models XN-ACPWR-2000W-FB and XN-ACPWR-2000W- F with front-to-back ventilation airflow) are compatible with VSP4900-48P and VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 19 Red) No AC input power connection or low AC voltage. AC input good, 54V output disabled. (Red) On AC input good, output (54V) fault. (Green) On AC input good, DC outputs in spec. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 20: Expansion Modules

    Versatile Interface Modules for the ExtremeSwitching VSP 4900 Series Switches You can install a VIM5 versatile interface module in a dedicated slot in the front panel of the ExtremeSwitching VSP 4900 Series switch to provide 10/25/40G dedicated high VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 21 For 24 and 48-port models, the VIM5 ports are 2/1, 2/2, 2/3, 2/4 depending on the VIM installed. VIM5s are ordered separately. Each VIM5 label can be found on the bottom side of the device, as seen in the following figure: Figure 9: VIM5 Label VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 22 128/256bit 128/256bit supported supported supported supported * You must set sys vim-speed to 10G or 25G for VIM5-2Y and VIM5-4YE. The default is 25G. A reboot is not necessary after setting the speed. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 23: Vim5-4X Versatile Interface Module

    The VIM5-4XE versatile interface module provides four 10-GbE (SFP+) ports, LRM/ MACsec capable. For information about the supported optical modules, refer to the most recent version Extreme Hardware/Software Compatibility and Recommendation Matrices of the VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 24: Vim5-2Y Versatile Interface Module

    For details about the sys vim-speed command, Command Line Interface Commands Reference for VOSS see the For information about the supported optical modules, refer to the most recent version Extreme Hardware/Software Compatibility and Recommendation Matrices of the VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 25: Vim5-4Y Versatile Interface Module

    CLI. For details about the configure ports partition Command Line Interface Commands Reference for VOSS command, see the For information about the supported optical modules, refer to the most recent version Extreme Hardware/Software Compatibility and Recommendation Matrices of the VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 26: Vim5-4Ye Versatile Interface Module

    A reboot is not necessary after setting the speed. For details about the sys Command Line Interface Commands Reference vim-speed command, see the for VOSS For information about the supported optical modules, refer to the most recent version Extreme Hardware/Software Compatibility and Recommendation Matrices of the VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 27: Vim5-2Q Versatile Interface Module

    For VSP4900-48P and VSP4900-24S, only the first 40-GbE (QSFP) port is supported. For information about the supported optical modules, refer to the most recent version Extreme Hardware/Software Compatibility and Recommendation Matrices of the VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 28: Solid-State Drives

    2/1, 2/2, 2/3, 2/4 in 4x10 mode Solid-state Drives Solid-state Drives (SSD) provide modular storage support. VSP 4900 Series switches accommodate one SSD module using a reserved slot on the rear of the switch, which is supported on VOSS release 8.1.5 and later.

  • Page 29: Preparing To Install

    Follow Applicable Industry Standards on page 44 Before you install your Extreme Networks equipment, careful planning can help ensure that it is used effectively and help prepare you for future growth. Only qualified service personnel should install, maintain, or remove a switch, chassis, or its components.

  • Page 30: Operating Environment Requirements

    This section lists resources for obtaining additional information. For information about major building codes, consult the following organization: International Code Council (ICC) 5203 Leesburg Pike Falls Church, VA 22041 USA www.iccsafe.org VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 31: Set Up The Wiring Closet

    Make sure that your system is easily accessible for installation and service. See Rack Specifications and Recommendations on page 33 for more information. • Use appropriate AC or DC power, power distribution, and grounding for your specific installation. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 32: Controlling The Temperature

    Alternately, you can restart the system immediately by removing and then restoring all line power to the system. Safeguards are built into all Extreme Networks switches and power supply units to minimize the risk of fire. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 33: Controlling The Humidity Level

    The rack must meet earthquake safety requirements equal to that of the installed chassis. • The mounting holes should be flush with the rails to accommodate the chassis. • The rack should support approximately 270 kg (600 lb). VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 34: Ground The Rack

    The rack should be attached to the wiring closet floor with 9.5 mm (3/8 in) lag screws or equivalent hardware. The floor under the rack should be level within 5 mm (3/16 in). Use a floor-leveling cement compound if necessary or bolt the racks to the floor as shown. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 35: Evaluate And Meet Cable Requirements

    • Assign a unique identification number to each equipment rack. • Identify all wiring closets by labeling the front panel of your Extreme Networks equipment and other hardware. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 36: Install Cable

    Before connecting any category 5 UTP cable to the switch, discharge ESD from the cable by plugging the RJ45 connector into a LAN static discharge device or use an equivalent method. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 37 Fiber optic cable must be handled carefully during installation. Every cable has a minimum bend radius and fibers will be damaged if the cables are bent too sharply. It is also important not to stretch the cable during installation. Ensure VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 38 Table 18: Cable Distances and Types Standard Media Type MHz•km Maximum Rating Distance (Meters) 1000BASE-SX 50/125 µm multimode fiber (850nm optical window) 50/125 µm multimode fiber 62.5/125 µm multimode fiber 62.5/125 µm multimode fiber VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 39 10/125 µm single-mode fiber – 10,000 (1310nm optical window) 1 Proprietary to Extreme Networks. Connections between two Extreme Networks 1000BASE-LX interfaces that use 10/125 µm single-mode fiber can use a maximum distance of 10,000 meters. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 40 Table 20: Extreme Networks 40Gb Direct-Attach Cables Cable Type Part Number Length QSFP+ to QSFP+ Direct attach cable AA1404037-E6 0.5 meter AA1404029-E6 1 meter AA1404030-E6 2 meters AA1404031-E6 3 meters AA1404032-E6 5 meters VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 41: Use Rj45 Connector Jackets

    Preparing to Install Use RJ45 Connector Jackets Table 20: Extreme Networks 40Gb Direct-Attach Cables (continued) Cable Type Part Number Length QSFP+ to QSFP+ Active optical cable AA1404028-E6 10 meters active optical QSFP+ to 4xSFP+ Breakout cable AA1404033-E6 1 meter AA1404035-E6...

  • Page 42: Meet Power Requirements

    Most ExtremeSwitching switches do not ship with power cords. Visit www.extremenetworks.com/product/powercords/ for information on selecting and purchasing the correct power cords for use with specific Extreme Networks equipment. The web page provides specifications for power cords in each country so that you can purchase cords locally.

  • Page 43: Ups (Uninterruptible Power Supply) Requirements

    VA = Volts x Amperes 3. Add the VA from all the pieces of equipment together to find the total VA requirement. To determine the minimum volt-amperage requirements for your UPS, add 30% to the total. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 44: Follow Applicable Industry Standards

    UPS transition time is sometimes called UPS transition times vary between UPS models and implementations, but shorter transition times are preferred. For Extreme Networks stacking products, a UPS transition time of 20 milliseconds or less ensures optimum performance and minimizes service interruptions.

  • Page 45: Installing A Switch

    Turn on the Switch on page 52 Connect Network Interface Cables on page 52 Before you attempt to install or remove an Extreme Networks switch, read the precautions in Safety Considerations for Installing Switches on page 46. Extreme Networks switches fit into standard 19-inch equipment racks.

  • Page 46: Safety Considerations For Installing Switches

    Ensure that you have followed the guidance in "Preparing to Install," and ensure that you have the appropriate people and tools on hand. Installing Extreme Networks switches is easiest when there are two people to maneuver the switch and attach mounting hardware.

  • Page 47: Attach The Switch To A Rack Or Cabinet

    The following figures illustrate how to attach the brackets for two common mounting options. • Figure 20 shows a mid-mount configuration using a short mounting bracket. • Figure 21 shows a front-mount configuration using a short mounting bracket. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 48 3. Attach the rack rails to both sides of the switch using rack screws (rack screws provided). 4. Attach the rack ears to the front rack posts, using the screws (rack post screws not provided). VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 49: Installing Optional Components

    ExtremeSwitching switches support the use of pluggable transceivers and cables in the SFP+, SFP28, QSFP+, and QSFP28 formats. For a list of the optical components supported with ExtremeSwitching devices, see the Extreme Optics website. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 50: Pluggable Transceiver Modules

    Direct-attach copper and fiber cables provide connections between unpopulated SFP+, SFP28, QSFP+, and QSFP28 ports. Installing Internal AC Power Supplies The following AC internal power supplies (PSUs) are available for VSP 4900 Series switches: 350 W AC PSU Part numbers XN-ACPWR-350W-FB and 10953 are compatible with VSP 4900 switch models.
  • Page 51 An AC power cord is not included with the AC power supply. You can purchase AC power cords for use in the US and Canada from Extreme Networks or from your local supplier. The cord must meet the requirements listed in...

  • Page 52: Turn On The Switch

    An AC power cord is not included with the AC power supply. You can purchase AC power cords for use in the US and Canada from Extreme Networks or from your local supplier. The cord must meet the requirements listed in...
  • Page 53 Installing a Switch Connect Network Interface Cables 6. Dress and secure the cable bundle to provide appropriate strain relief and protection against bends and kinks. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 54: Activating And Verifying The Switch

    Before logging in, verify that the switch LEDs are on (solid green or blinking green) and that it is connected to a management console as described in Connect the Switch to a Management Console on page 54. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 55 4. Follow the steps for provisioning and verifying the switch in Quick Start Configuration for VOSS . The switch is ready for use. Configuring Security . To configure security, see Documentation Reference . To configure other switch features, see VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 56: Installing Expansion Modules

    • Flat head screwdriver Caution Extreme Networks VIMs are not hot-swappable. Disconnect power to the switch before removing an installed VIM or installing a new VIM. To install a versatile interface module, follow these steps: 1. Attach the ESD wrist strap to your wrist and connect the metal end to an appropriate ground point on the rack.

  • Page 57: Install An Ssd Module

    SSD modules. To install an SSD module, follow these steps: 1. Attach the ESD wrist strap to your wrist and connect the metal end to an appropriate ground point on the rack. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 58 5. Carefully slide the SSD module into the slot on the rear panel until it is firmly in place. Figure 27: Insert SSD Module 6. Secure the SSD module using the screws provided. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 59: Remove Switches From Service

    For two-post installations, carefully slide the switch out of the rack. • For four-post installations, carefully slide the switch forward out of the cabinet and off the rear mounting brackets. See the following figures. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 60 3. Place the switch on a secure, flat surface. 4. Using a #2 Phillips screwdriver, remove the front mounting brackets from the sides of the switch. 5. For four-post installations, remove the rear mounting brackets from the rear rack posts. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 61 Remove Switches from Service Remove the Switch from the Rack If you plan to use the switch again later, we recommend storing it with the mounting brackets attached. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 62: Removing And Replacing Components

    1. Disconnect the AC power cord from the wall outlet and from the power supply. 2. Note the orientation of the installed power supply, and the location of the latching tab at the right of the unit. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 63 5. Verify that the replacement power supply is oriented the same way as the unit you removed, and has the same airflow direction. 6. Carefully slide the power supply all the way into the power supply bay, as shown in Figure VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 64: Replace An 1100 W Ac Power Supply

    1. Disconnect the AC power cord from the wall outlet and from the power supply. 2. Note the orientation of the installed power supply, and the location of the latching tab at the right of the unit. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 65 Unoccupied bays must always be covered to maintain proper system ventilation and EMI levels. 5. Verify that the replacement power supply is oriented the same way as the unit you removed, and has the same airflow direction. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 66: Replace A 2000 W Ac Power Supply

    You need the following tools and materials to replace an ExtremeSwitching 2000 W AC power supply: • Thermal protective gloves • AC power cord, if you will not be re-using the cord from the removed power supply VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 67 Unoccupied bays must always be covered to maintain proper system ventilation and EMI levels. 5. Verify that the replacement power supply is oriented the same way as the unit you removed, and has the same airflow direction. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 68: Replace Fan Modules

    The operating-system software cannot display the airflow direction. Before you begin, have the replacement fan module on hand so that you can complete the replacement promptly. The switch can overheat if left without adequate cooling for an extended time. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 69 Fans with front-to-back airflow have red tabs and are labeled Air Out. 4. Carefully slide the replacement fan module into the switch. Push until the fan module snaps into place. The fan will automatically start to operate. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 70: Replace A Vim Or Ssd In A Vsp 4900 Series Switch

    5. Install the VIM or SSD in the switch: a. Carefully slide the module into the switch. b. Insert and tighten the retaining screws you removed in step 3. Figure 36: Tighten Screws on the Inserted VIM5 Module VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 71 Replace a VIM or SSD in a VSP 4900 Series Switch Figure 37: Tighten Screws on the Inserted SSD Module 1 = retaining screw locations VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 72: Monitoring The Switch

    VIM5 Port 25-32 or 49-56 The following figure shows the two alternate mode LEDs for VSP 4900 switches: SYS and SPD. The Mode button is used to cycle through two display modes for the port VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 73: Port Leds In Default (Sys) Mode

    After one press of the Mode button (see Figure 38 on page 73), the port LEDs will enter the SPD Display Mode, indicated by the SPD LED. SPD mode is used to help determine VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 74: Versatile Interface Modules (Vim5) Port Leds

    SPD mode is used to help determine the operational speed of a port. Color and blink pattern indicate speeds, as referenced by the following table: Table 25: VIM5 Port LEDs in SPD Mode Color/State Speed Steady green 10Gbps Blinking green 40Gbps VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 75 40G port status/speed or first 10G port’s status/ LED 1 speed when channelized LED 2 status/speed for second 10G port when channelized LED 3 status/speed for third 10G port when channelized LED 4 status/speed for fourth 10G port when channelized VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 76: Technical Specifications

    Supplies on page 87 This section lists technical specifications for the hardware products described in this document. VSP 4900 Series Switches Technical Specifications VSP 4900 Series includes the following switches: • VSP4900-48P switch • VSP4900-12MXU-12XE switch VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 77: Technical Specifications

    Height: 1.57 inches (3.99 cm) Width: 1.92 inches (4.88 cm) Length: 6.16 inches (15.64 cm) VIM5-4X 0.40 lb (0.18 kg) Height: 1.57 inches (3.99 cm) Width: 1.92 inches (4.88 cm) Length: 6.16 inches (15.64 cm) VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 78 Height: 1.57 inches (3.99 cm) Width: 1.92 inches (4.88 cm) Length: 6.16 inches (15.64 cm) VIM5-4YE 18.77 lb (8.51 kg) Height: 1.57 inches (3.99 cm) Width: 1.92 inches (4.88 cm) Length: 6.16 inches (15.64 cm) VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 79: Fan Speed And Temperature Variation

    2 Bystander Sound pressure is presented for comparison to other products measured using Bystander Sound Pressure* 3 Declared Sound Power is presented in accordance with ISO 7779:2010(E), ISO 9296:2010 per ETSI/EN 300 753:2012-01 VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 80: Power Options

    XN-ACPWR- xxx-FB PSUs with the switch. The following table lists supported PSU combinations when dual redundant PSUs are used on the switch. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 81 Table 39: CPU, Memory CPU/Memory VSP4900-48P, VSP4900-24S VSP4900-24XE , VSP4900-12MXU-12XE 2-core, 1.5GHz x86 CPU 4-core, 2.1GHz x86 CPU 2 GB DDR4 memory 8 GB DDR4 memory 8 GB eMMC Flash Memory 12MB packet buffer per chip VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 82: Standards And Environmental Data

    EN 55032:2015+AC:2016, Class A standards EN 55024:2010+A1:2015 Class A includes IEC 61000-4-2, 3, 4, 5, 6, 11 EN 61000-3-2:2014 (Harmonics) EN 61000-3-3:2013 (Flicker) ETSI EN 300 386 V2.1.1 (2016-07) (EMC Telecommunications) 2014/35/EU Low Voltage Directive VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 83 IEEE 802.3at PoE Plus IEEE 802.3az (EEE) Table 44: Environmental Data Environmental EN/ETSI 300 019-2-1 v2.1.2 (2000 - 2009) - Class 1.2 Storage standards EN/ETSI 300 019-2-2 v2.1.2 (1999 - 09) - Class 2.3 Transportation VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 84: 350 W Ac Power Supplies Technical Specifications

    350 W load Maximum inrush current 45A at Max 264 VAC at 25C with cold start Output 54 V, 13.2 A max, 350 W Power supply input socket and IEC/EN 60320-1/C16 AC input receptacles cord VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 85: Ac Power Supplies Technical Specifications

    Power Cord Requirements for AC-Powered Switches and AC Power Supplies on page 87 Efficiency Minimum efficiency: 88% at maximum power output Table 50: Environmental Specifications Operating temperature -10°C to 50°C (normal operation) Storage temperature -40°C to 70°C VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 86: 1100 W Ac Power Supplies Technical Specifications

    Minimum efficiency: 88% at maximum power output Table 53: Environmental Specifications Operating temperature 0°C to 50°C (normal operation) Storage temperature -40°C to 70°C Operating humidity 93% relative humidity, non-condensing at 30C 30 m/s 2 (3 G) Operational shock VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 87: 2000 W Ac Power Supply Technical Specifications

    -40°C to 70°C Operating humidity 93% relative humidity, non-condensing at 30C Operational shock Power Cord Requirements for AC-Powered Switches and AC Power Supplies An AC power cord is not included with the AC power supply. VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 88 “notch” to ensure the proper orientation when plugged in. These cords are of 3x14 AWG. For details about obtaining AC power cords for use in your country, refer to http:// www.extremenetworks.com/product/powercords/. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 89: Safety And Regulatory Information

    Only trained and qualified service personnel (as defined in IEC 60950-1 and AS/NZS 3260) should install, replace, or perform service to Extreme Networks switches and their components. Qualified personnel have read all related installation manuals, have the...

  • Page 90: Considerations Before Installing

    Make sure that your power supplies meet the site DC power or AC power requirements of all the network equipment. • Racks for Extreme Networks equipment must be permanently attached to the floor. Failure to stabilize the rack can cause the rack to tip over when the equipment is removed for servicing.

  • Page 91: Maintenance Safety

    Fiber Optic Ports and Optical Safety The following safety warnings apply to all optical devices used in Extreme Networks equipment that are removable or directly installed in an I/O module or chassis system. VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 92: Gbic, Sfp (Mini-Gbic), Qsfp+, Xenpak, And Xfp Regulatory Compliance

    Never alter, modify, or change an optical device in any way other than suggested in this document. GBIC, SFP (Mini-GBIC), QSFP+, XENPAK, and XFP Regulatory Compliance Extreme Networks pluggable optical modules and direct-attach cables meet the following regulatory requirements: •...

  • Page 93: Installing Power Supply Units And Connecting Power

    Do not attempt to open the power supply enclosure for any reason; the power supply does not contain user-serviceable parts. In the event of failure, return the defective power supply to Extreme Networks for repair or replacement. • Do not put your hand into an open power supply bay when a power supply is not present.

  • Page 94: Selecting Power Supply Cords

    When you install DC power supplies or connect DC power: • Extreme Networks DC power supplies do not have switches for turning the unit on and off. Make sure that the DC circuit is de-energized before connecting or disconnecting the DC power cord at the DC input power socket.

  • Page 95: Battery Notice

    Il y a risque d’explosion si la pile est remplacée par un type de pile incorrect. Éliminez les piles usées en conformité aux règlements locaux d'élimination des piles. Battery Warning - Taiwan EMC Warnings Taiwan BSMI Warning VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 96: China Cqc Warning

    This is a Class A product based on the standard of the VCCI Council. If this equipment is used in a domestic environment, radio interference may occur, in which case the user may be required to take corrective actions. Korea EMC Statement VSP 4900 Series Switches: Hardware Installation Guide...

  • Page 97: Index

    DC power brackets, for mounting in rack 59 connecting to switch 52 building codes 30 design standards 44 Building Industry Consulting Service International. distances see BICSI cables 38 documentation feedback 8 location 10 cabinet VSP 4900 Series Switches: Hardware Installation Guide...
  • Page 98 VSP 4900 switch 79 management port feedback 8 connecting to switch 54 fiber optic cable settings 54 bend radius 37 VSP 4900 series 11–13 connecting 52 mounting brackets handling 37 removing 59 installing 37 first switch login 54 , see radio frequency interference (RFI)
  • Page 99 Index plenum-rated cable 36 pluggable transceivers , see optical transceivers safety port option cards precautions when installing 46 types 20 requirements 89 ports service access to the rack 34 console port settings 54 settings management 54 for management console 54 power signal quality 41 connecting to switch 52...
  • Page 100 VIM5-4YE module features 26 virtualization license 16 VOSS initial login 54 license options 16 VSP 4900 series switches 715 W AC power supply 62 acoustic noise 79 fan speed 79 features 11–13 power specifications 81 power supply unit (PSU) 80 specifications 76, 79, 80, 82 VSP4900-48P switch 11–13...
