Inset modesty panel
between two underworksurface
storage cabinets.
See page 2.
2/3-height modesty panel
attached to an adjustable-height leg.
See page 8.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2018 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

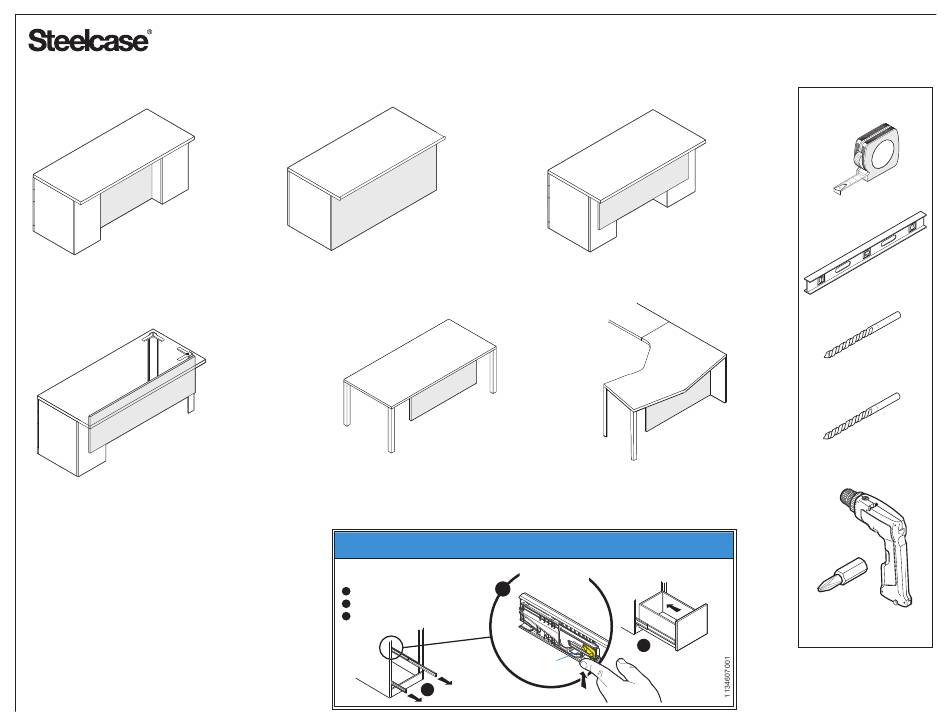

Elective Elements, Walden - Fixed Modesty Panel used on
a Freestanding Desk, Meeting or Extended Bullet Worksurface
Full-height modesty panel
sits proud of the storage unit
back or support back.
See page 4.
Floating 2/3-height modesty panel
attached to a Desk Table.
See page 10.
Steps for correct installation of
soft close drawers
1
Pull LH and RH suspensions to full extents
2
Find and disengage rear posts, LH and RH
3
Align drawer suspensions and install
1
2/3-height modesty panel
sits proud of the underworksurface
storage back panels.
See page 6.
Floating 2/3-height modesty panel
attached to a Meeting or Extended
Bullet Worksurface. See page 10.
NOTICE
Soft close mechanism
can be damaged if this
step is skipped.
2
3
RH post is
shown here
in yellow
3/16" Drill Bit
5/32" Drill Bit
Page 1 of 10
P/N 939500227
Doc # 108322 Rev J
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Elective Elements Fixed Modesty Panel
Summary of Contents for Steelcase Elective Elements Fixed Modesty Panel
- Page 1 Bullet Worksurface. See page 10. NOTICE If you have a problem, question, or request, call Steps for correct installation of Soft close mechanism your local dealer, or Steelcase Line 1 at soft close drawers can be damaged if this step is skipped. 888.STEELCASE (888.783.3522) Pull LH and RH suspensions to full extents for immediate action by people who want to help you.
- Page 2 INSET MODESTY PANEL Turn worksurface over onto a clean, soft surface. Locate holes in pedestal end panels and drill through. Install pedestals onto worksurface as shown. For more details, refer to assembly direction 939500237. Locate (2) pilot holes (4) screws per pedestal in each pedestal, then through holes in stretchers, drill them through.
- Page 3 Lower modesty panel into position between pedestals, then install onto worksurface. A) Install connecting bolts into holes in the worksurface. (2) screws per pedestal, B) Lower modesty panel into position. # 10-12 x 1" pan head C) Insert cam locks and secure with a half turn.
- Page 4 49.0" Drill pilot holes .197" (5mm) dia. x .512" (13 mm) deep 24.5" 2.3" .472" 1.675" 59.9" FULL HEIGHT MODESTY PANEL 66.25" 90.75" Locate predrilled holes in worksurface, then install modesty panel. A) Install connecting bolts into holes in the worksurface. FRONT OF WORKSURFACE B) Lower modesty panel into position.
-
Page 5: Rear View
3/16" Drill Bit Drill (2) holes through pedestal back panels in the approximate locations Locate (2) holes shown. in stretchers in back of pedestal as shown, then drill through back Position pedestals onto worksurface panel of pedestal. so that fronts are flush with front and side edges of worksurface and flush with modesty panel at the rear. - Page 6 2/3 HEIGHT MODESTY PANEL Locate (4) holes Remove drawers (if any) from in stretchers in back pedestals. of pedestal as shown, then drill through back panel of pedestal. Drill (4) holes through pedestal back panels in the approximate locations shown. REAR VIEW Fit finished back panels onto pedestals as shown.
- Page 7 CONNECTING BOLT Locate predrilled holes in worksurface, then install modesty panel. A) Install connecting bolts into holes in the worksurface. B) Lower modesty panel into position. C) Insert cam locks and secure with a half turn. Install pedestals onto worksurface as shown. For more Be certain to use details, refer to assembly the rear set of holes.
- Page 8 2/3-HEIGHT MODESTY PANEL attached to an ADJUSTABLE-HEIGHT LEG Align pedestal (when drawer fronts Carefully turn worksurface over are in) flush with front and sides of worksurface. onto clean, soft surface. Remove drawers, then install pedestal to worksurface as shown. #10 x 1-1/4" Refer to assembly direction 939500237 Align rear leg with for more detailed information.
- Page 9 OUTER EXTRUSION Remove outer extrusion from leg. Drilled Position outer extrusion in brackets so that Hole Align it is aligned with top of modesty panel. outer extrusion flush with Using the hole in top bracket as a guide, modesty panel. drill a 5/32"...
- Page 10 For Meeting and Extended Bullet Worksurfaces 2/3 HEIGHT MODESTY PANEL the modesty panel can "float", or be located in attached to a MEETING or EXTENDED various positions to meet the needs of the user. BULLET WORKSURFACE or a DESK TABLE Carefully turn worksurface over onto clean, soft surface.
