Steelcase Elective Elements Fixed Modesty Panel Manual page 8

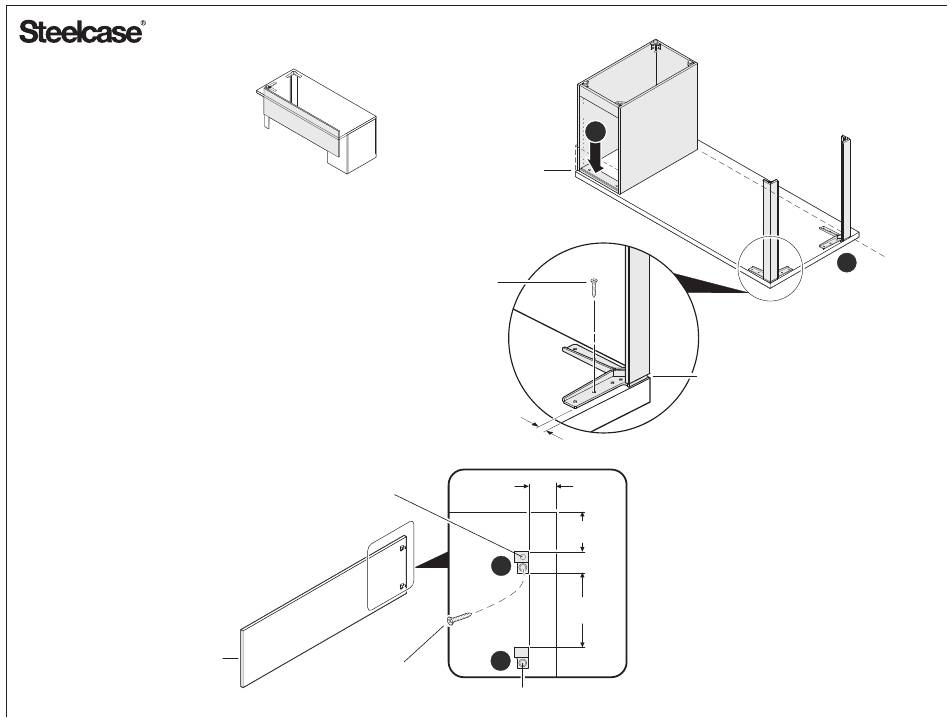

2/3-HEIGHT MODESTY PANEL
attached to an ADJUSTABLE-HEIGHT LEG
1.
Carefully turn worksurface over
onto clean, soft surface.
2.
Remove drawers, then install pedestal
to worksurface as shown.
Refer to assembly direction 939500237
for more detailed information.
3.
Install legs as shown.
Refer to assembly direction 939500235
for more detailed information.
4.
Use 5/8" flat head screws to attach (2)
brackets to modesty panel.
A) Install top bracket to dimensions shown.
B) Locate bottom bracket approximately
9" (229 mm) below top bracket.
2/3-HEIGHT
MODESTY PANEL
Align pedestal
(when drawer fronts
are in) flush with front
and sides of worksurface.
#10 x 1-1/4"
flat head screws
(10 per bracket).
3/4"
(18.4 mm)
(both sides)
NOTE: The top bracket
must have two holes.
4a
4b
#10 x .625"
flat head black
NOTE: The bottom bracket
may have one or two holes.
2
Outer surface
of leg will align
with corner of
worksurface.
1-7/8"
(48 mm)
3-1/2"
(89 mm)
9"
(229 mm)
3
Align rear leg with
pedestal back panel.
Page 8 of 10
P/N 939500227
Doc # 108322 Rev J
