FULL HEIGHT MODESTY PANEL

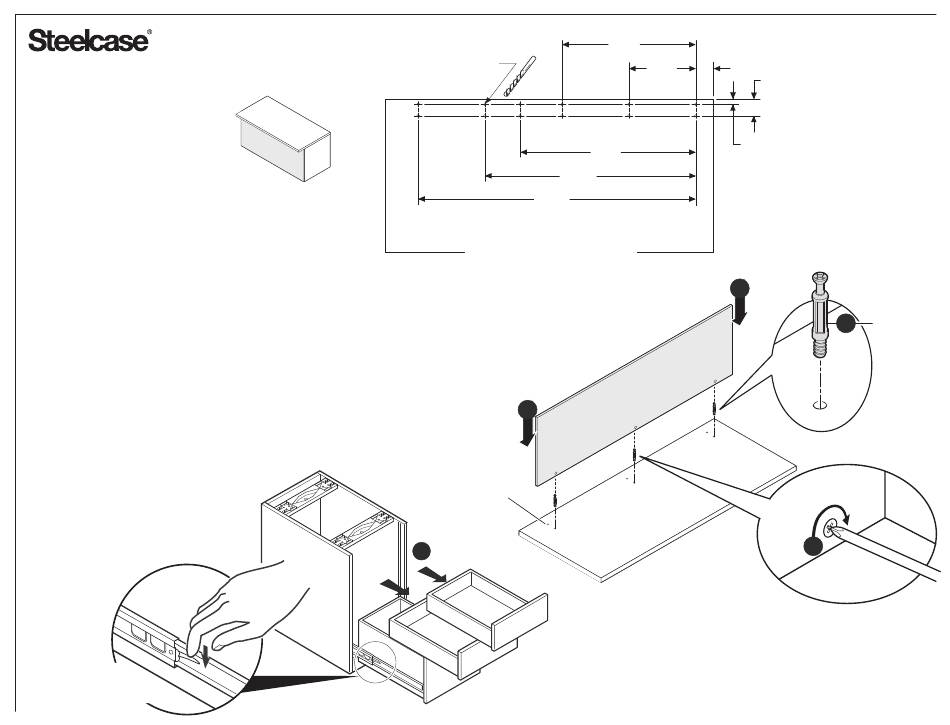

1.
Locate predrilled holes in
worksurface, then install modesty panel.
A) Install connecting bolts into holes in
the worksurface.
B) Lower modesty panel into position.
C) Insert cam locks and secure with a
half turn.
2.
Remove drawers (if any) from
pedestals.
To remove drawers
push lever down on one
side, and up on the other.
Drill pilot holes .197" (5mm) dia.
x .512" (13 mm) deep
66.25"
90.75"
FRONT OF WORKSURFACE
NOTE: If your modesty panel is not the same length as your
worksurface, or if you ordered the wrong combination of
worksurface/modesty, you will need to drill your own
cam pin holes in the bottom of the worksurface.
Use the dimensions shown above.
1b
Be certain to use
this set of holes.
2
49.0"
24.5" 2.3"
.472"
1.675"
59.9"
1b
1a
CONNECTING
BOLT
1c
